Sentra SE-R, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle (Re4F04B)
›
On Board Diagnostic System Description
›
Consult-II
›
DTC Work Support Mode
DTC Work Support Mode

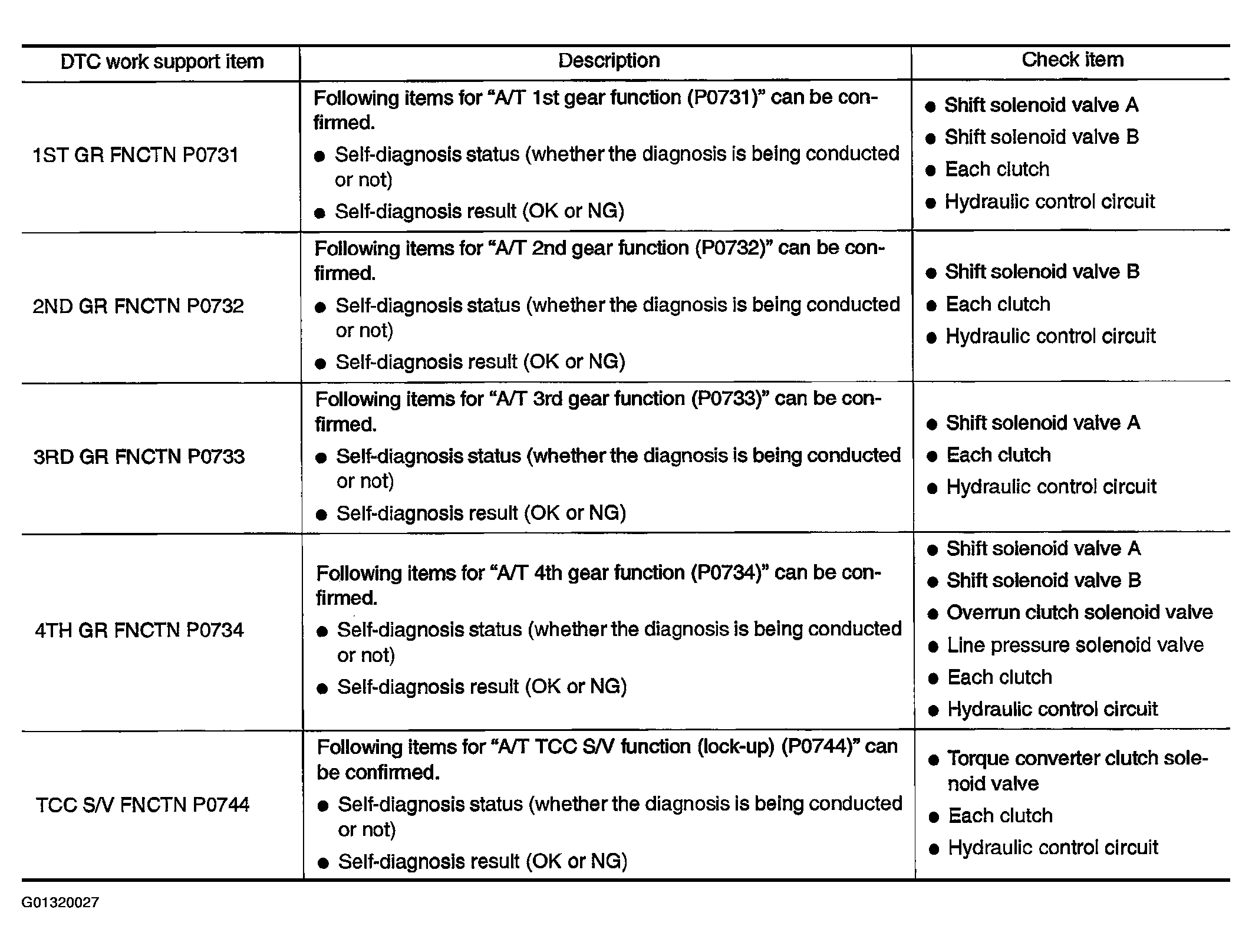

Fig 1: DTC Work Support Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
