Control Valve Assembly and Accumulator: Installation

Set manual shaft in Neutral, then align manual plate with groove in manual valve.
After installing control valve assembly, make sure that selector lever can be moved to all positions.

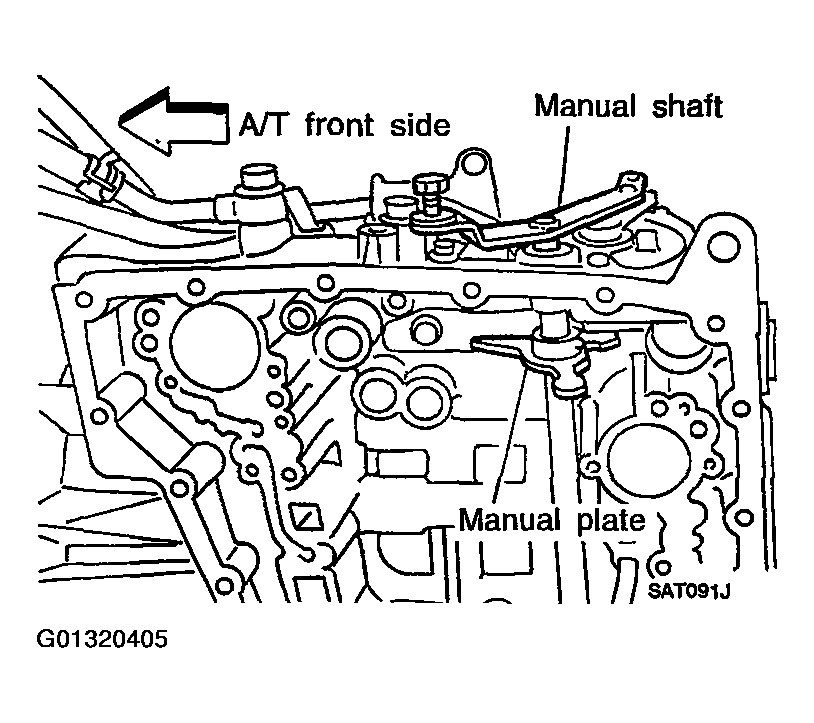

Fig 1: Setting Manual Shaft In Neutral Position
Courtesy of NISSAN MOTOR CO., U.S.A.
