Automatic Transaxle (Re4F04B)
›
Overall System
›
Hydraulic Control System
Hydraulic Control System

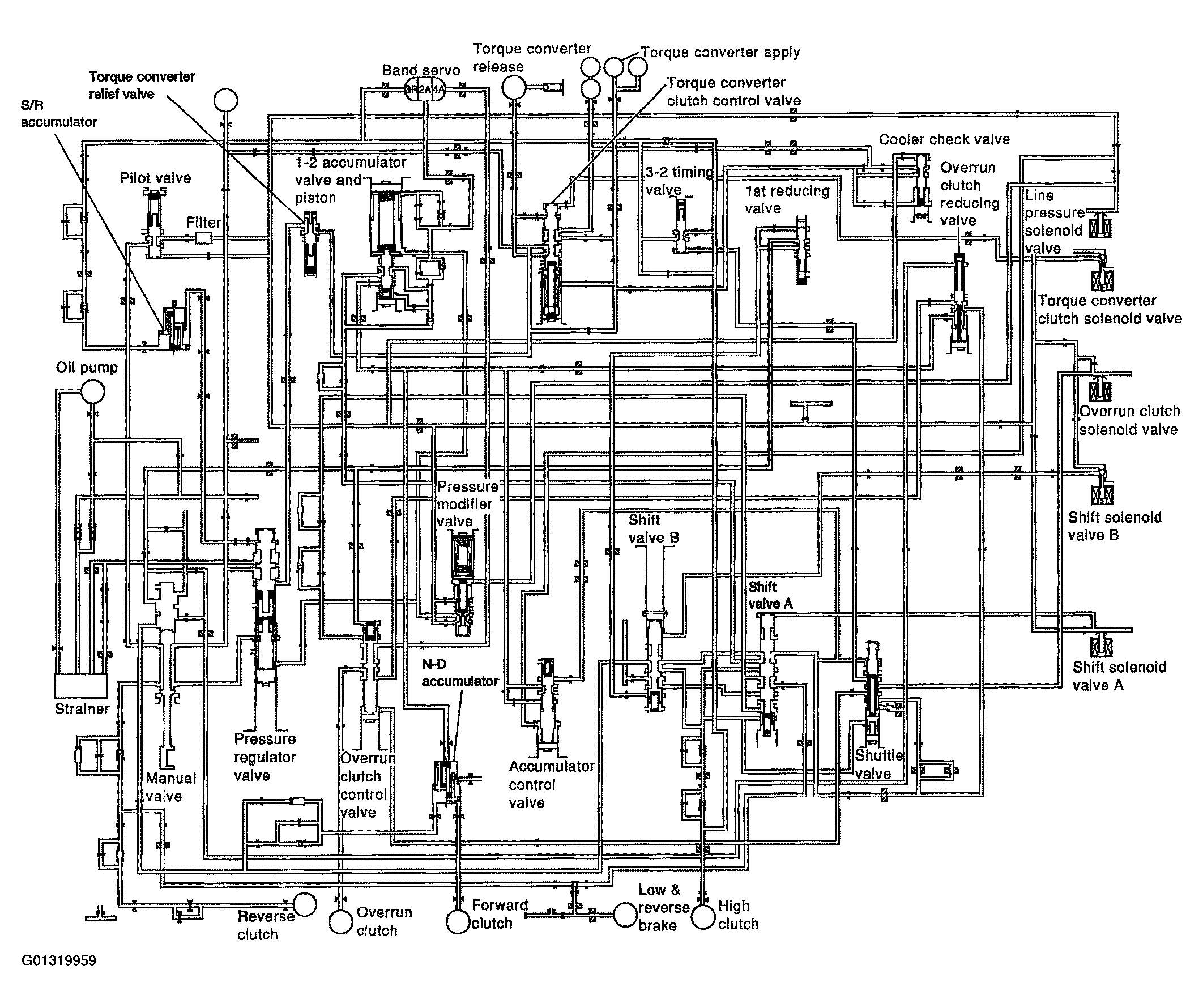

Fig 1: Automatic Transaxle System Hydraulic Control Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
