Lower and Upper Bodies

Check to see that retainer plates are properly positioned in lower body.

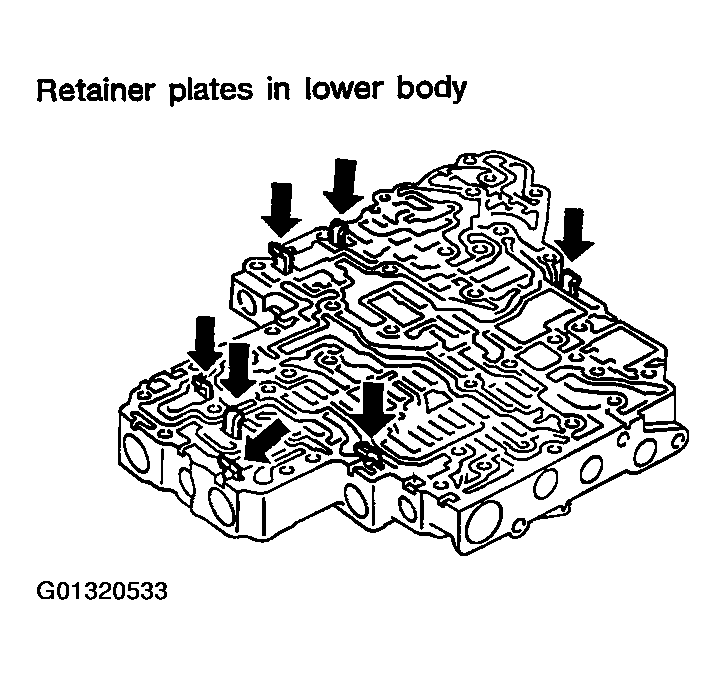

Fig 1: Identifying Retainer Plates Position In Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that retainer plates are properly positioned in upper body.
Be careful not to lose these parts.

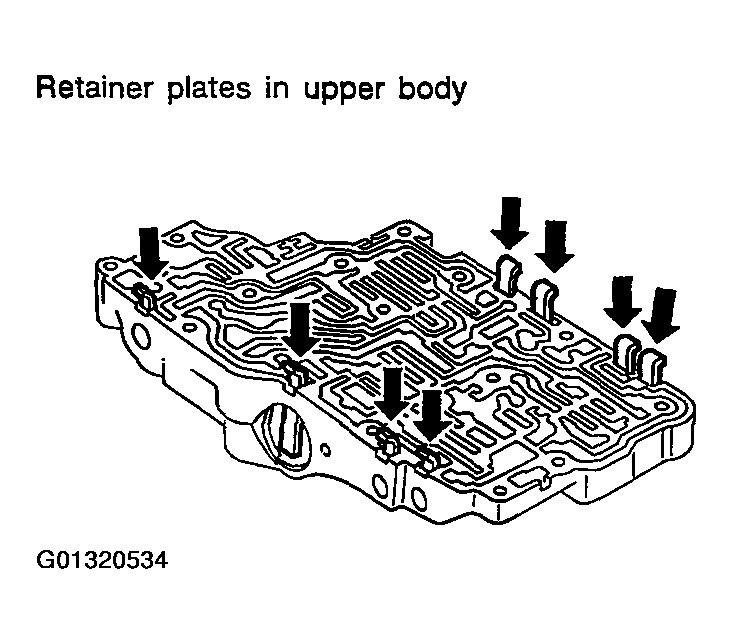

Fig 2: Identifying Retainer Plates Position In Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
