High Clutch: Components

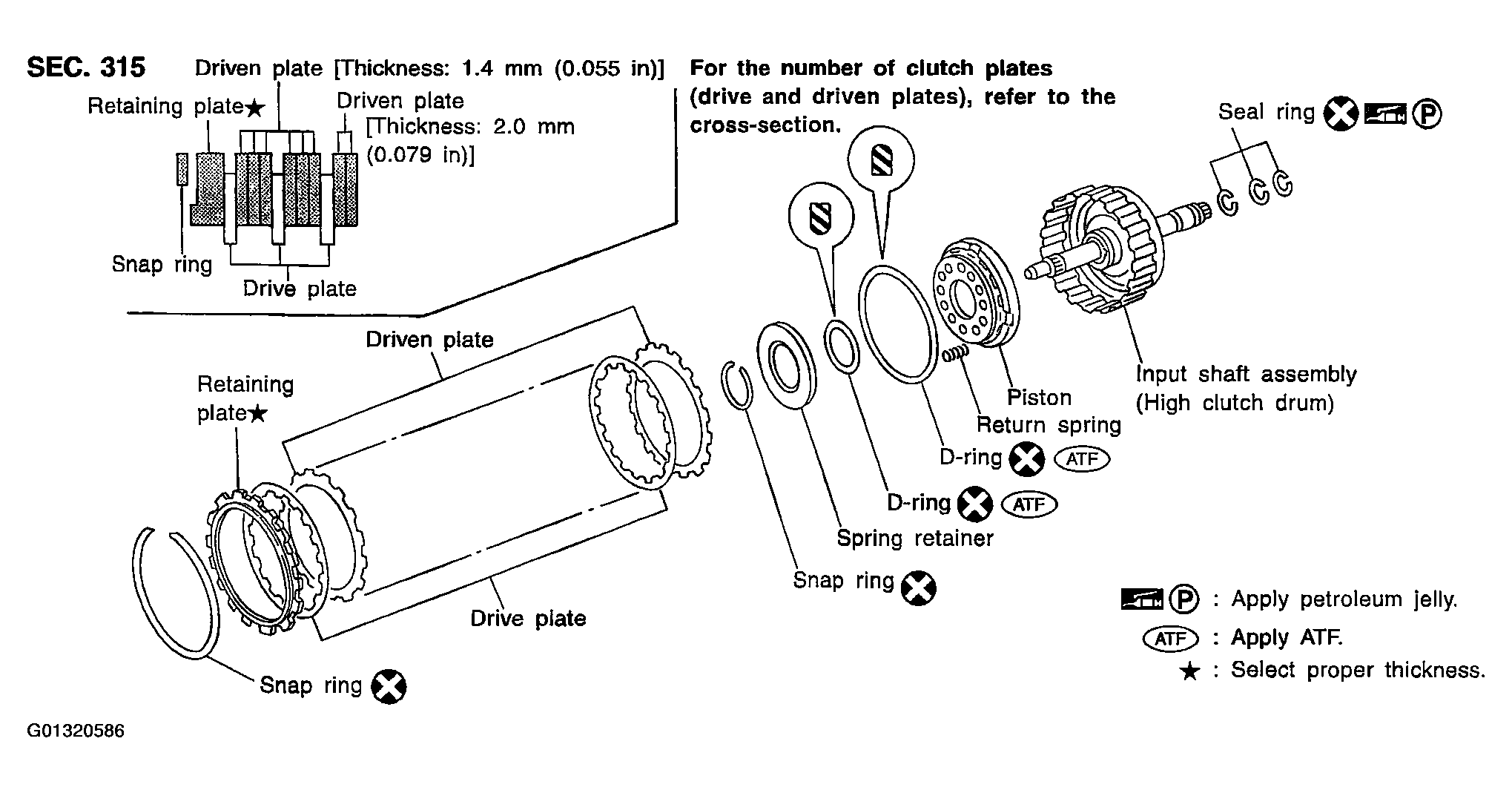

Fig 1: Exploded View Of High Clutch Components
G01320586Courtesy of NISSAN MOTOR CO., U.S.A.
