System Tests

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For Smart Entrance Control Unit, see SMART ENTRANCE CONTROL UNIT & TIME CONTROL UNIT - SENTRA article.

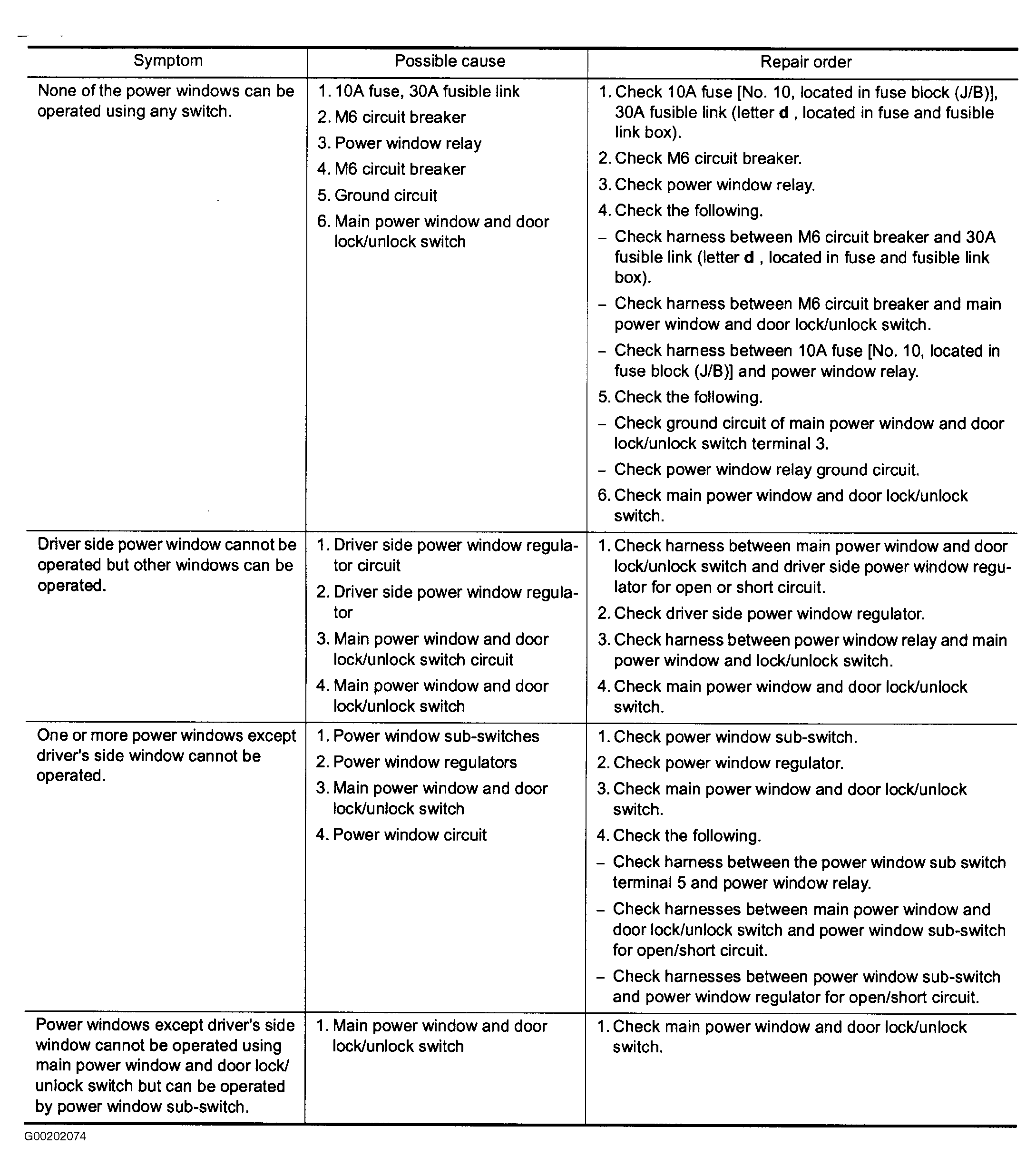

Fig 1: Identifying Symptom Chart

G00202074

Courtesy of NISSAN MOTOR CO., U.S.A.
