Diagnostic Procedure

For diagnostic procedure, see Fig 1 .

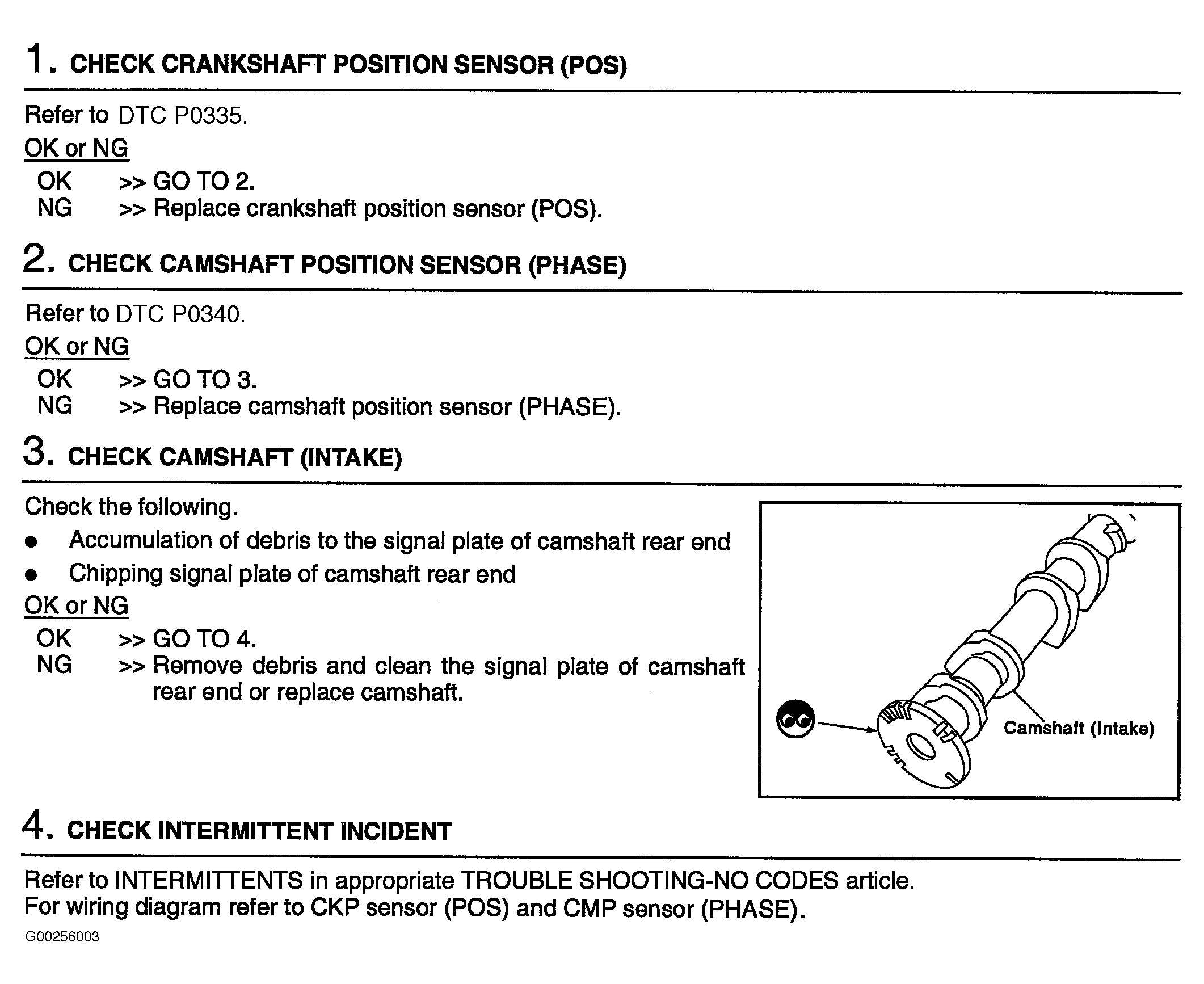

Fig 1: DTC P0011 Diagnostic Procedure
G00256003Courtesy of NISSAN MOTOR CO., U.S.A.
