Diagnostic Procedure

For the diagnostic procedure, see Fig 1 and Fig 2 .

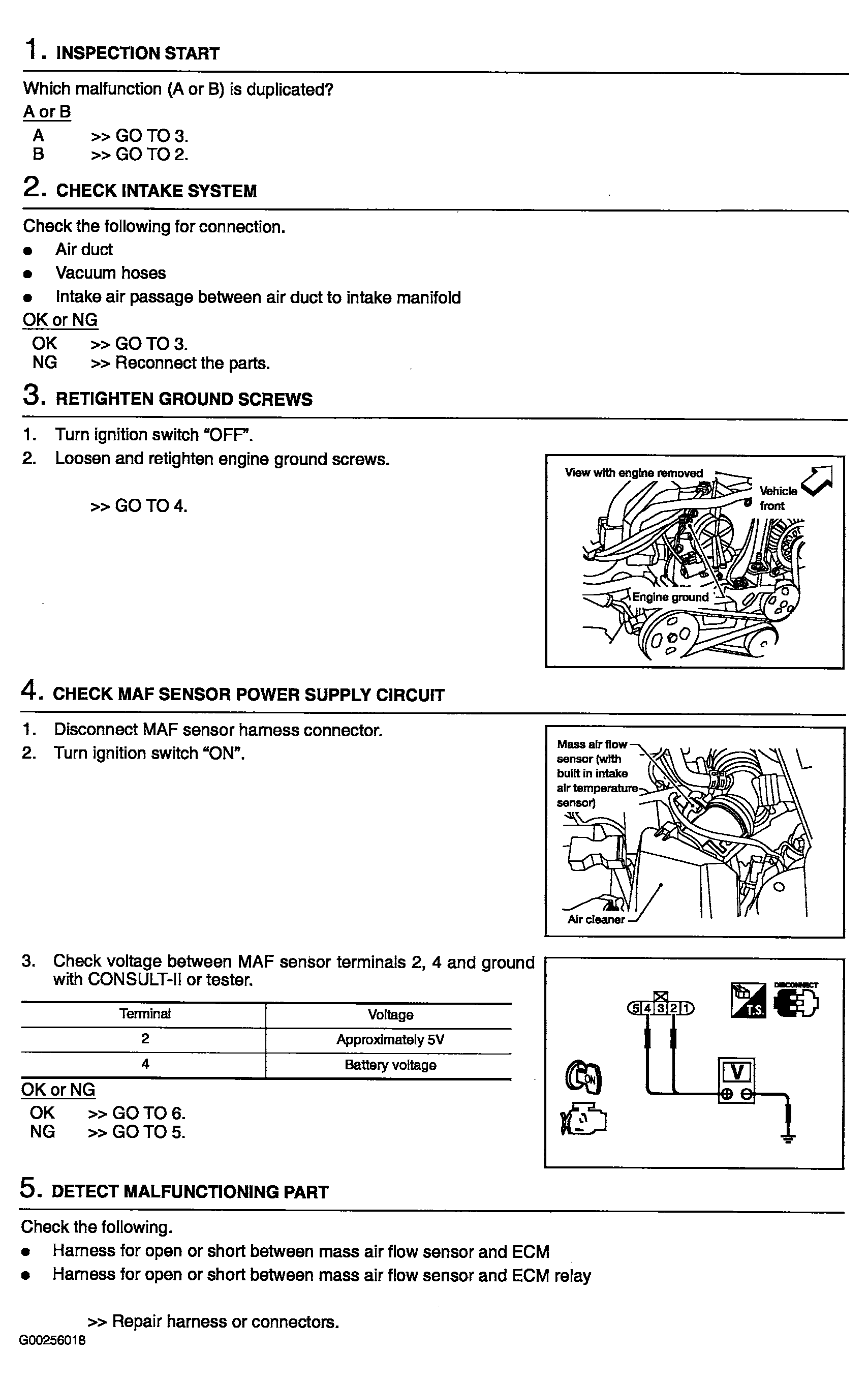

Fig 1: DTC P0101 Diagnostic Procedure (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

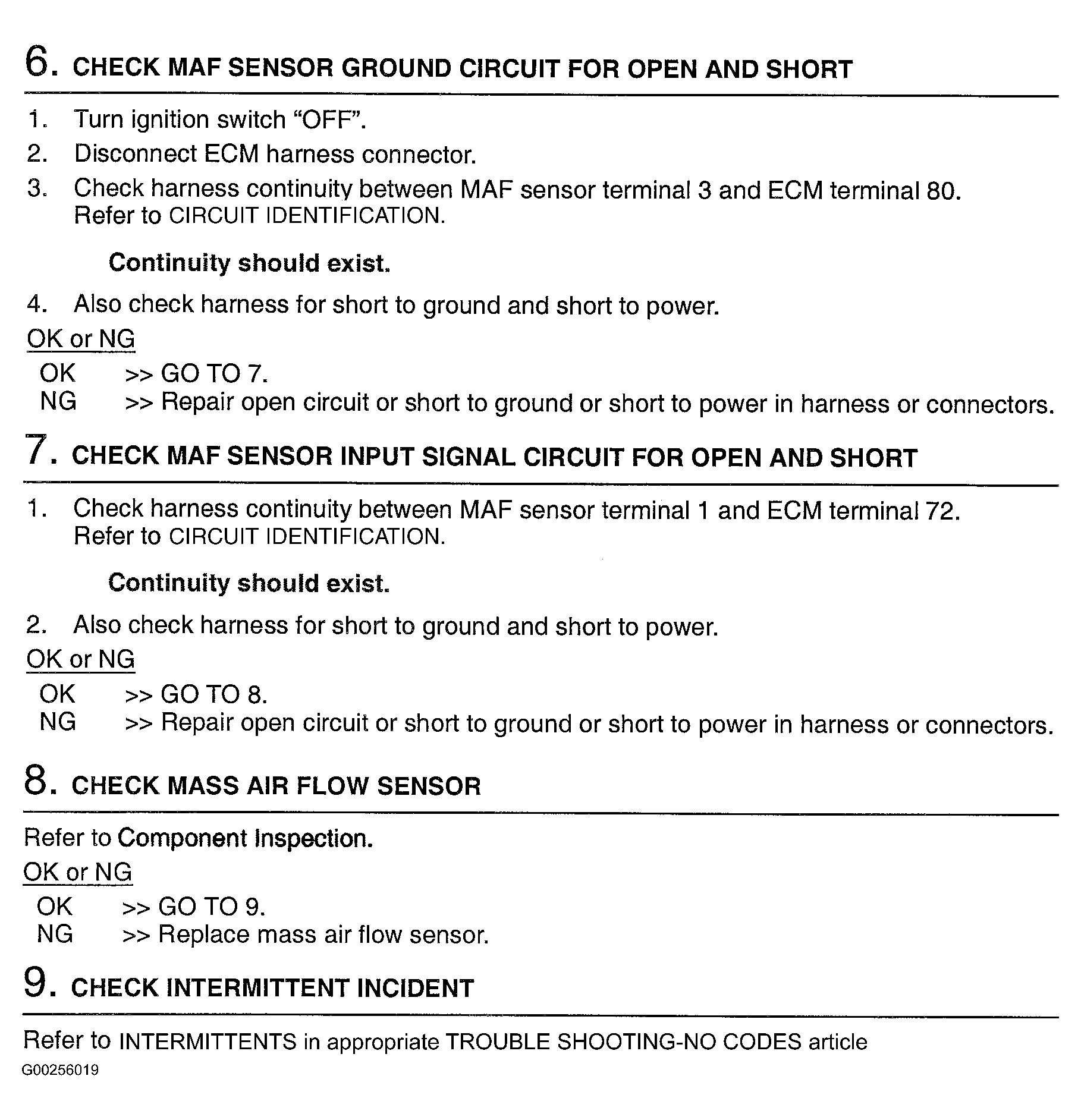

Fig 2: DTC P0101 Diagnostic Procedure (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
