Overall Function Check

For the overall function check, see Fig 1 .

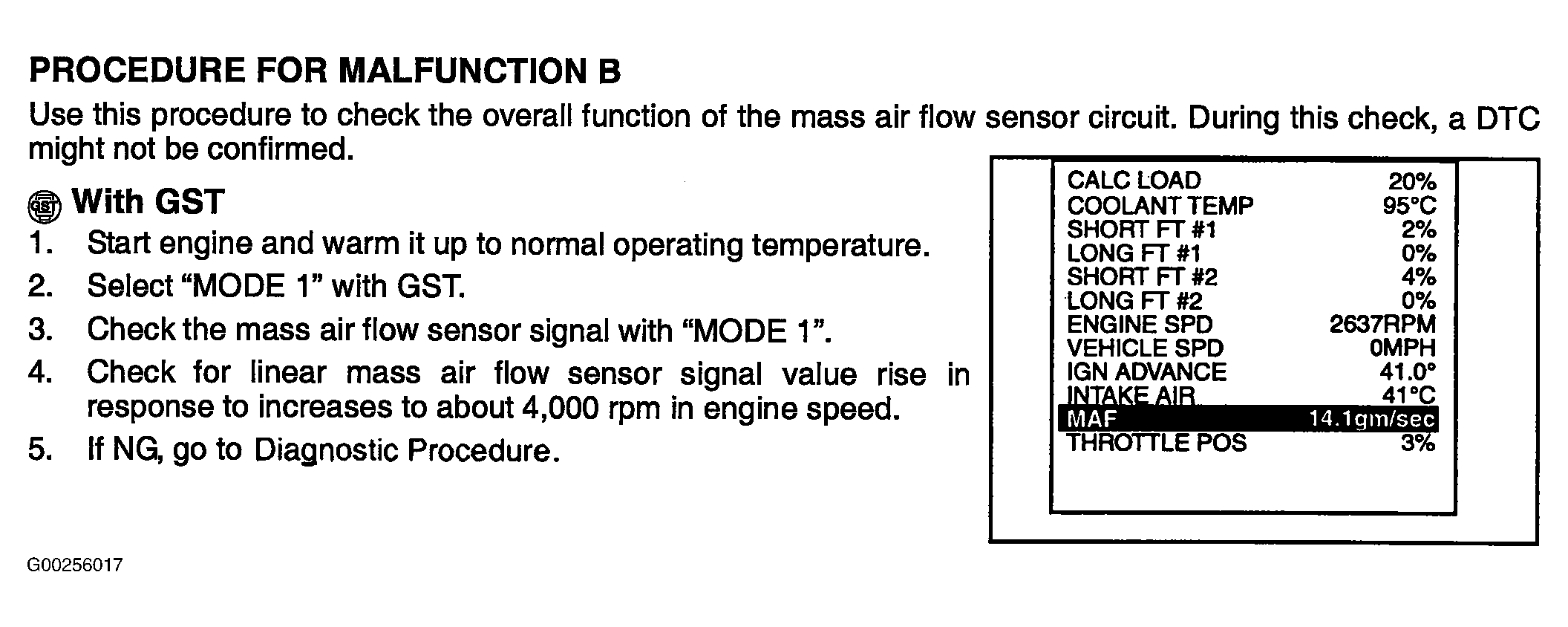

Fig 1: DTC P0101 Overall Function Check
G00256017Courtesy of NISSAN MOTOR CO., U.S.A.
