CONSULT-II Reference Values

For CONSULT-II reference values, see Fig 1 .

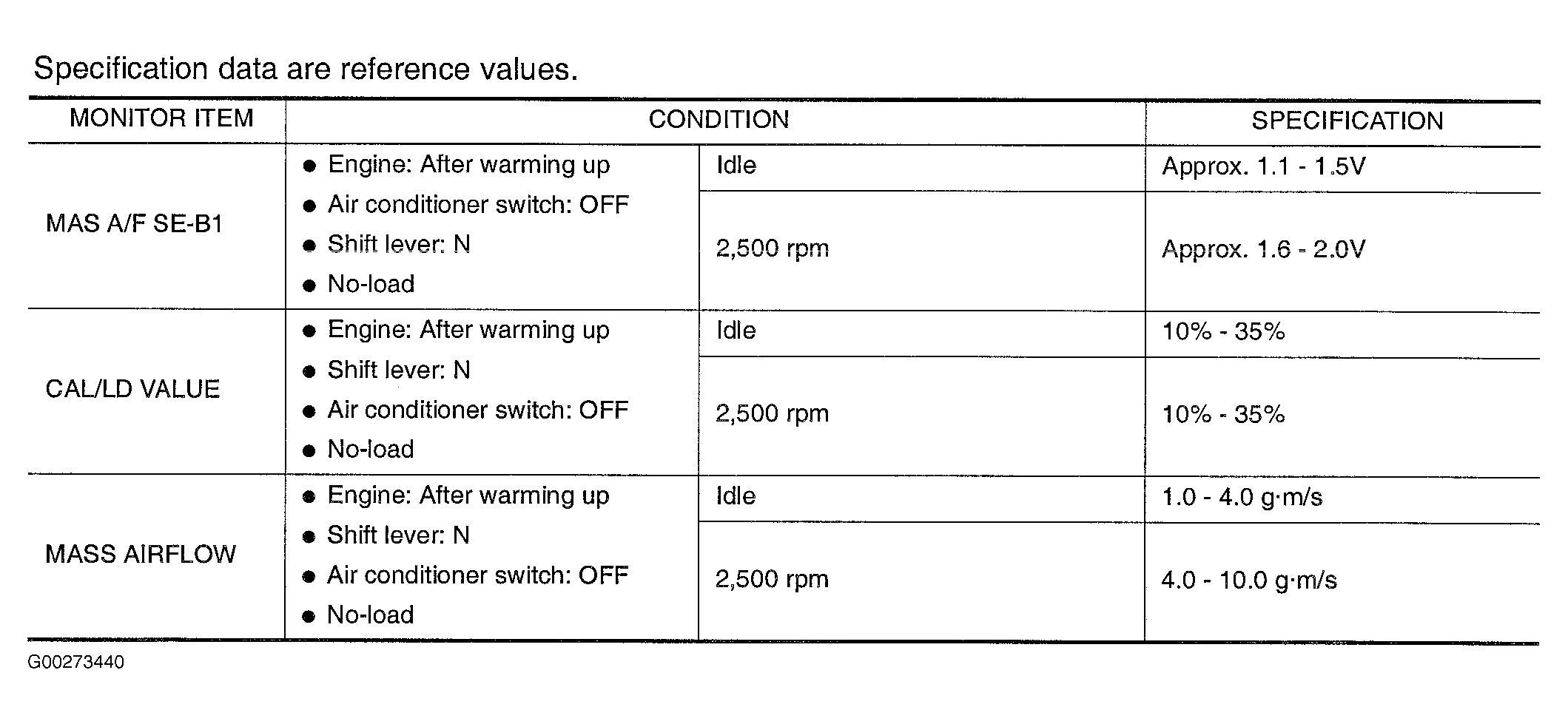

Fig 1: DTCs P0102 & P0103 CONSULT-II Reference Value In Data Monitor Mode

G00273440

Courtesy of NISSAN MOTOR CO., U.S.A.
