Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 6 .

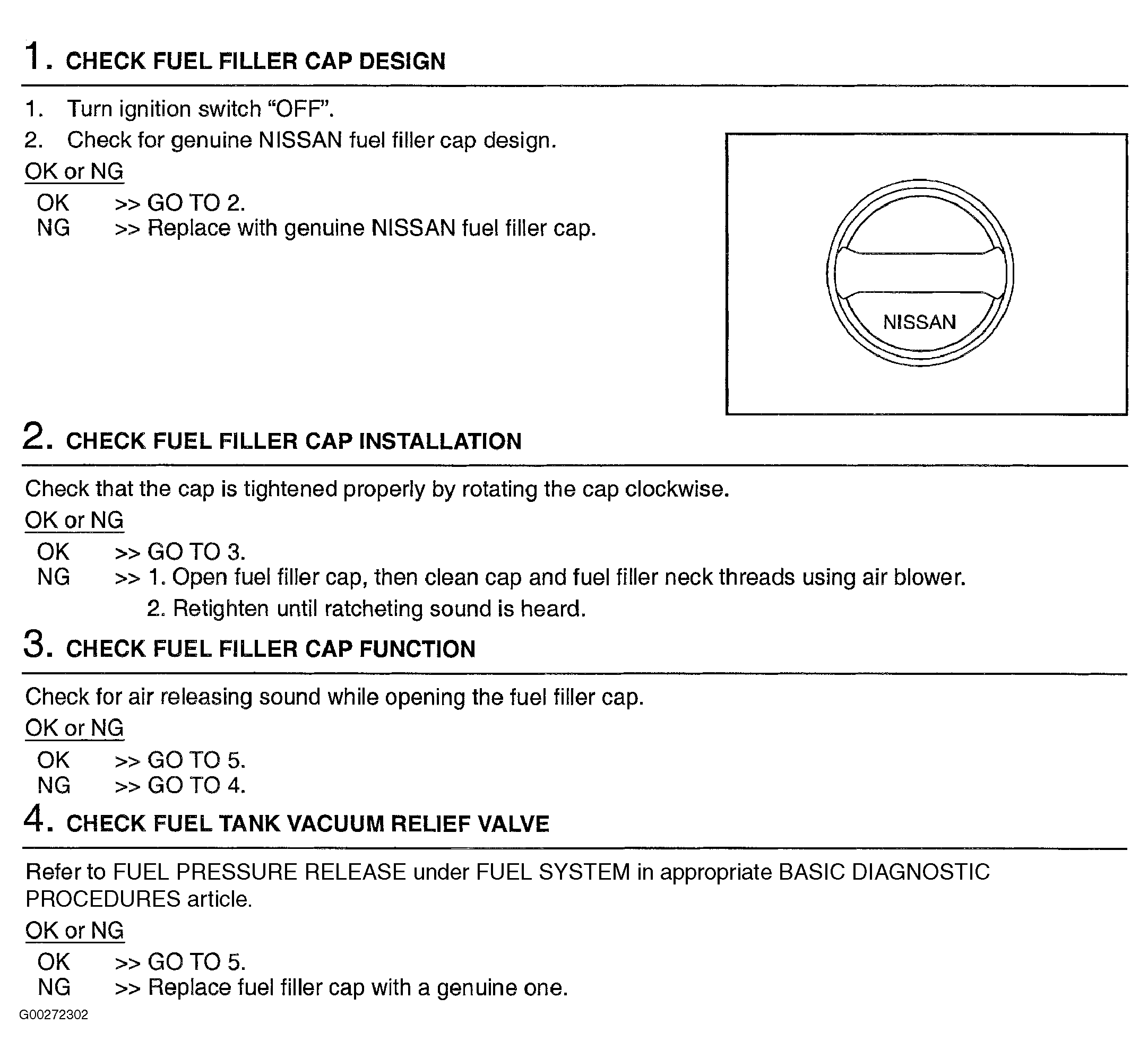

Fig 1: DTC P0455 Diagnostic Procedure (Steps 1-4)

Courtesy of NISSAN MOTOR CO., U.S.A.

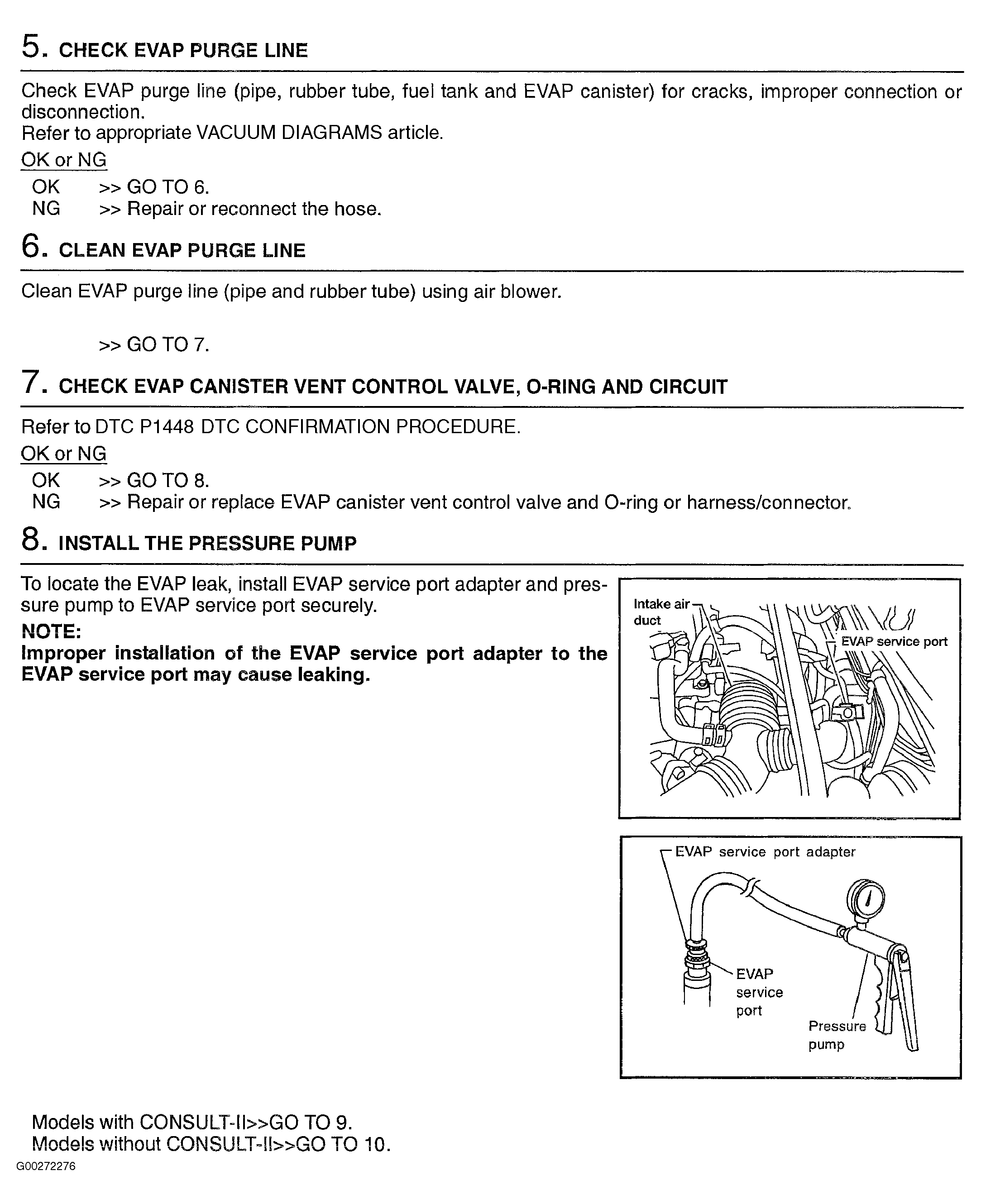

Fig 2: DTC P0455 Diagnostic Procedure (Steps 5-8)

Courtesy of NISSAN MOTOR CO., U.S.A.

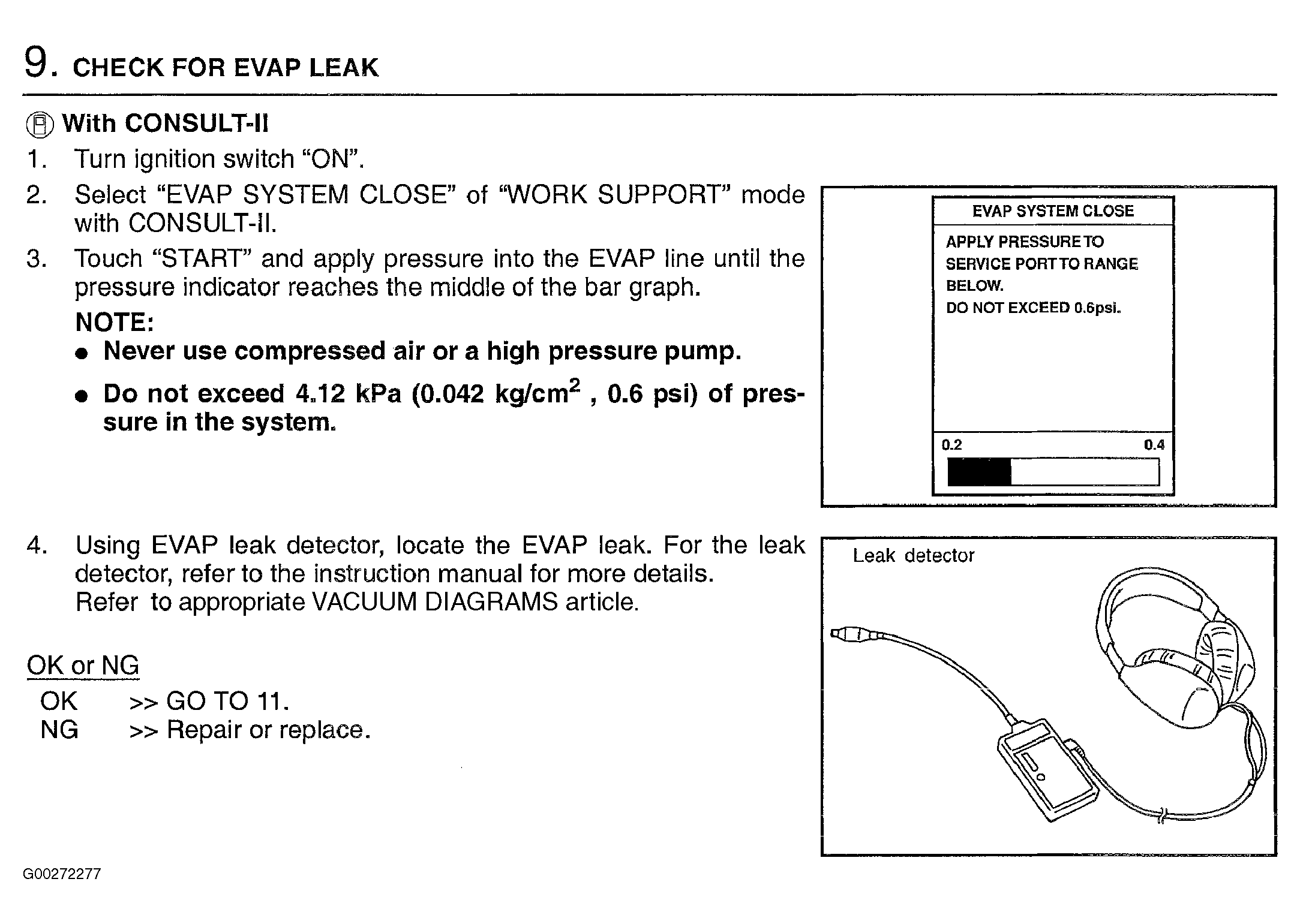

Fig 3: DTC P0455 Diagnostic Procedure (Step 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

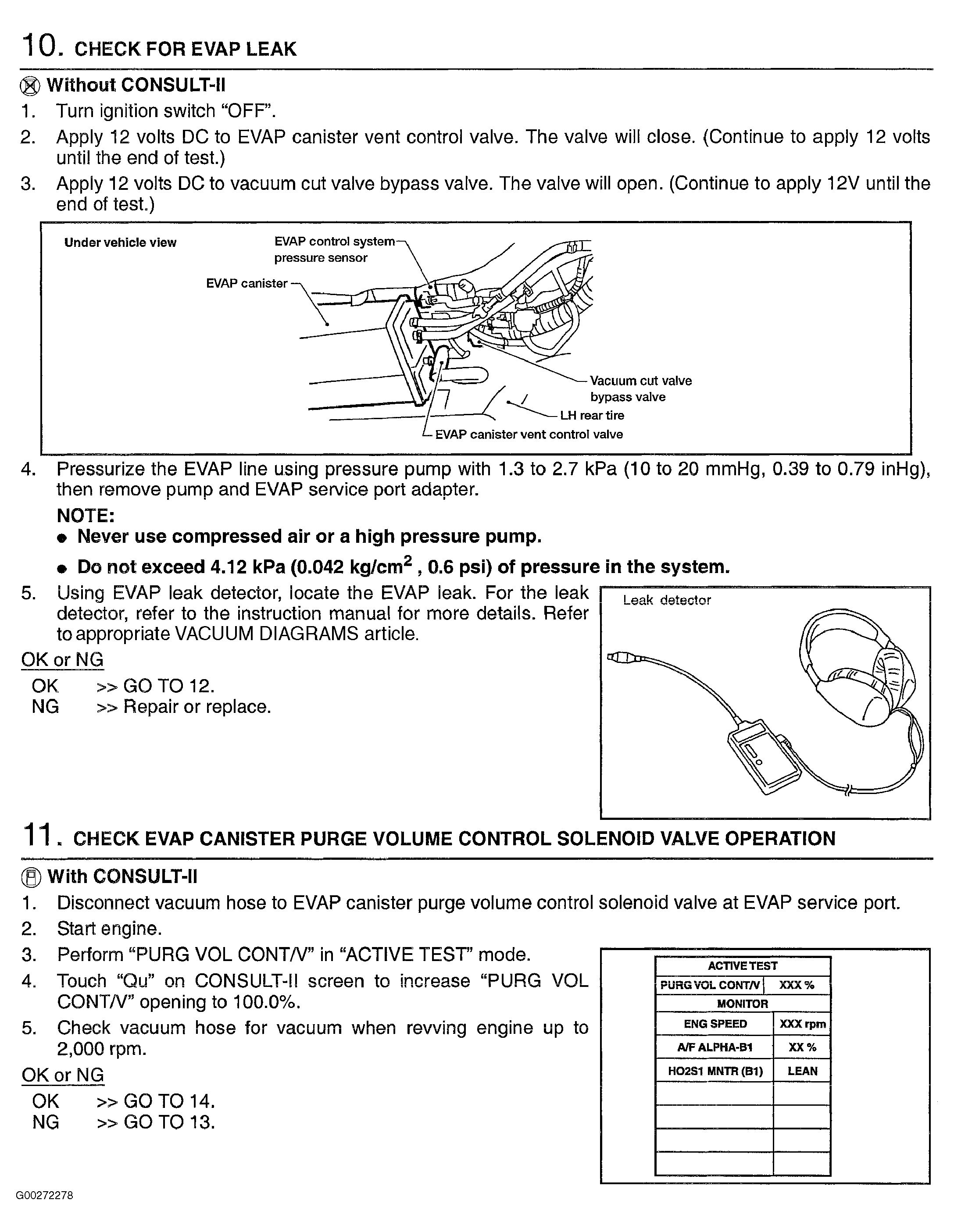

Fig 4: DTC P0455 Diagnostic Procedure (Steps 10 & 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

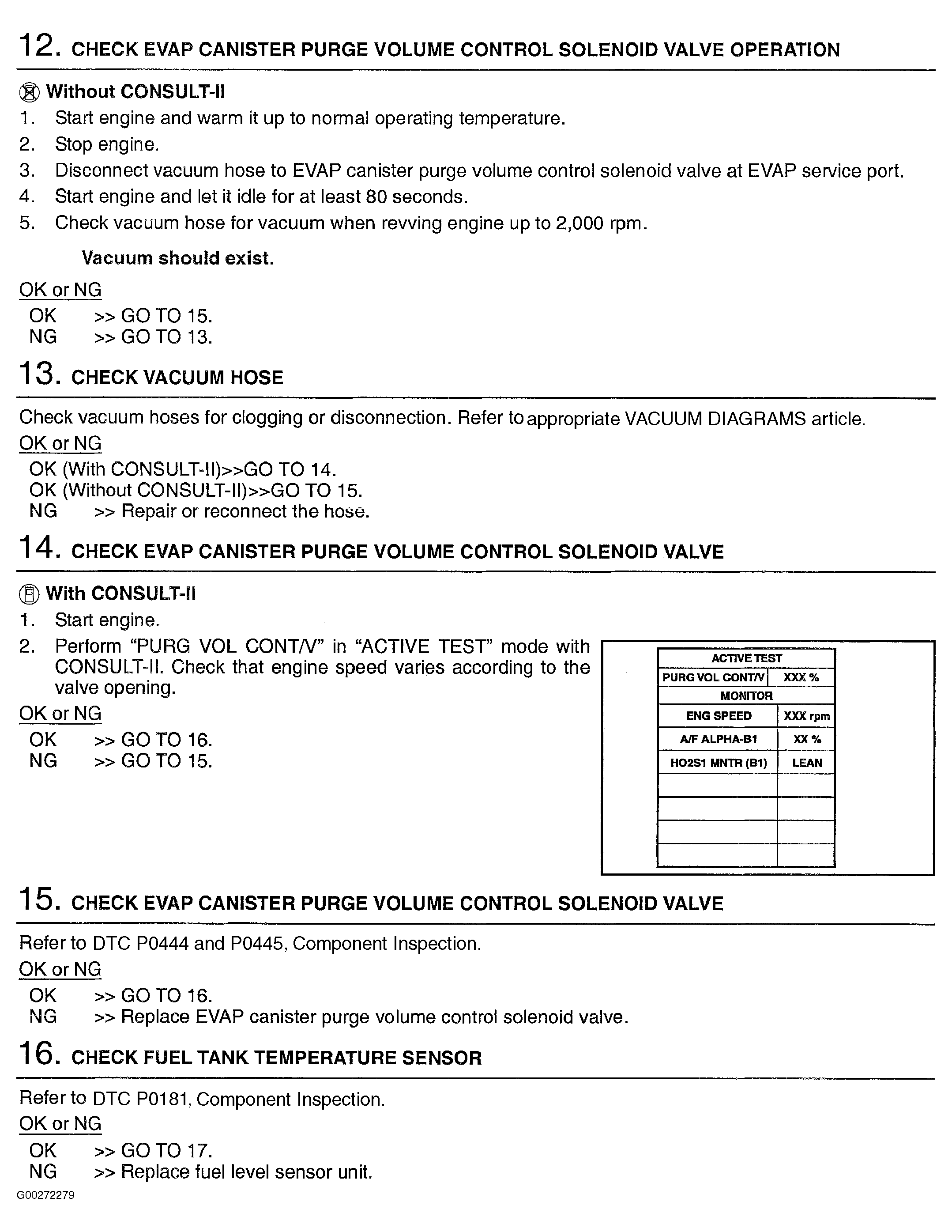

Fig 5: DTC P0455 Diagnostic Procedure (Steps 12-16)

Courtesy of NISSAN MOTOR CO., U.S.A.

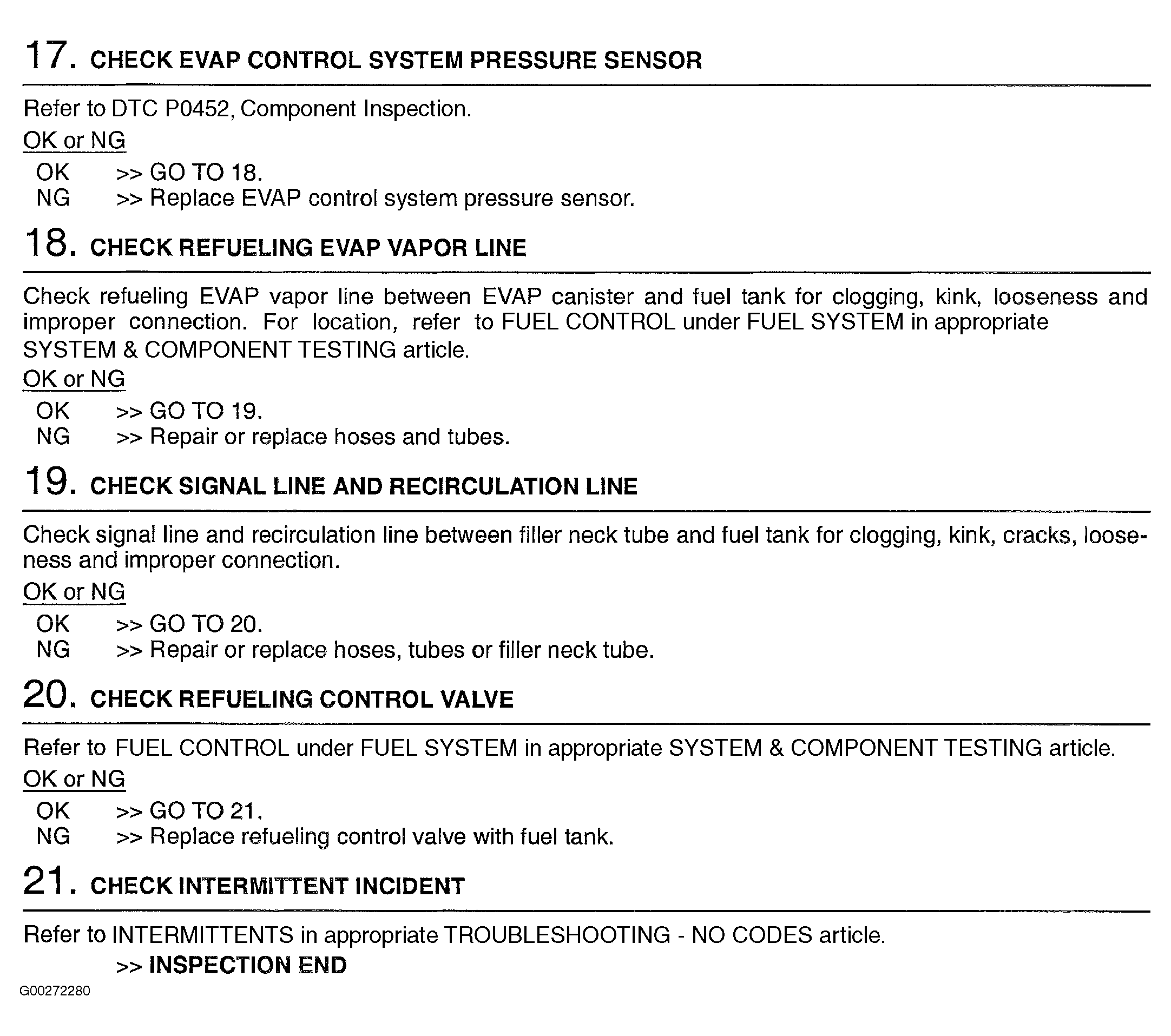

Fig 6: DTC P0455 Diagnostic Procedure (Steps 17-21)

Courtesy of NISSAN MOTOR CO., U.S.A.
