Circuit Identification

For circuit identification, see Fig 1 and Fig 2 .

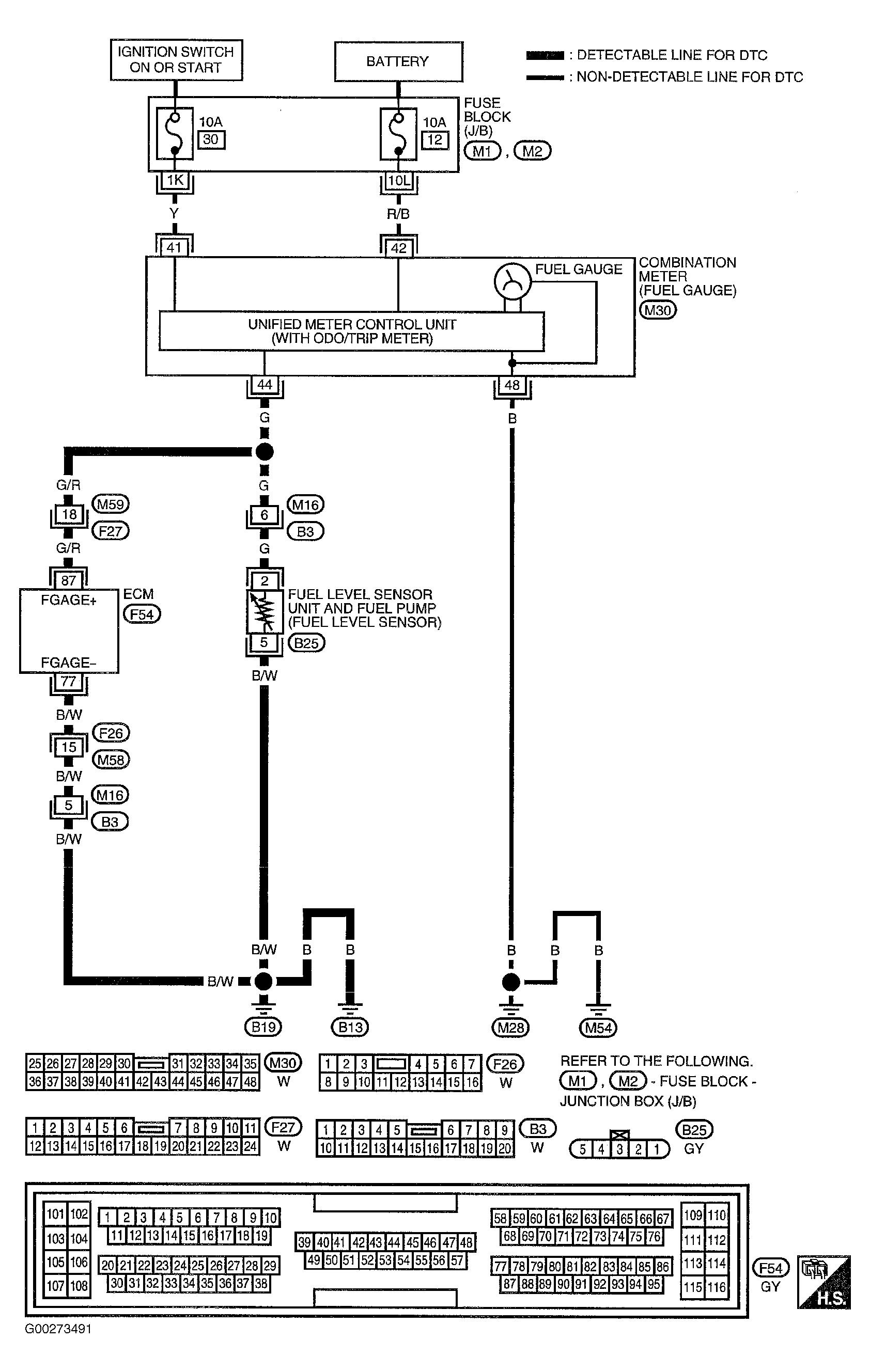

Fig 1: DTCs P0462 & P0463 Fuel Level Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

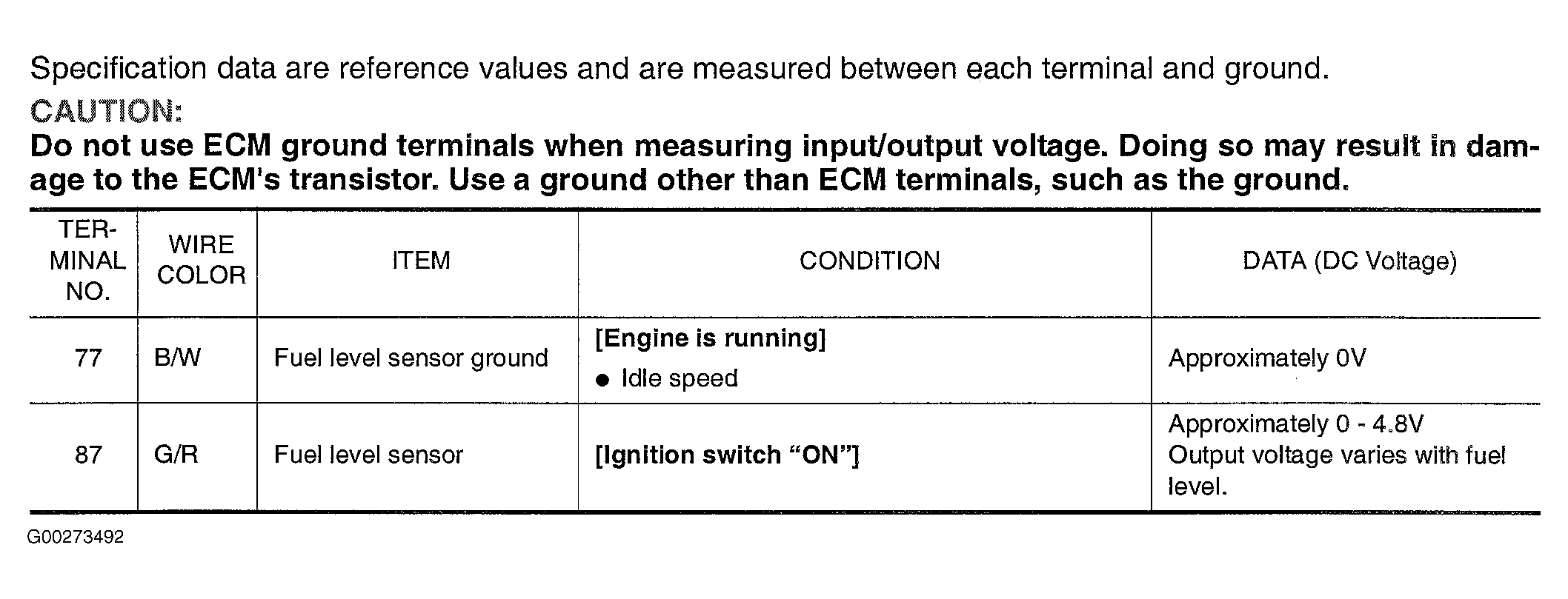

Fig 2: DTCs P0462 & P0463 Fuel Level Sensor Circuit Terminal Identification

Courtesy of NISSAN MOTOR CO., U.S.A.
