Diagnostic Procedure

For diagnostic procedure, see Fig 1

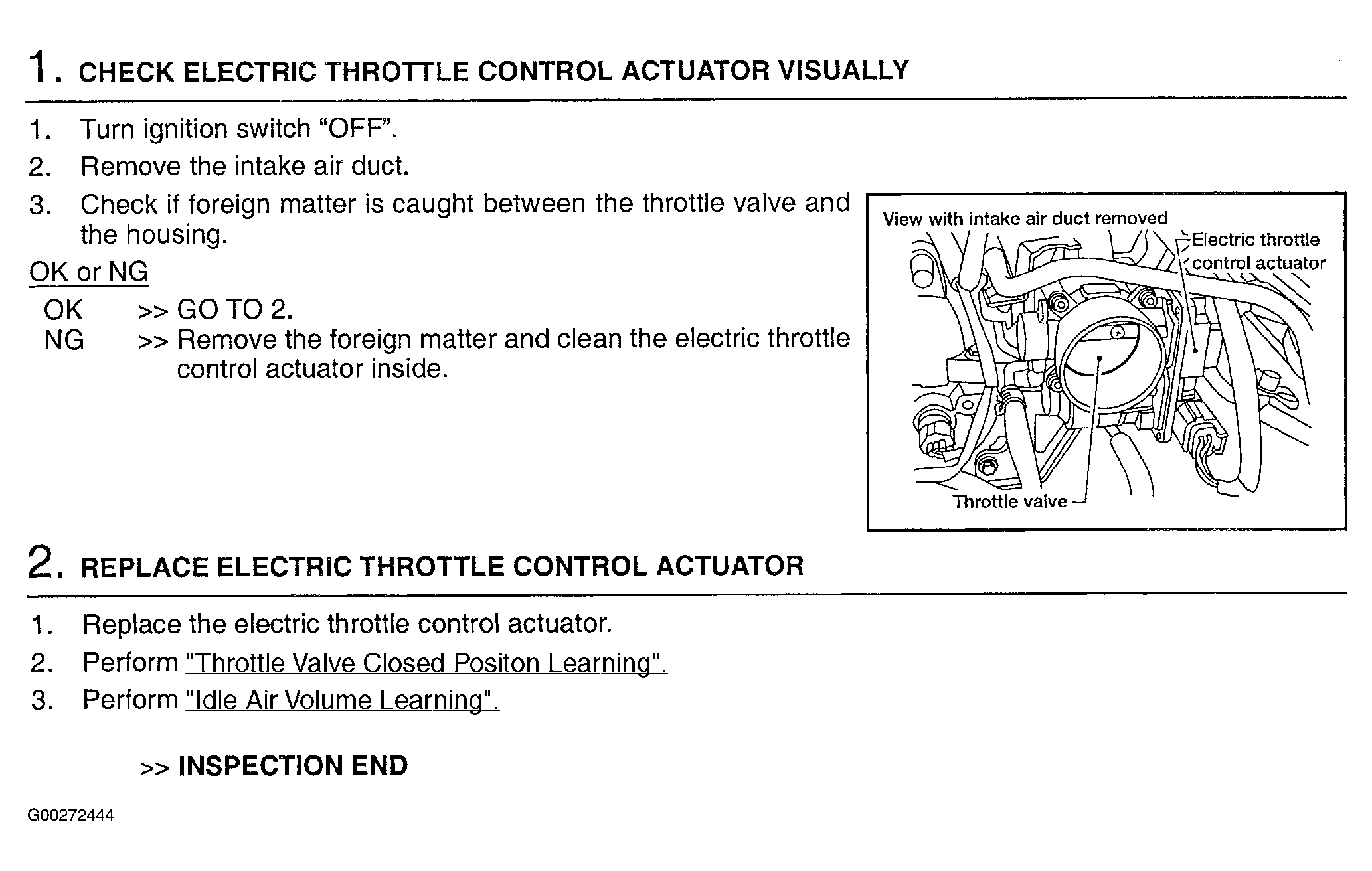

Fig 1: DTC P1226 Diagnostic Procedure

G00272444

Courtesy of NISSAN MOTOR CO., U.S.A.
