Engine Controls - Self-Diagnostics (Qr25DE)
›
Diagnostic Tests
›
DTC P1574: Automatic Speed Control Device (ASCD) Vehicle Speed Sensor
›
DTC Confirmation Procedure
DTC Confirmation Procedure
For DTC confirmation procedure, see
Fig 1
.

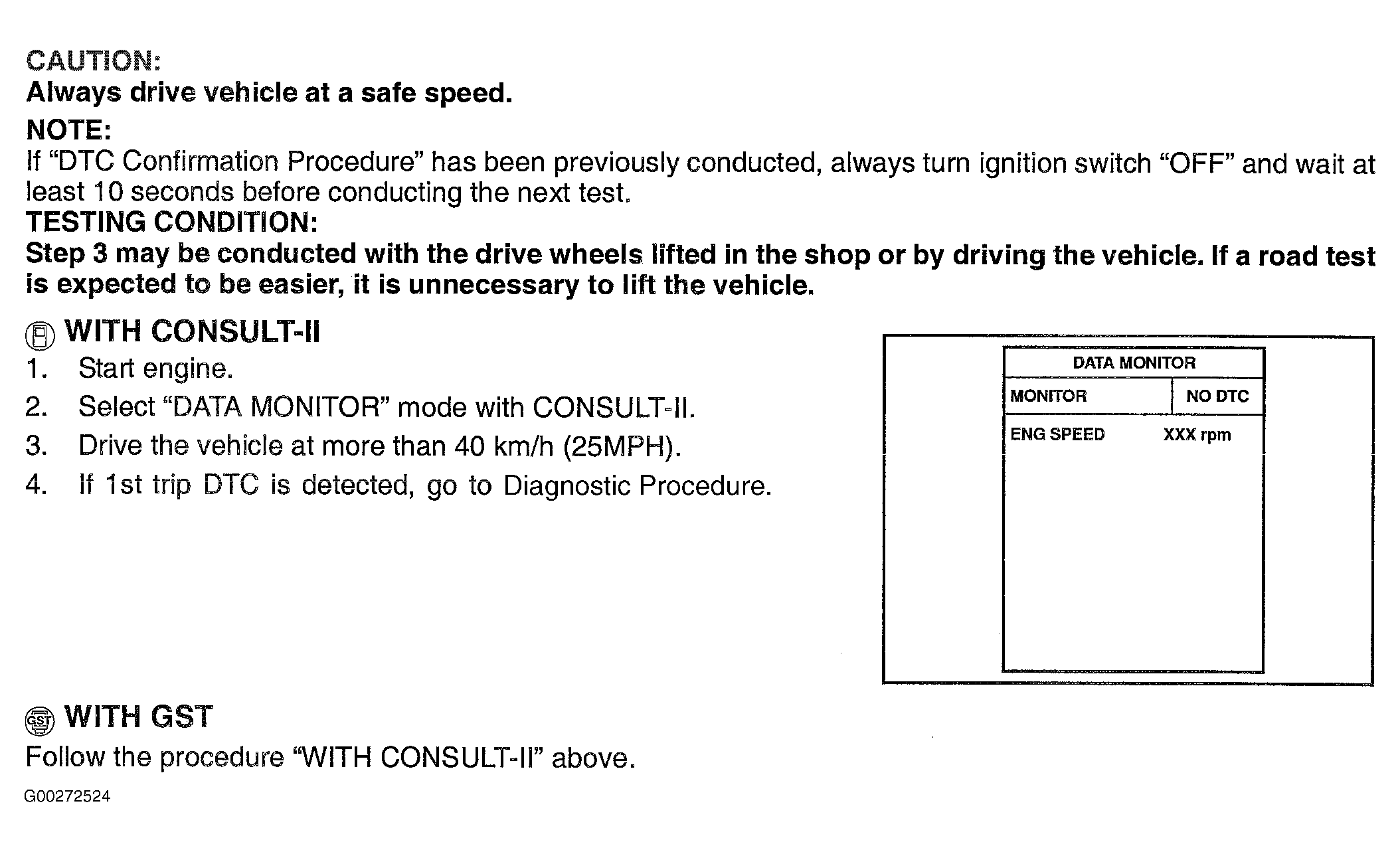

Fig 1: DTC P1574 Confirmation Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
