With Right Hand Automatic Sliding Door System And Automatic Back Door System
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

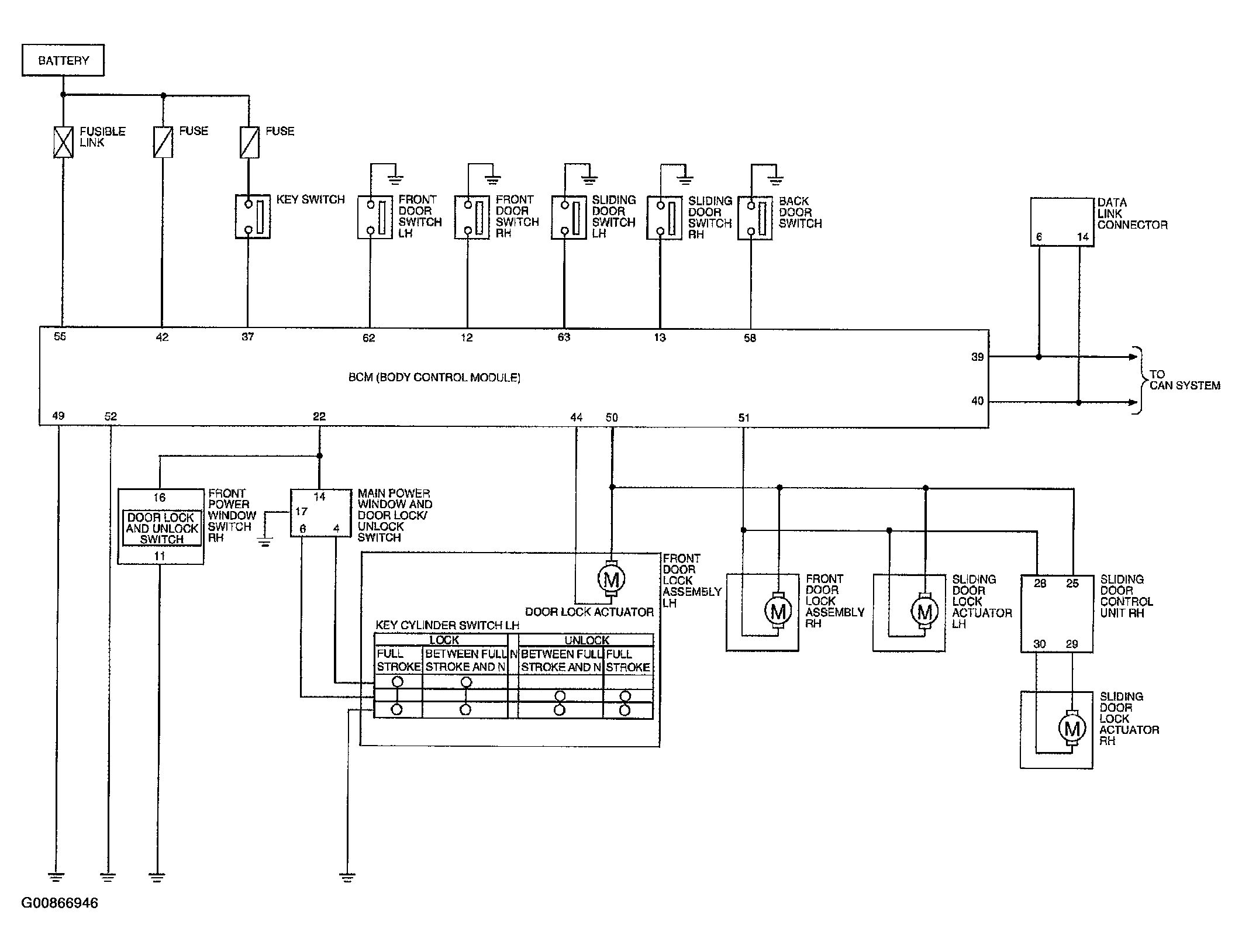

Fig 1: With Right Hand Automatic Sliding Door System & Automatic Back Door System - Schematic Diagram
