Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Fuel Tank Vacuum Relief Valve

For component inspection, see Fig 1.

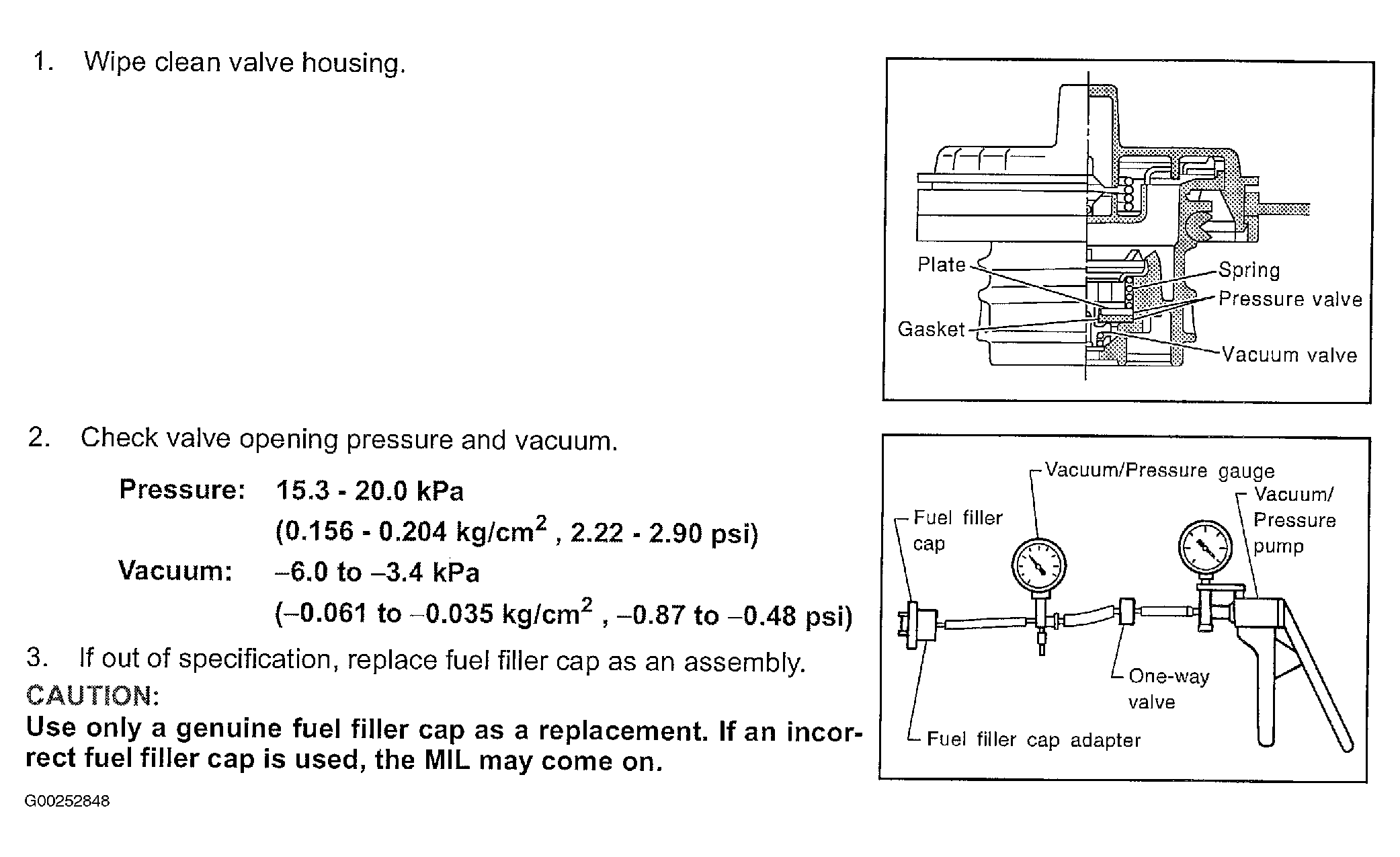

Fig 1: Inspecting Fuel Tank Vacuum Relief Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
