Blower Unit: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

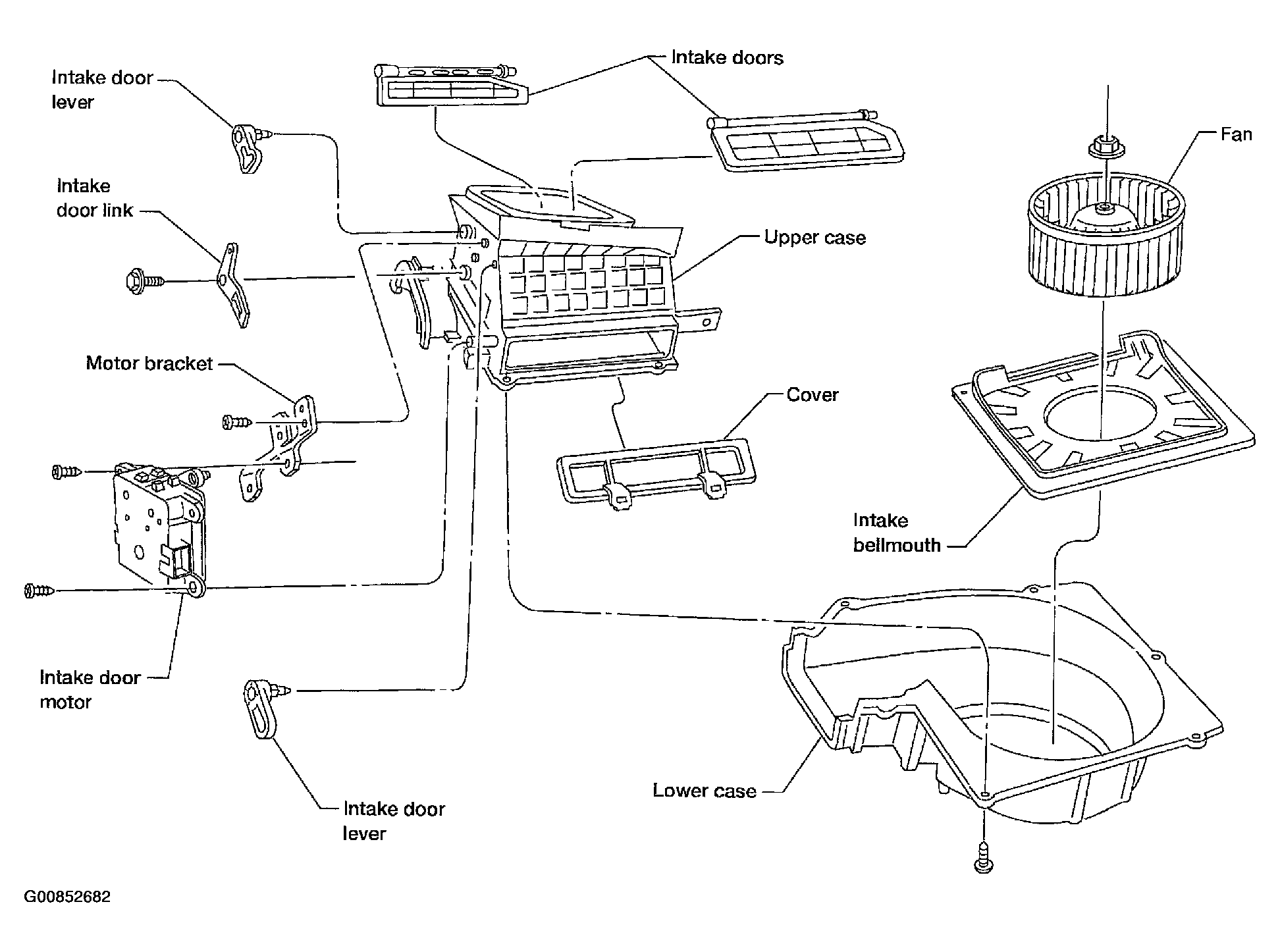

Fig 1: Removing Blower Unit
G00852682Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Discharge the A/C system. Refer to "DISCHARGING REFRIGERANT ".
  2. Disconnect the two refrigerant lines from the engine compartment.

    Cap the A/C lines to prevent moisture from entering the system.

  3. Remove the glove box and mating trim.
  4. Remove cooling unit. Refer to "REMOVAL ".
  5. Disconnect the resistor and blower motor connector.
  6. Remove blower unit.

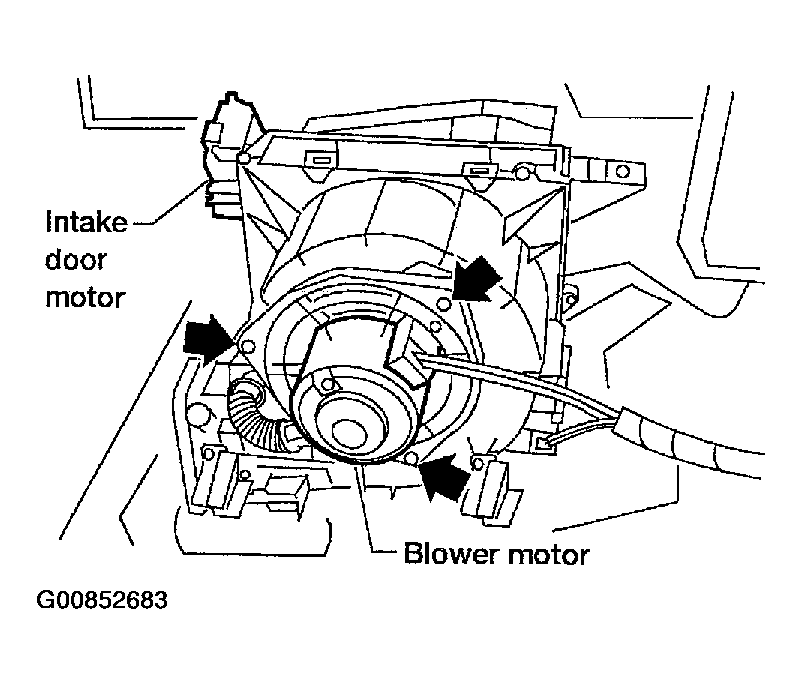

    Fig 2: Removing Blower Unit
    G00852683Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove the three bolts and then remove the motor from the blower case.
