Mode Door Control Linkage

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn mode door control knob to position.
Set side link in DEF mode.
Pull on outer cable in direction of arrow and then clamp it.
After positioning mode door control cable, check that it operates properly.

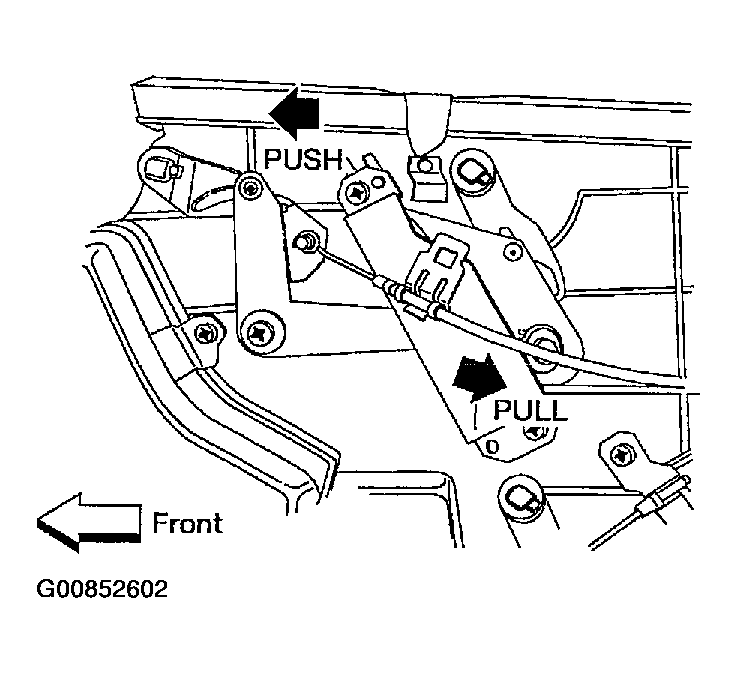

Fig 1: Pulling On Outer Cable In Direction Of Arrow
Courtesy of NISSAN MOTOR CO., U.S.A.
