ABS Motor

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in table below.

Fig 1: Operation Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.

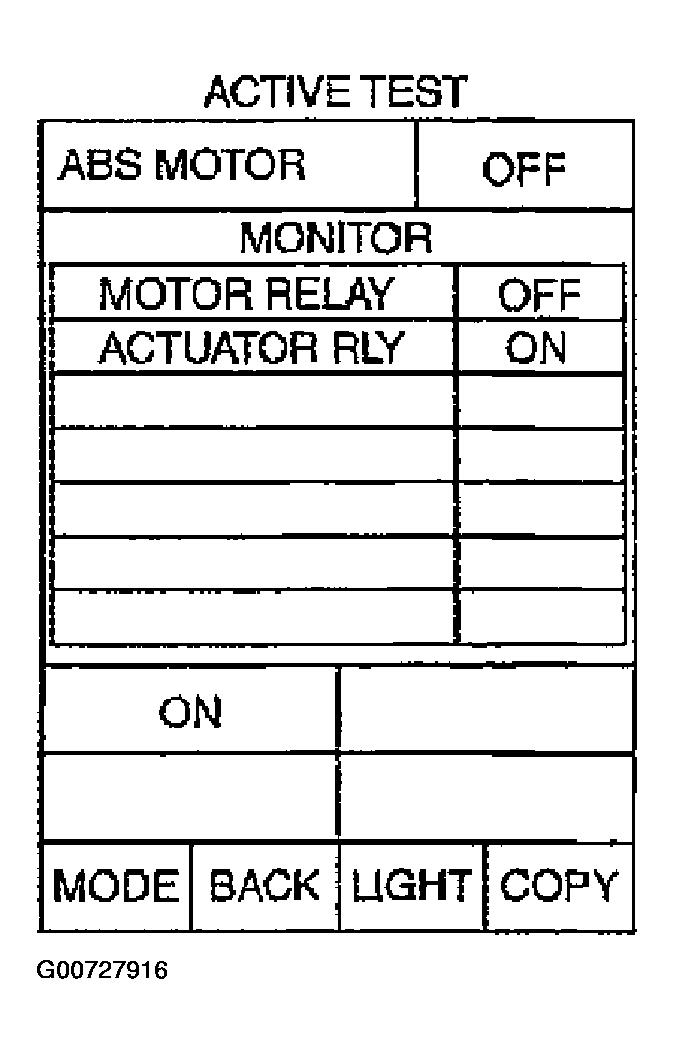

Fig 2: CONSULT-II Function Display

Courtesy of NISSAN MOTOR CO., U.S.A.
