Circuit Description
WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

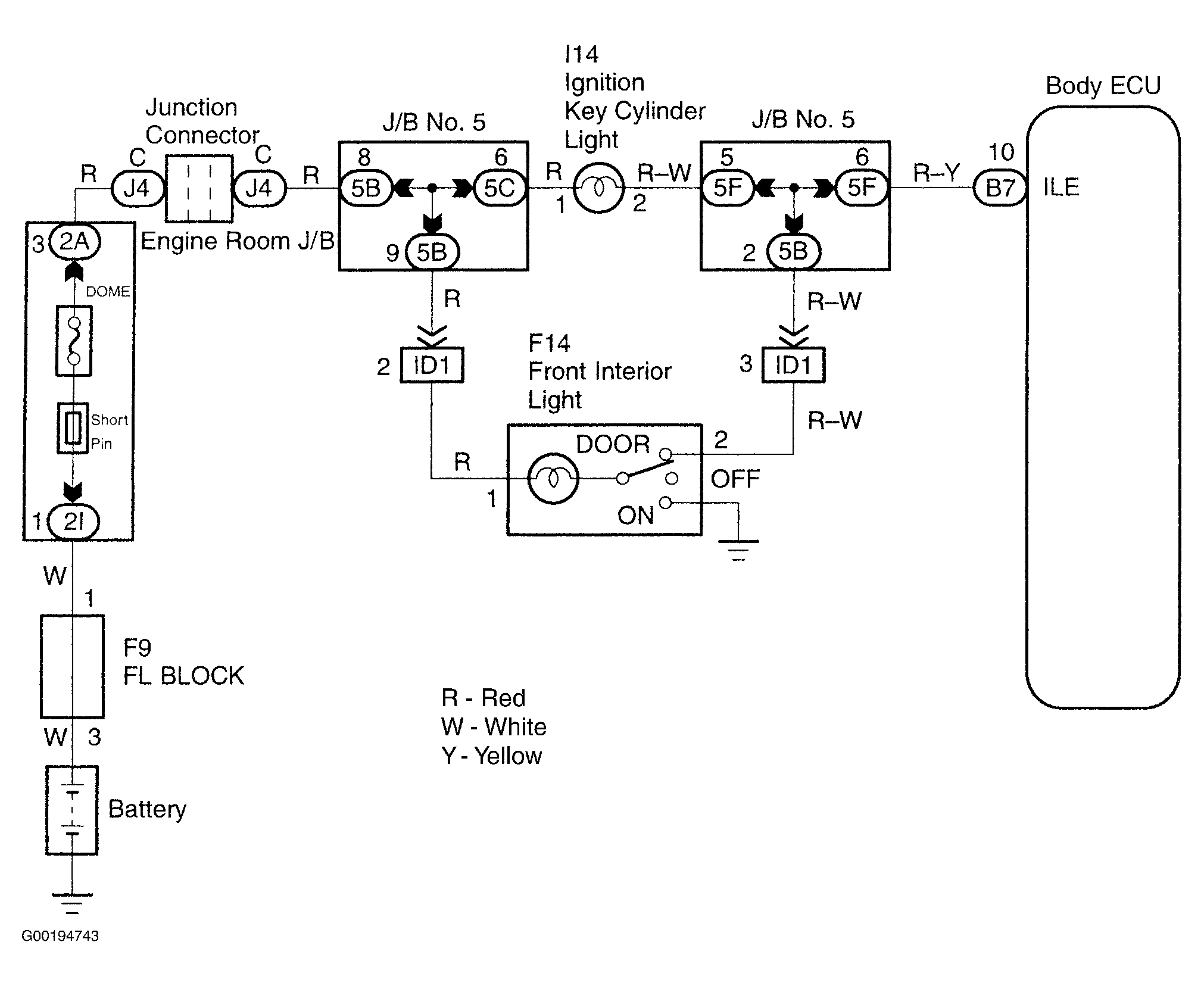

Receiving the courtesy signal from either of the door ECU, the body ECU will make the front interior light and ignition light, come on. See Fig 1.
