Wiring Diagram-NAVI- 193

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

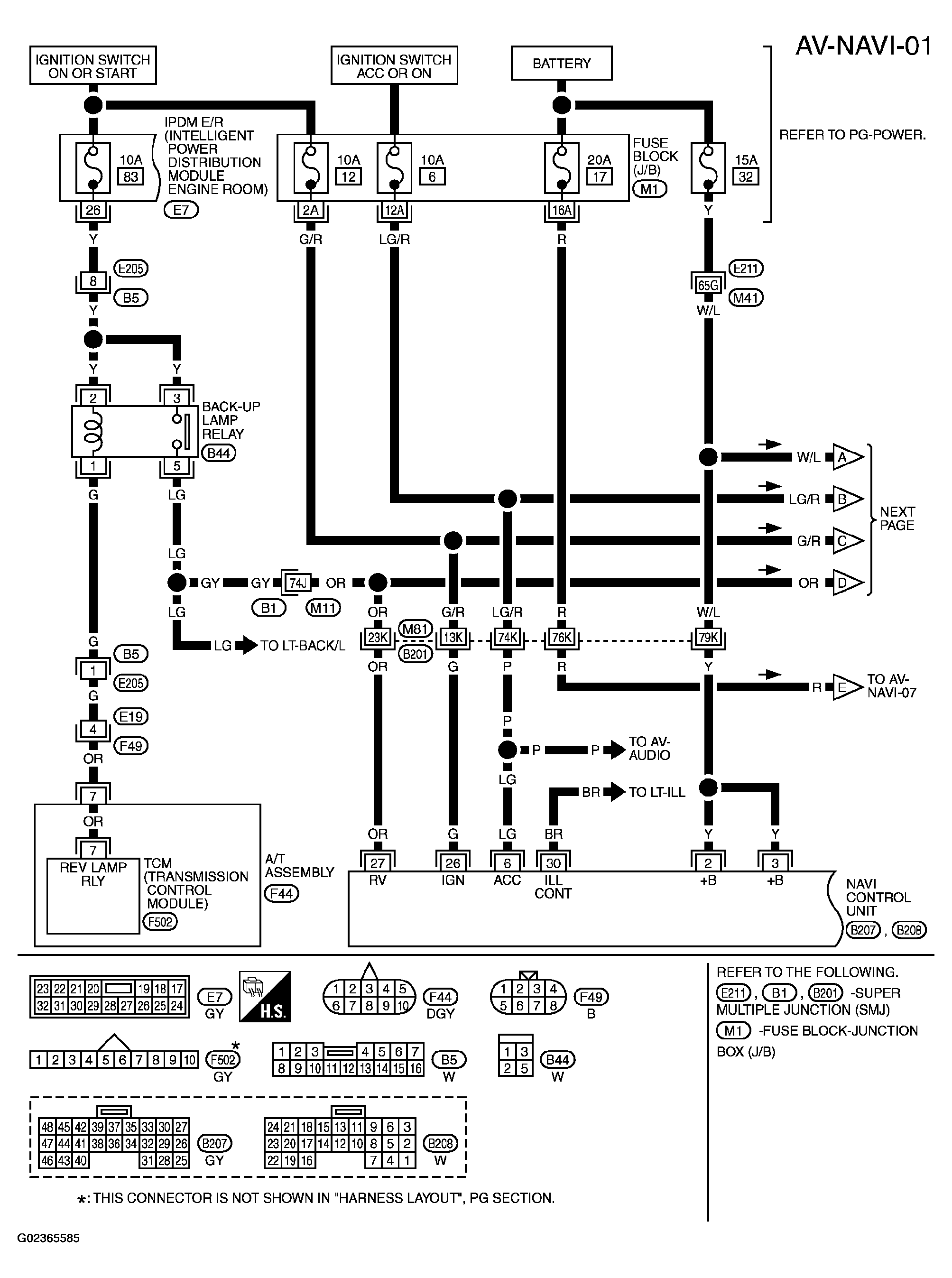

Fig 1: Wiring Diagram - AV-NAVI-01

G02365585

Courtesy of NISSAN MOTOR CO., U.S.A.

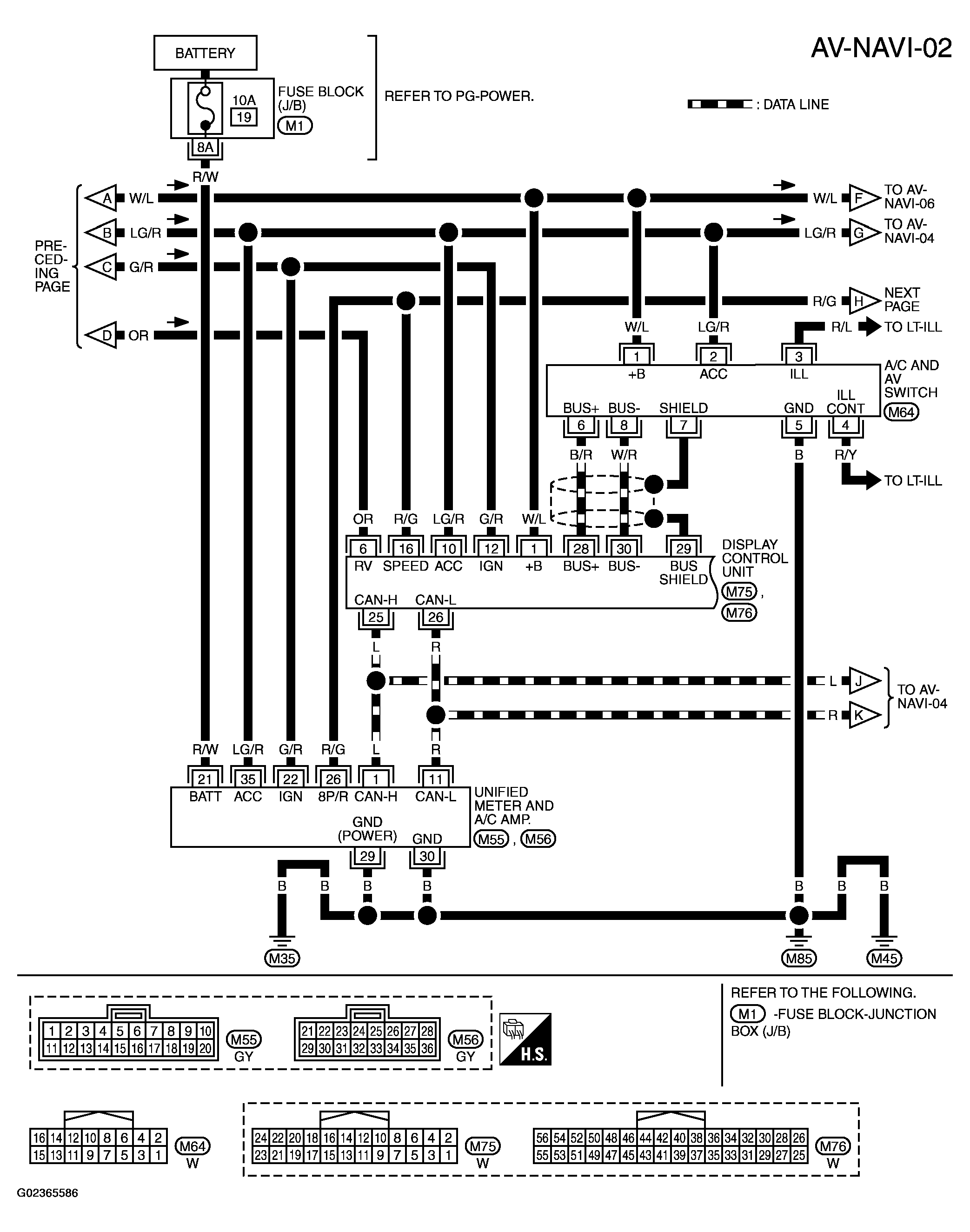

Fig 2: Wiring Diagram - AV-NAVI-02

G02365586

Courtesy of NISSAN MOTOR CO., U.S.A.

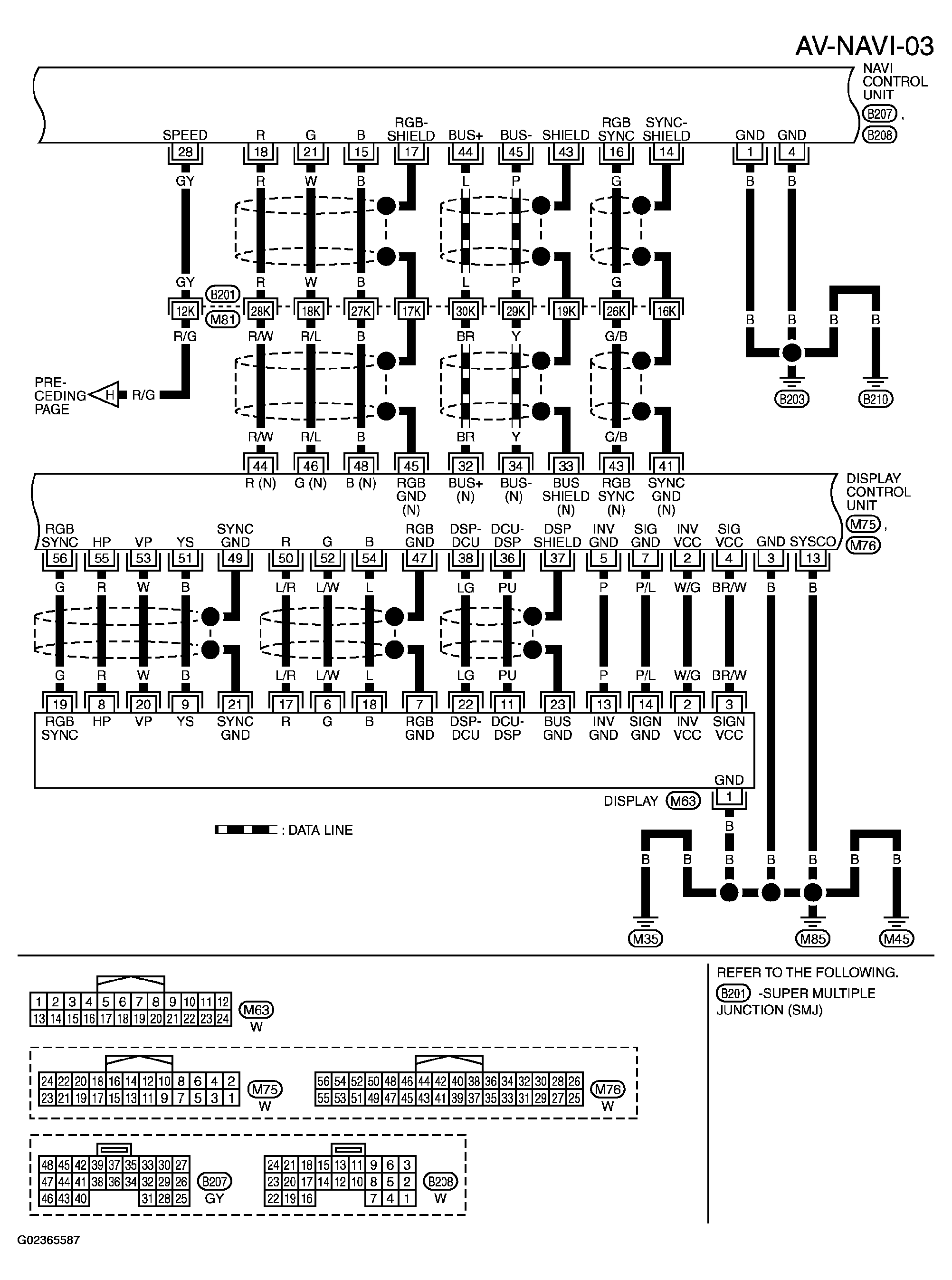

Fig 3: Wiring Diagram - AV-NAVI-03

G02365587

Courtesy of NISSAN MOTOR CO., U.S.A.

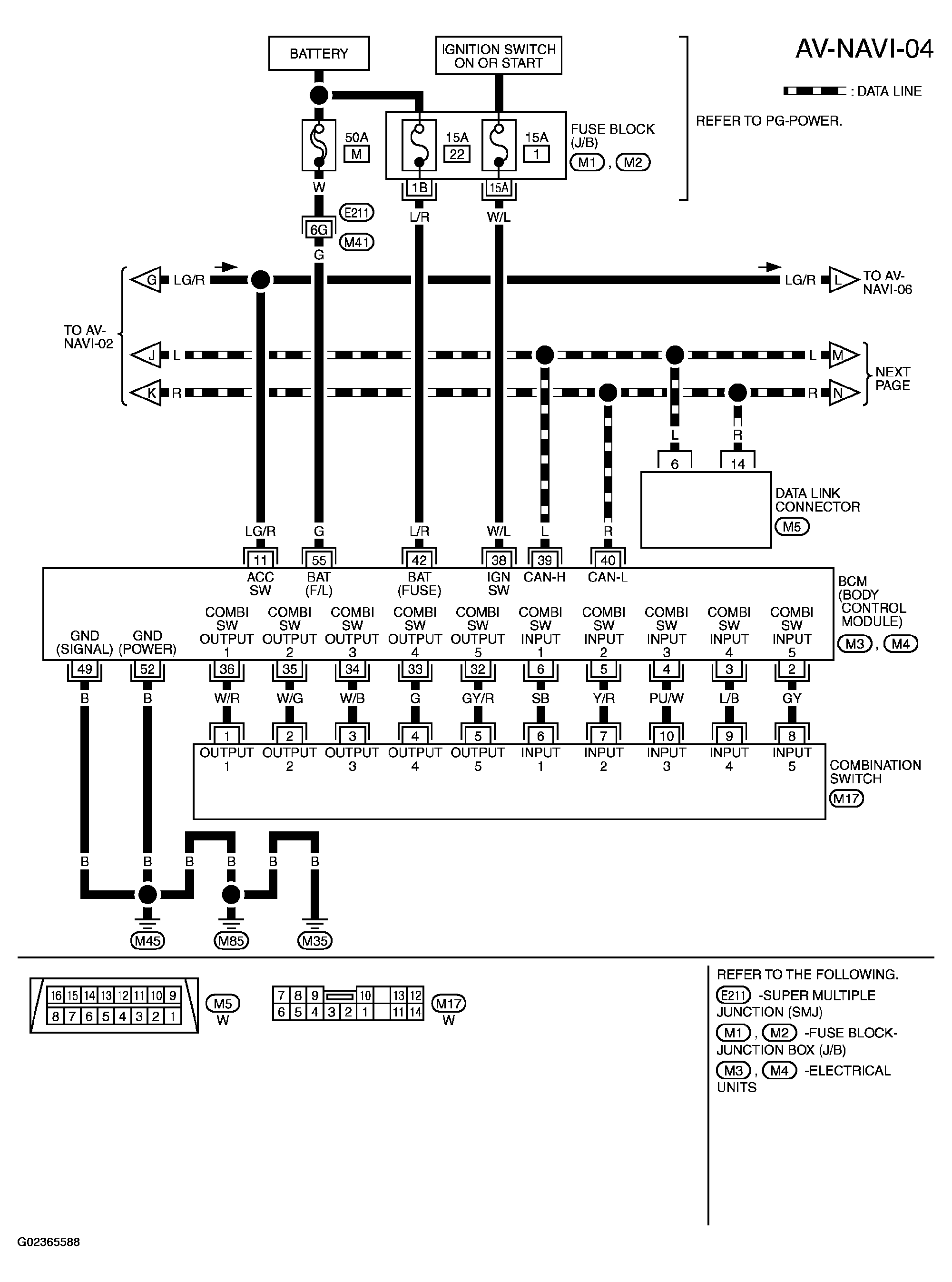

Fig 4: Wiring Diagram - AV-NAVI-04

G02365588

Courtesy of NISSAN MOTOR CO., U.S.A.

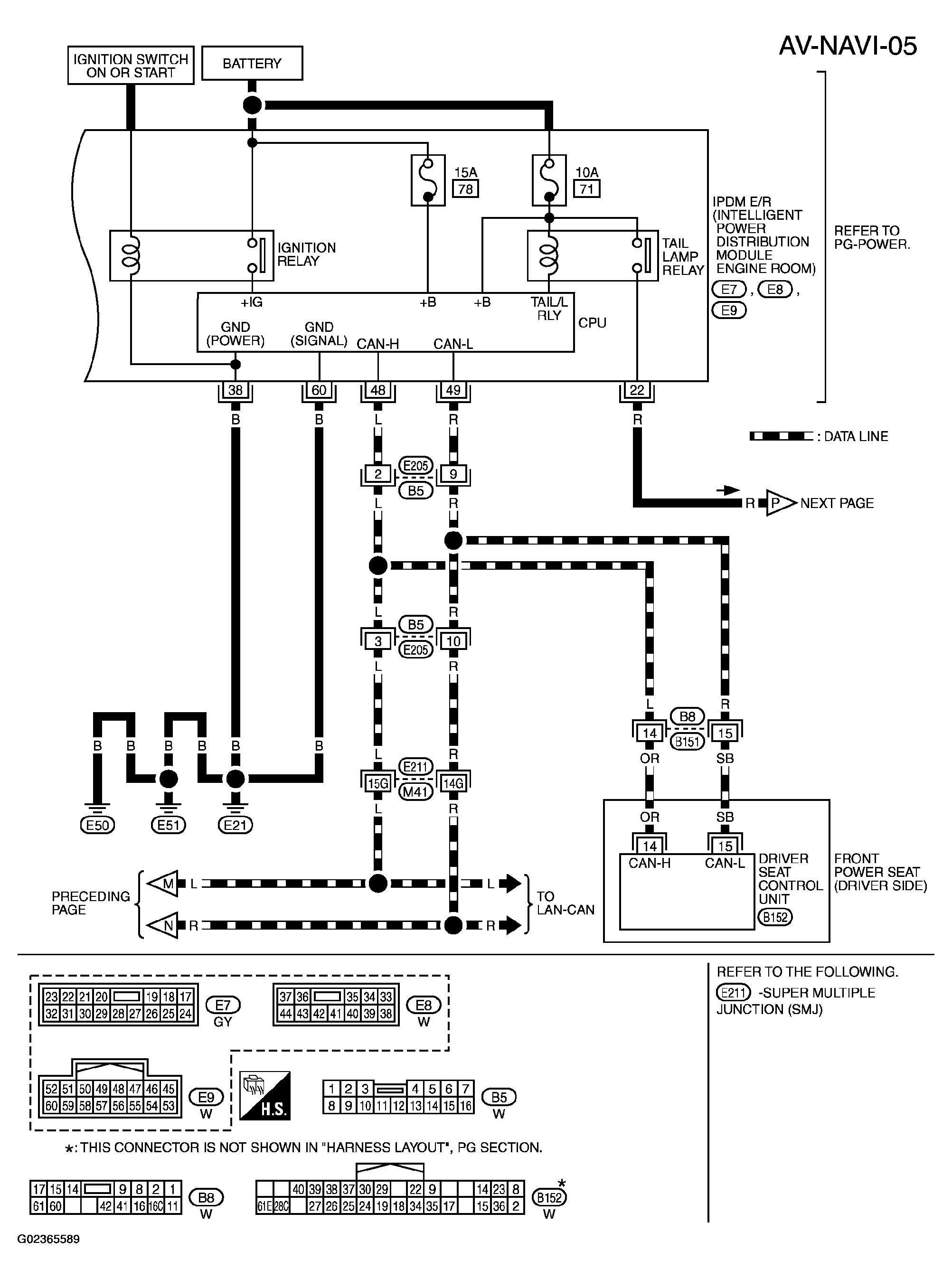

Fig 5: Wiring Diagram - AV-NAVI-05

G02365589

Courtesy of NISSAN MOTOR CO., U.S.A.

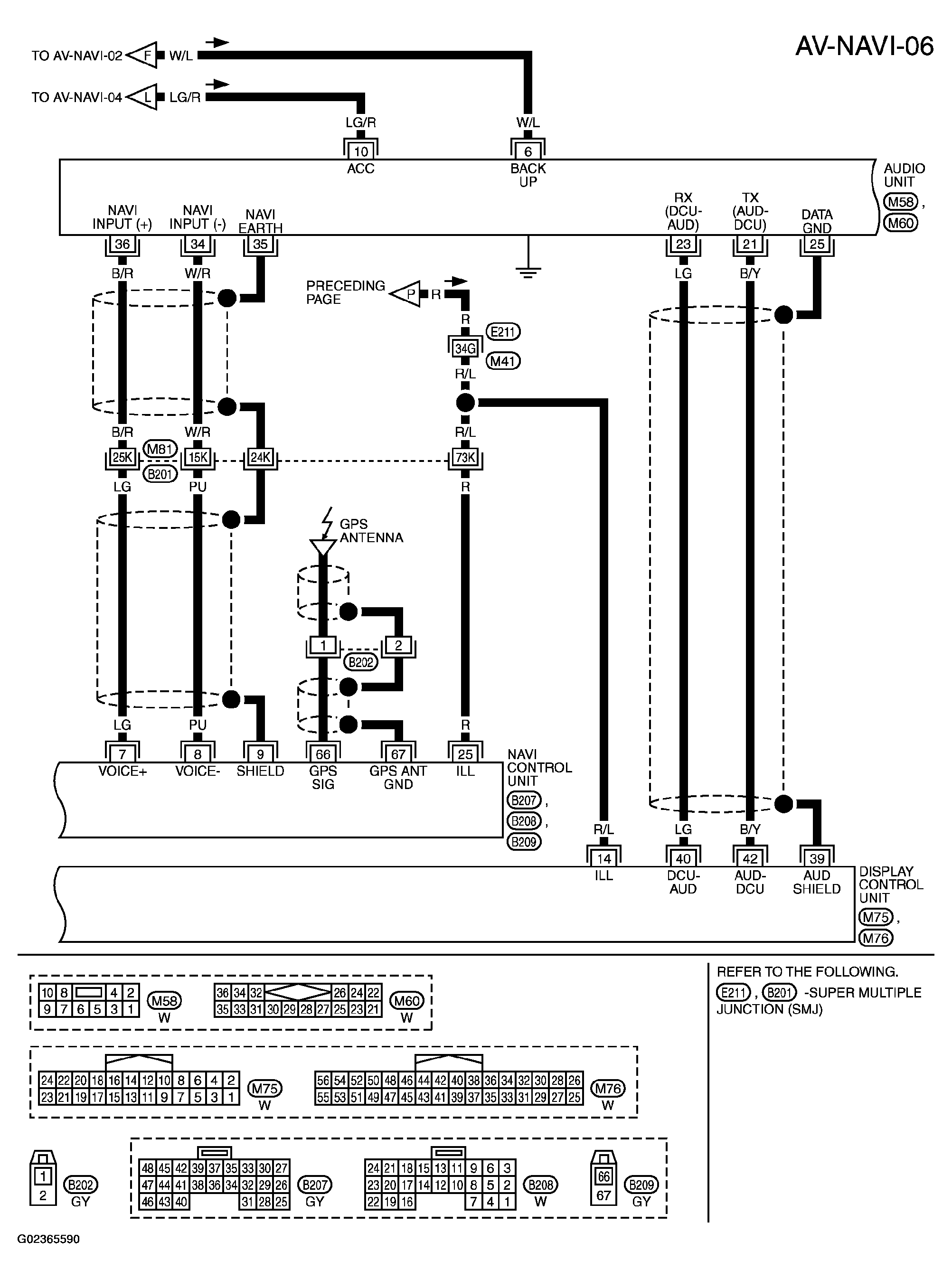

Fig 6: Wiring Diagram - AV-NAVI-06

G02365590

Courtesy of NISSAN MOTOR CO., U.S.A.

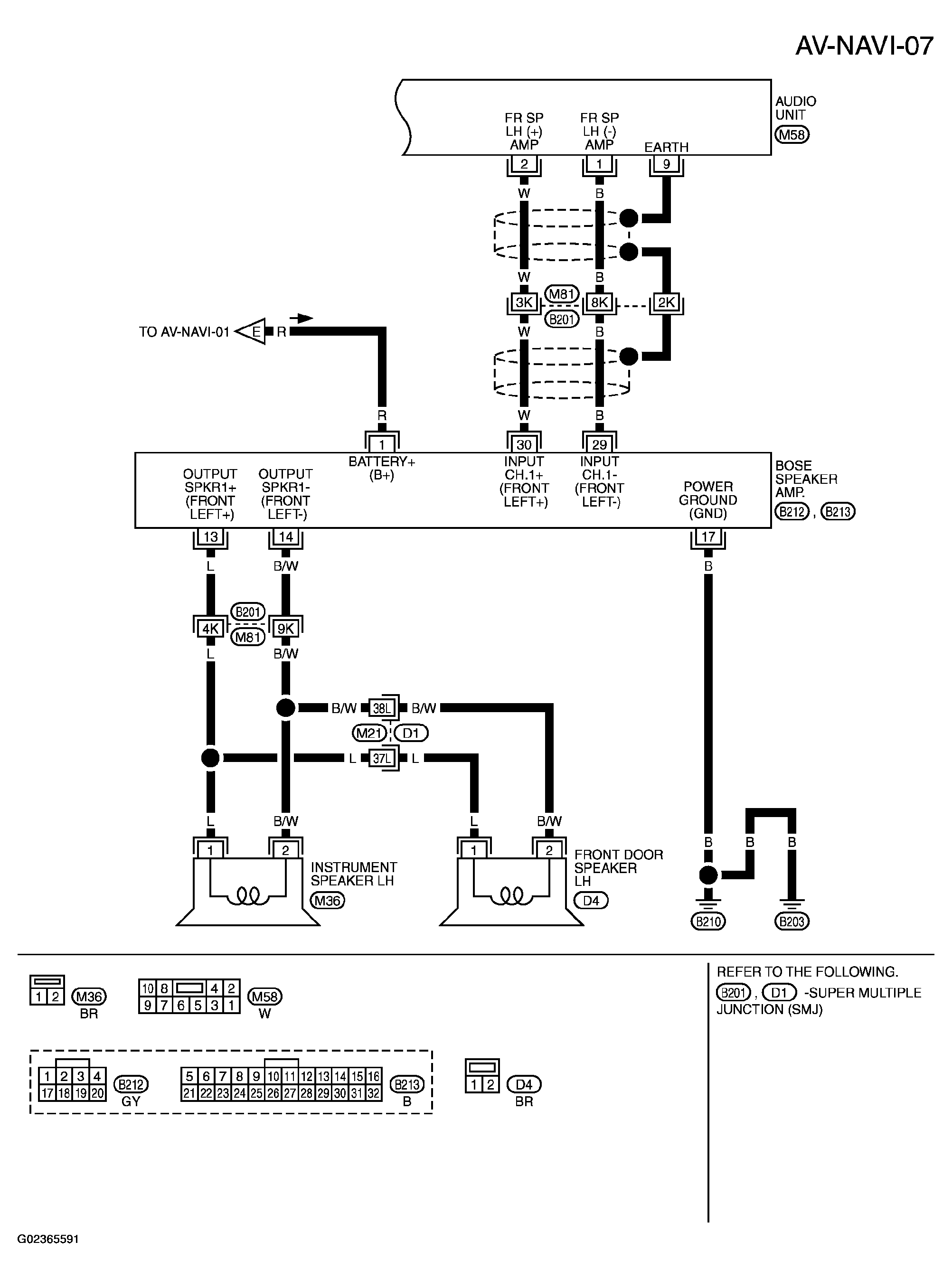

Fig 7: Wiring Diagram - AV-NAVI-07

G02365591

Courtesy of NISSAN MOTOR CO., U.S.A.
