Initialization Mode
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Initialization mode is used to set the default values of door full open position and normal motor current.
It is necessary to complete initialization and reset the default settings under any of the following circumstances:
- Sliding door control unit is replaced.
- Sliding door motor is replaced.
- Sliding door is adjusted.
- Sliding door panel is replaced or repaired.
- Body panel near sliding door is replaced or repaired.
- Any sliding door roller is replaced or adjusted.
- Any sliding door striker is replaced or adjusted.
- Any sliding door dovetail is replaced or adjusted.
- Sliding door lock assembly is replaced.
- Rear rail is replaced.
- Sliding door weatherstrip is replaced.
- Sliding door contact switch is replaced or adjusted.

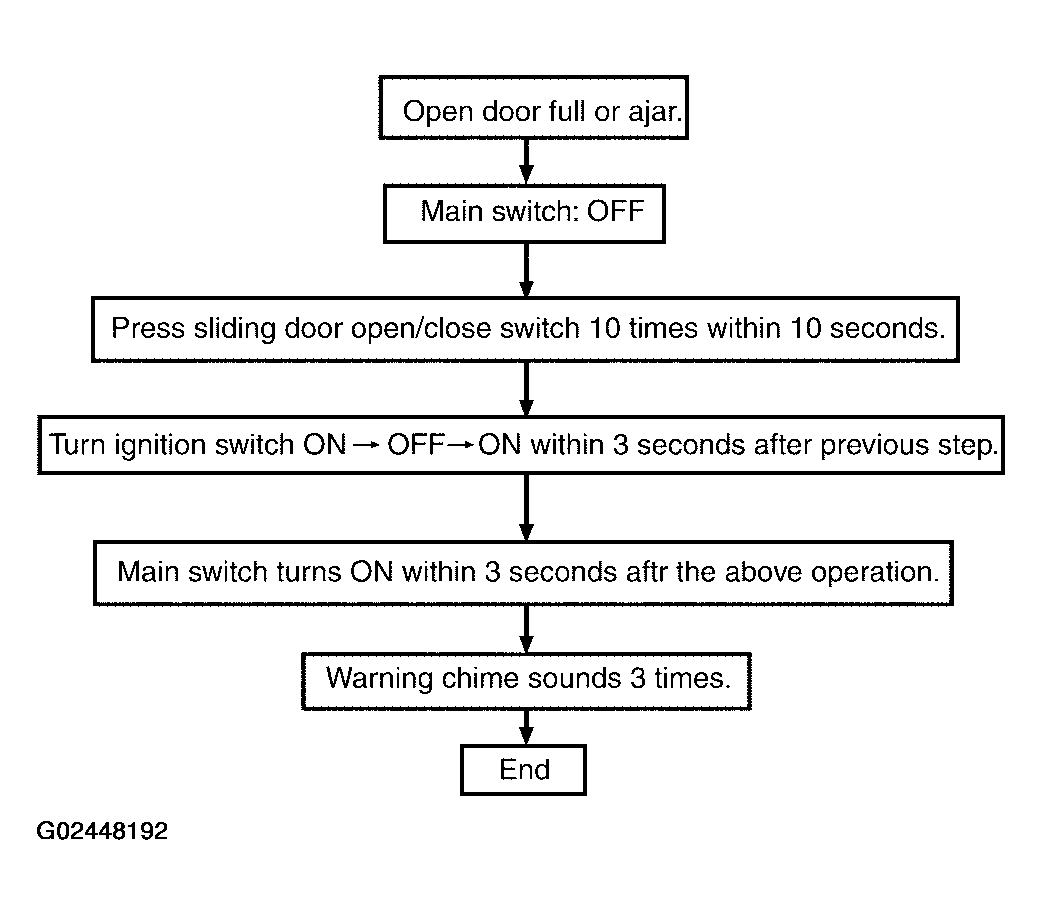

- When the battery is first connected, the sliding door control unit is automatically set to the initialization mode. The sliding door control unit may be manually set to initialization mode by performing the following procedure.
- While in initialization mode, only the overhead sliding door open/close switches are enabled. Remote keyless entry, door pillar switch and power assist functions are disabled.

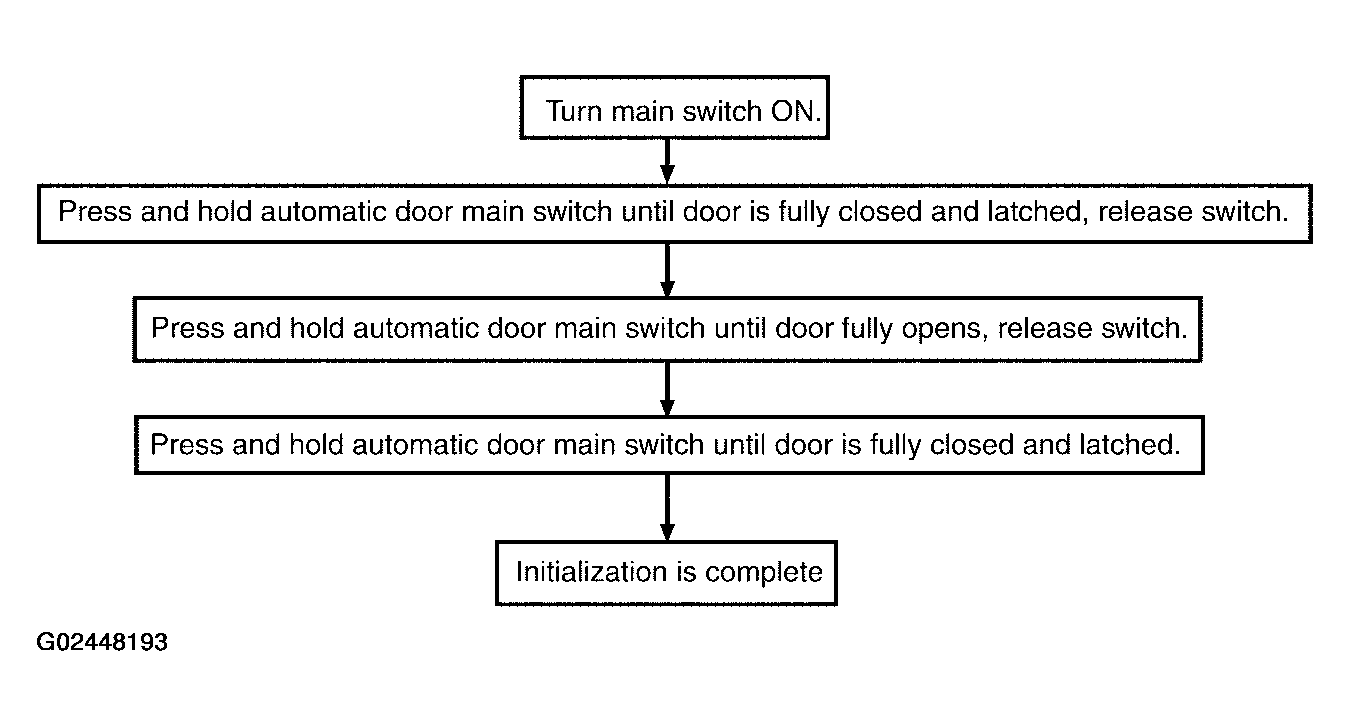

- To initialize the following procedure.
