Fill Procedures

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fill procedures after installation of service part.
    • Remove foam material remaining on vehicle side.
    • Clean area in which foam was removed.
    • Install service part.
    • Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service part.

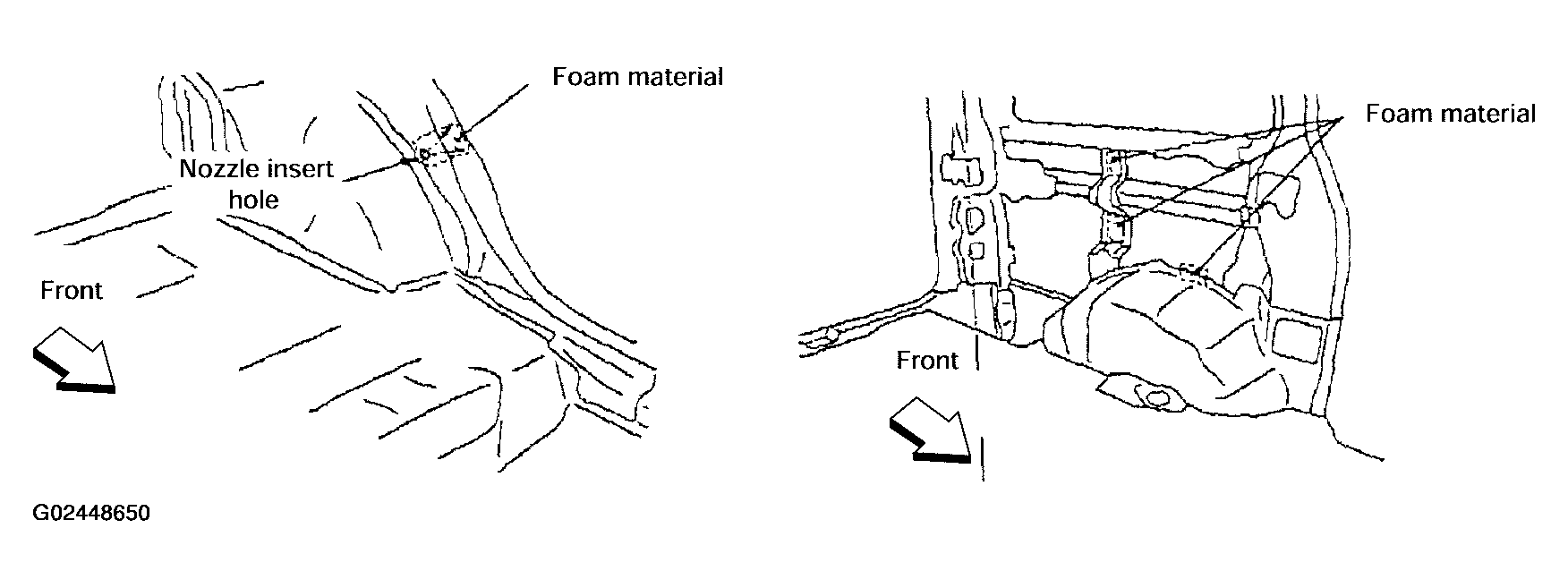

      Fig 1: Identifying Filling Procedures
      G02448650Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Fill procedures before installation of service part.
    • Remove foam material remaining on vehicle side.
    • Clean area in which foam was removed.
    • Fill foam material on wheelhouse outer side.
      NOTE: Fill in enough to close gap with service part while avoiding flange area.
    • Install service part.
      NOTE: Refer to label for information on working times.
      Fig 2: Installing Service Part
      G02448651Courtesy of NISSAN MOTOR CO., U.S.A.
