Center Console

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

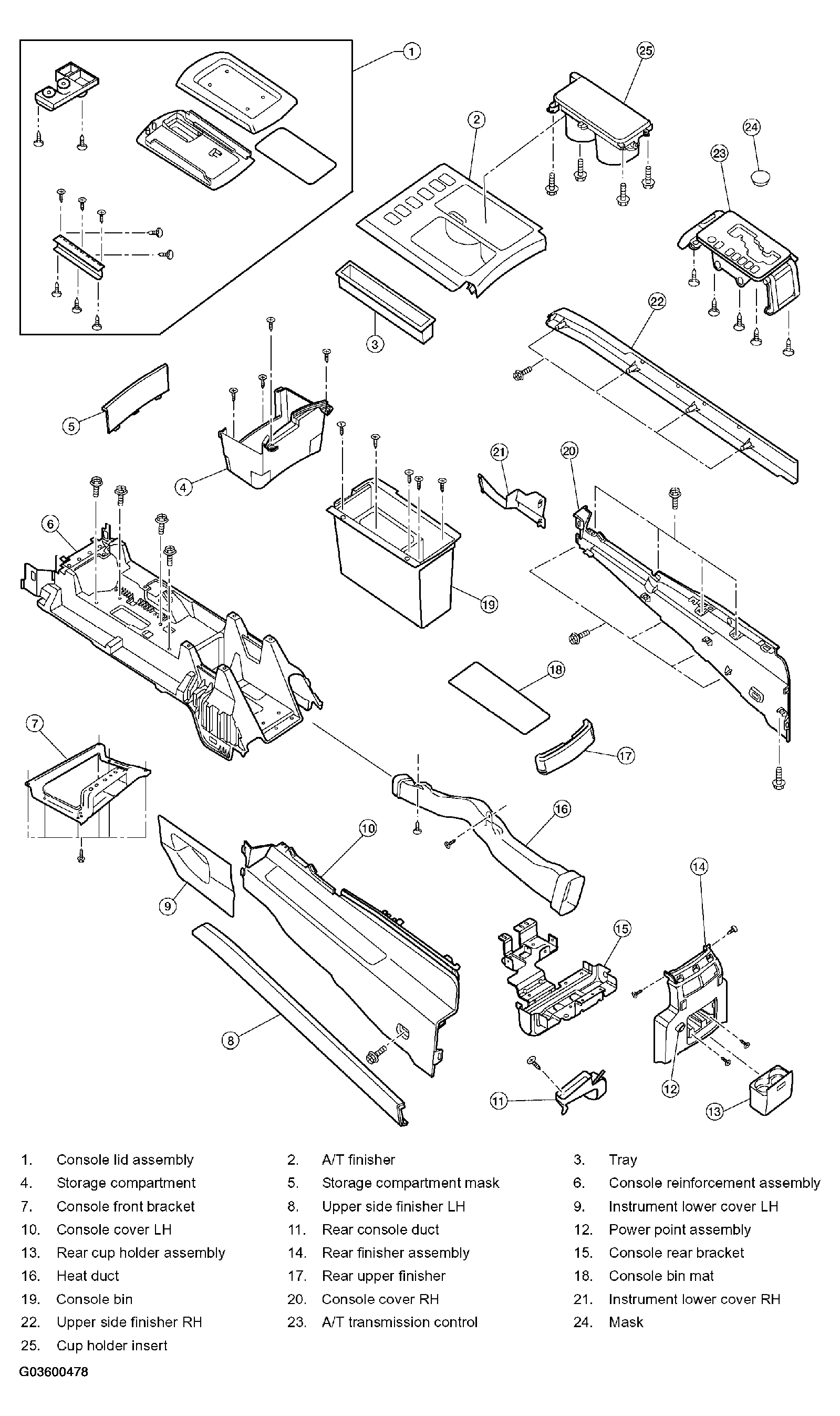

Fig 1: Exploded View Of Center Console
G03600478Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the center console. Refer to CENTER CONSOLE .
  2. Remove tray and mat from console bin.
  3. Remove latch from console lid.
  4. Remove hinge from console lid. Remove console lid.
    • Remove console lid mat.
  5. Remove console bin.
    • Disconnect electrical harness from DVD player, if equipped.
    • Remove hinge from console bin.
  6. Remove rear upper finisher.
  7. Remove rear cup holder assembly.
  8. Remove upper side finishers LH/RH.
  9. Remove screws on each side, disconnect clips and remove console covers LH/RH.
  10. Remove rear finisher assembly.
    • Disconnect electrical connectors.
  11. Remove power point assembly.
  12. Remove mask and storage compartment.
  13. Remove console front bracket.
  14. Remove heat duct and console rear duct.
  15. Remove console rear bracket.

Assembly is in the reverse order of disassembly.
