M/T Models

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

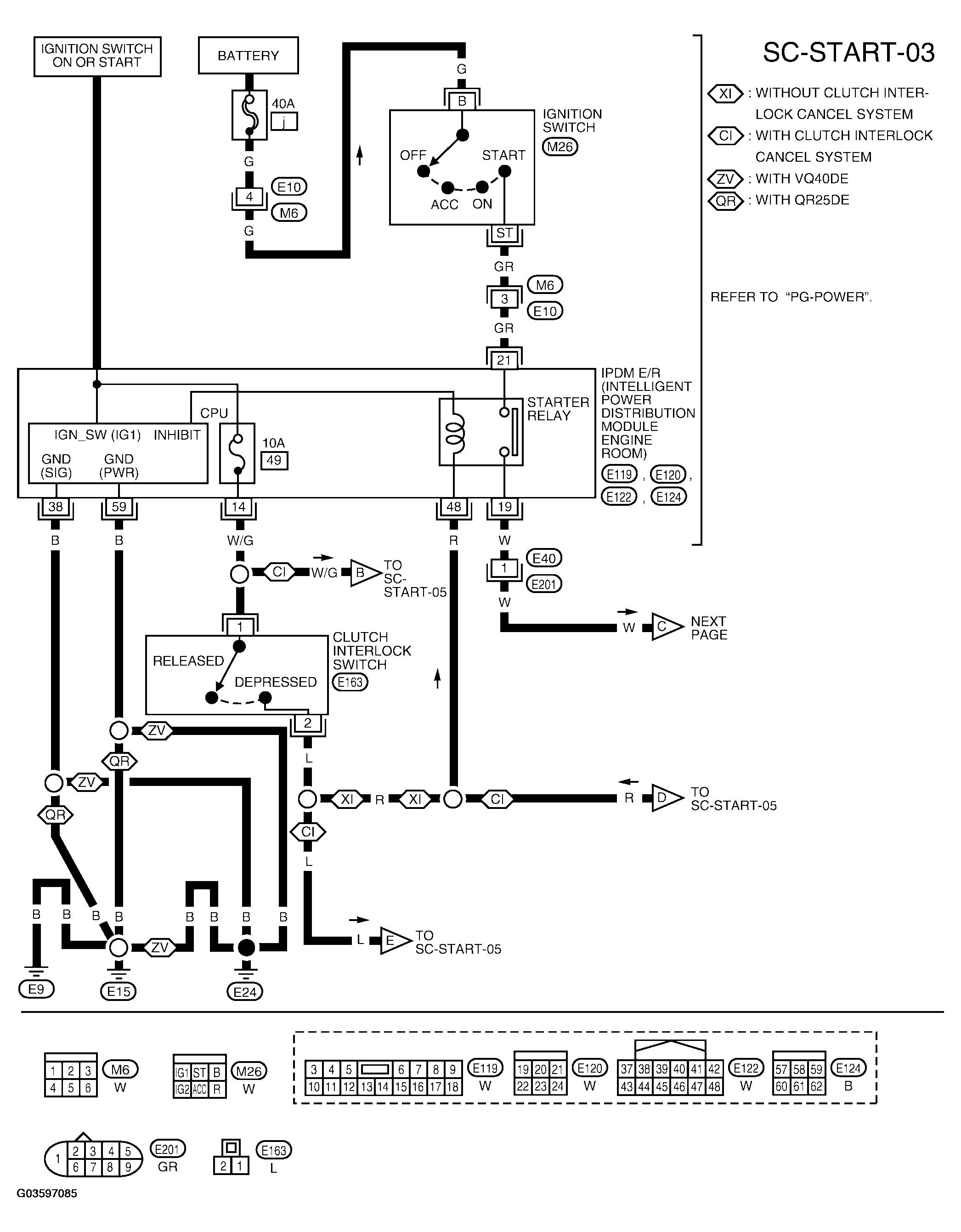

Fig 1: Wiring Diagram (M/T Models) - SC-START-03

Courtesy of NISSAN MOTOR CO., U.S.A.

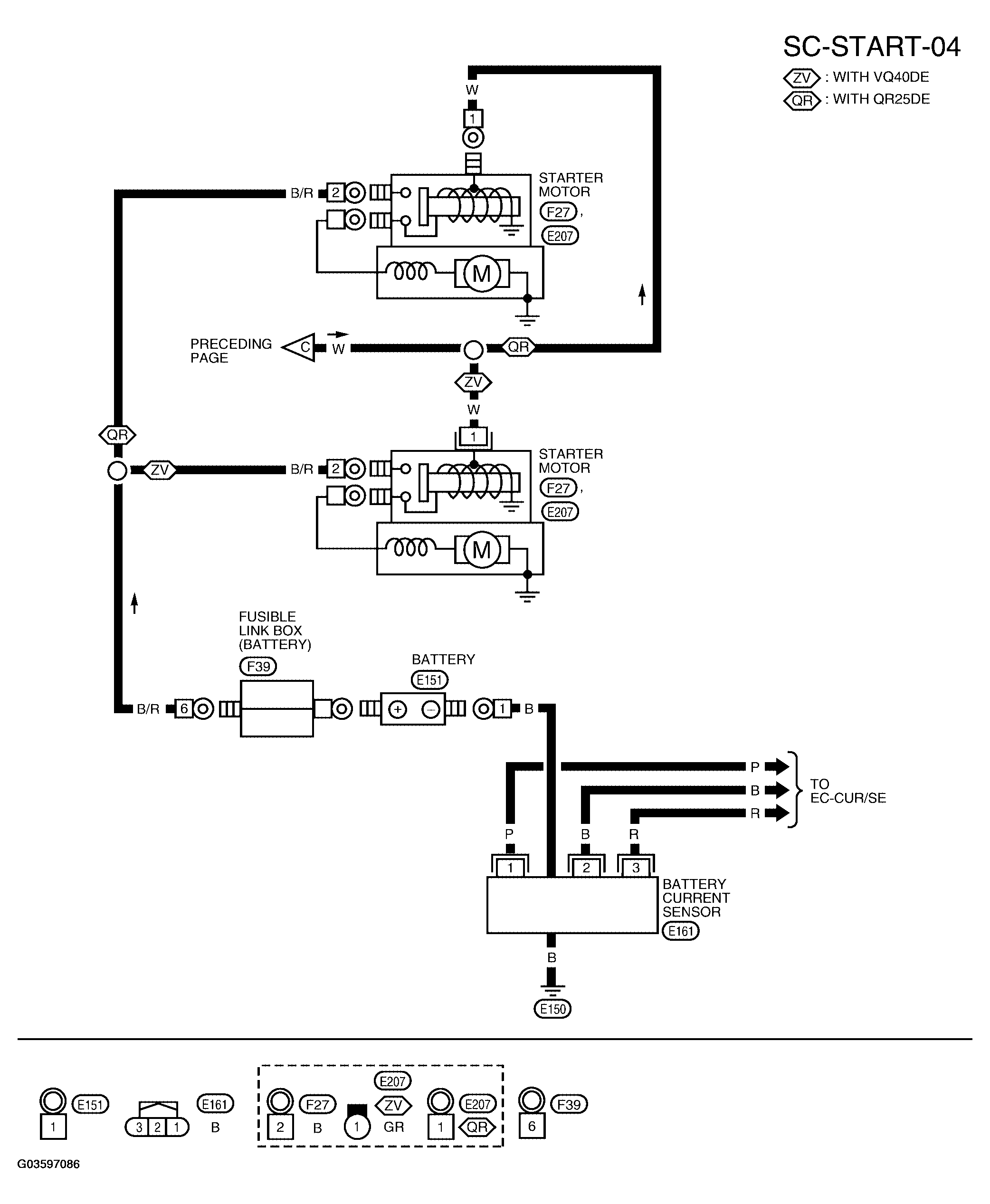

Fig 2: Wiring Diagram (M/T Models) - SC-START-04

Courtesy of NISSAN MOTOR CO., U.S.A.

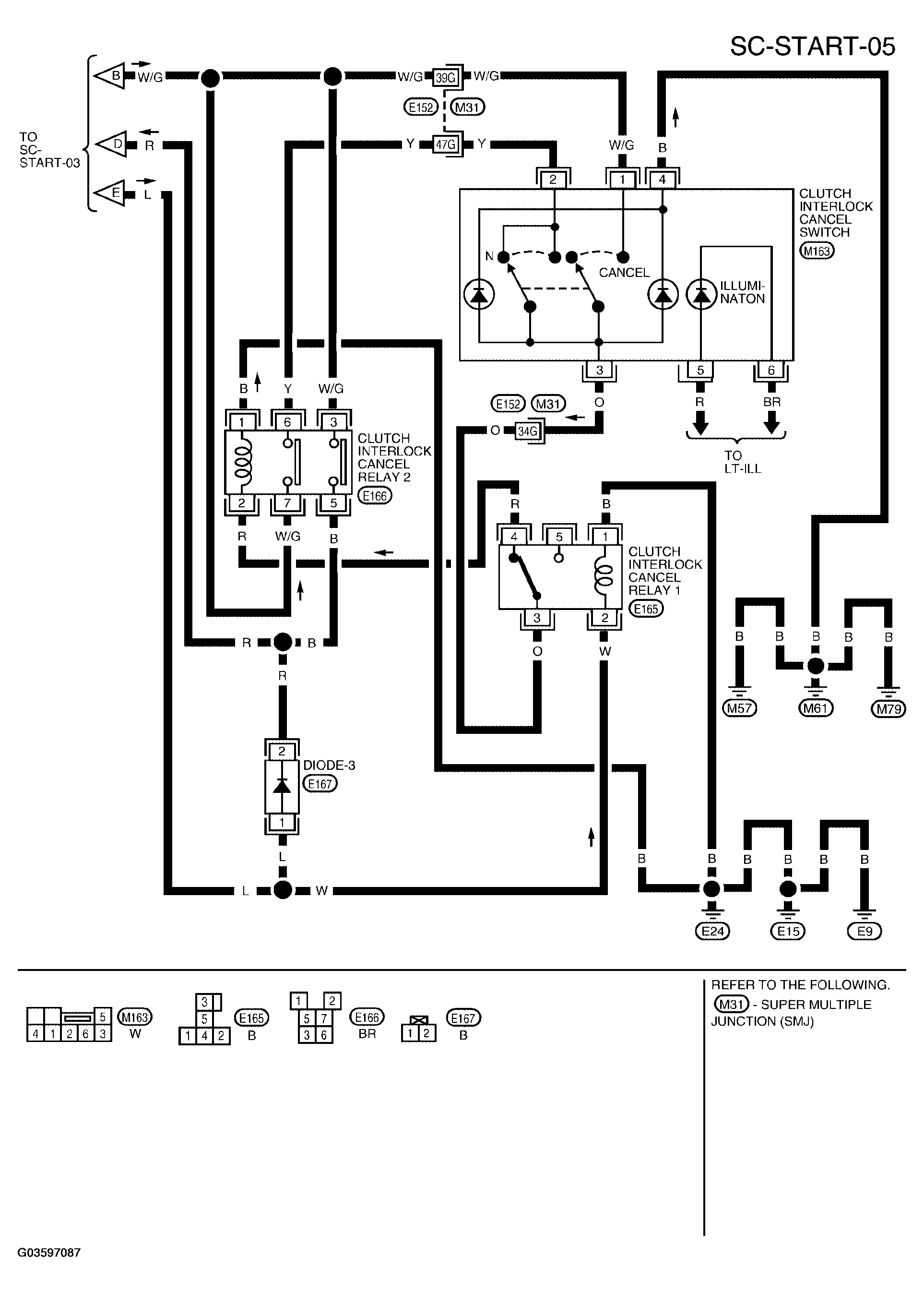

Fig 3: Wiring Diagram (M/T Models) - SC-START-05

Courtesy of NISSAN MOTOR CO., U.S.A.
