Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

Fig 1: CONSULT-II - Select Diag Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

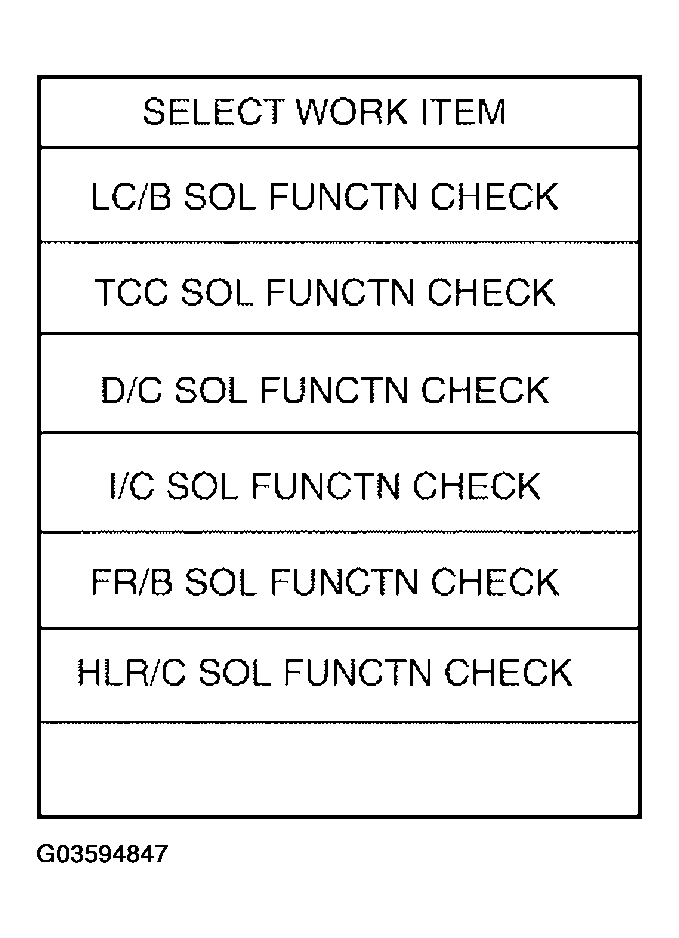

Fig 2: CONSULT-II - Select Work Item Menu Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 3: CONSULT-II - TCC Sol Function Check
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 4: CONSULT-II - TCC Sol Function Check, Out Of Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING" .

  Fig 5: CONSULT-II - TCC Sol Function Check, Testing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

Fig 6: CONSULT-II - TCC Sol Function Check, Stop Vehicle Display
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "Diagnostic Procedure" .

  Fig 7: CONSULT-II - TCC Sol Function Check, NG Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

Fig 8: CONSULT-II - TCC Sol Function Check, OK Display
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, a malfunction may exist. Go to "Diagnostic Procedure" .

  Fig 9: CONSULT-II - TCC Sol Function Check, NG Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
