WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

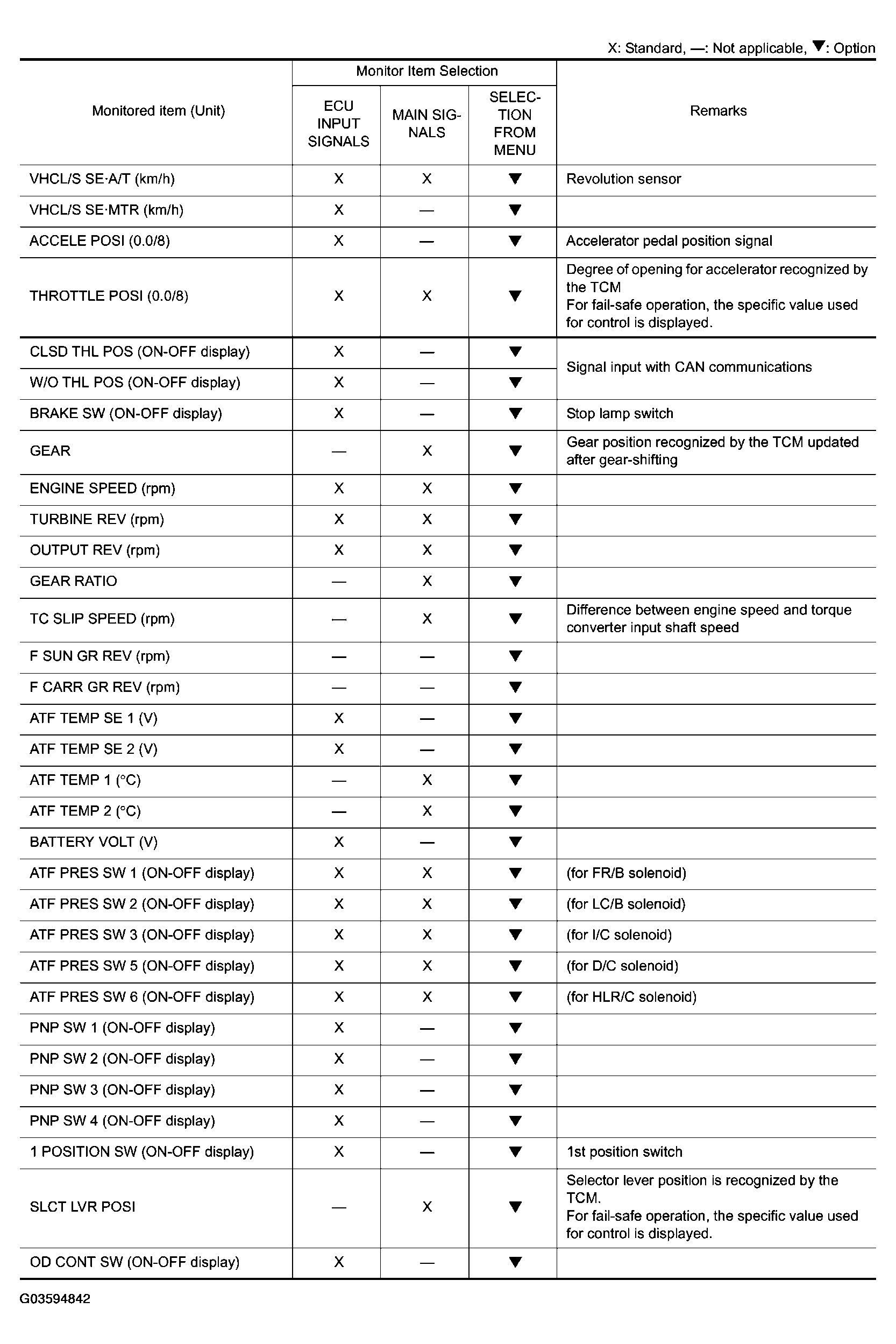

Fig 1: CONSULT-II Display Items List Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

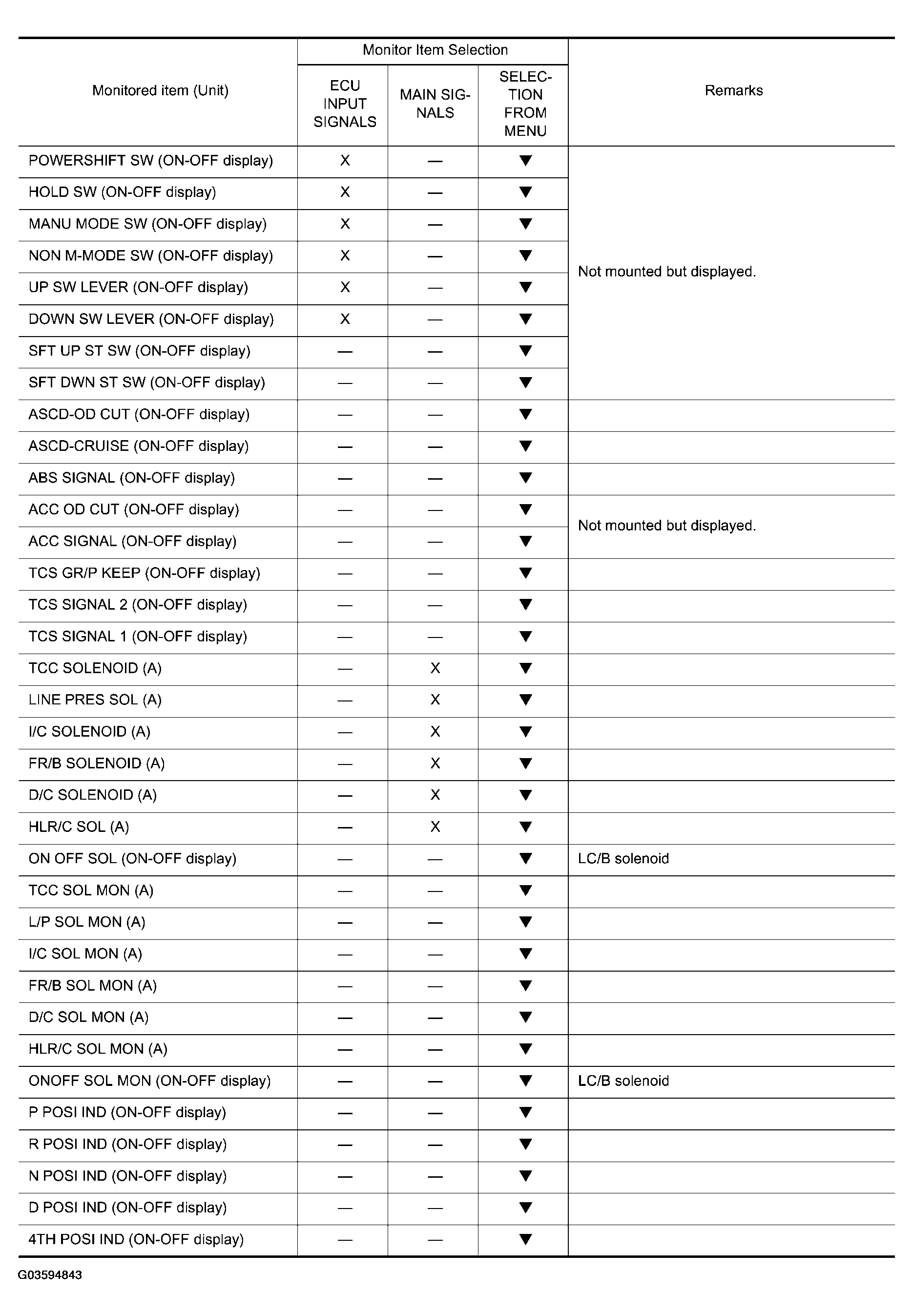

Fig 2: CONSULT-II Display Items List Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

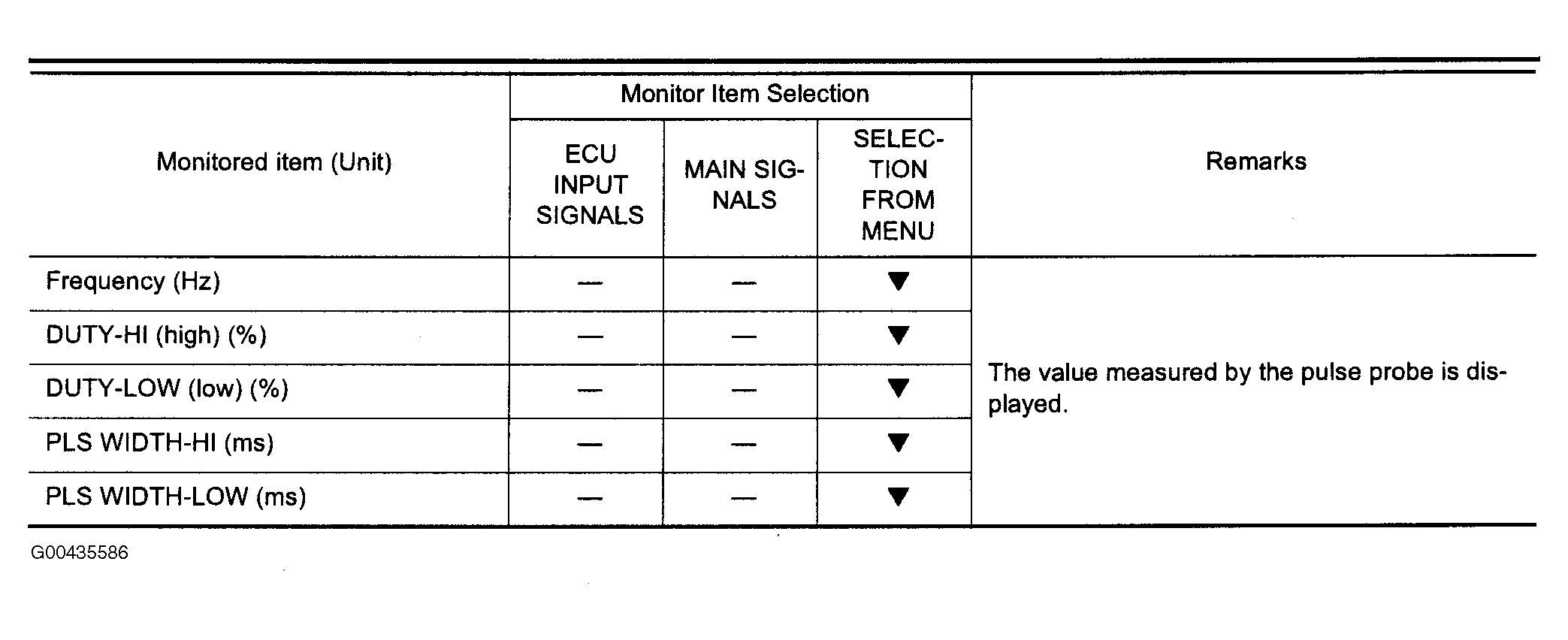

Fig 3: CONSULT-II Display Items List Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

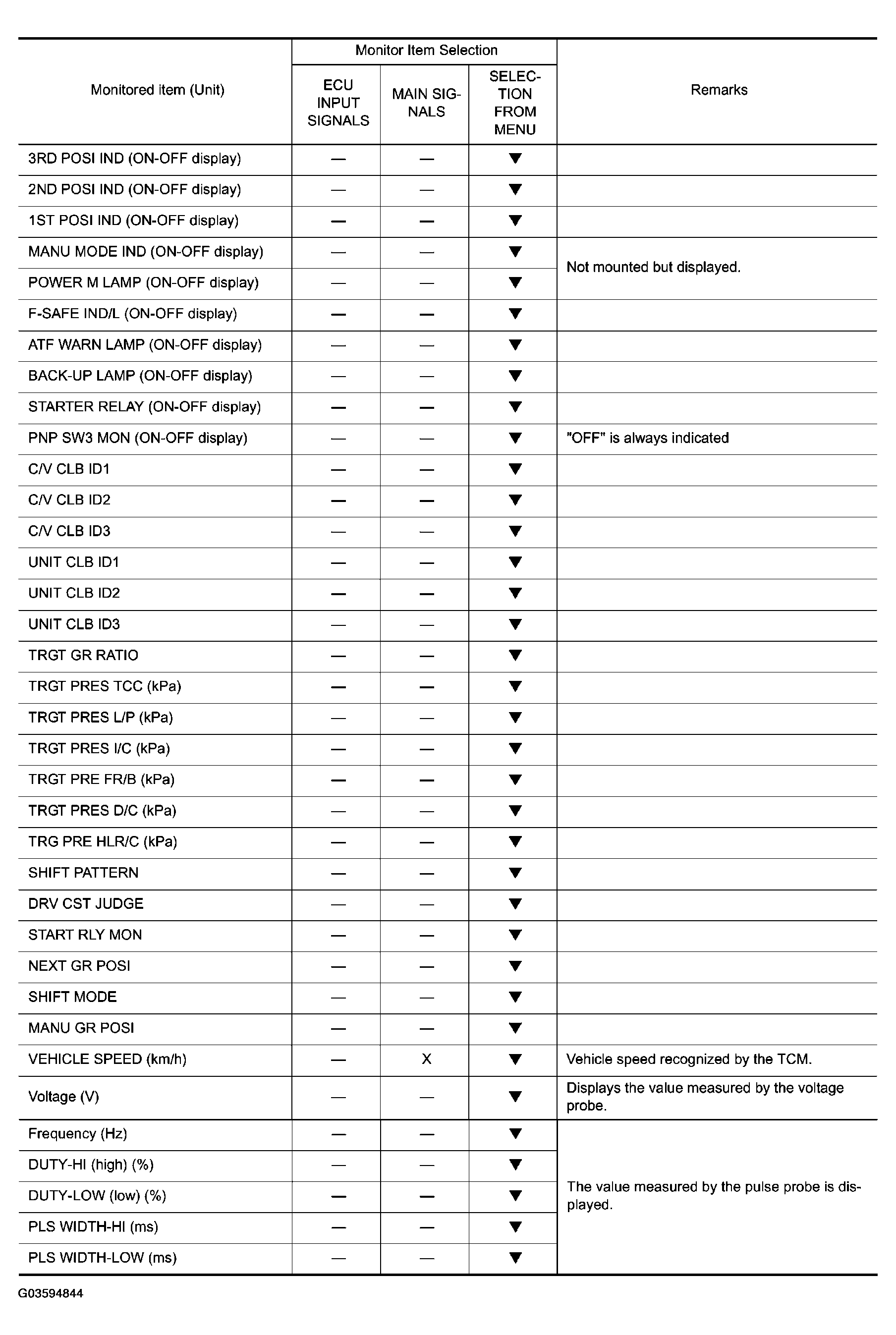

Fig 4: CONSULT-II Display Items List Chart (4 Of 4)
