Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Position the fender protector aside.
Disconnect electrical connector.
Remove nut and pull fog lamp out of front fascia.

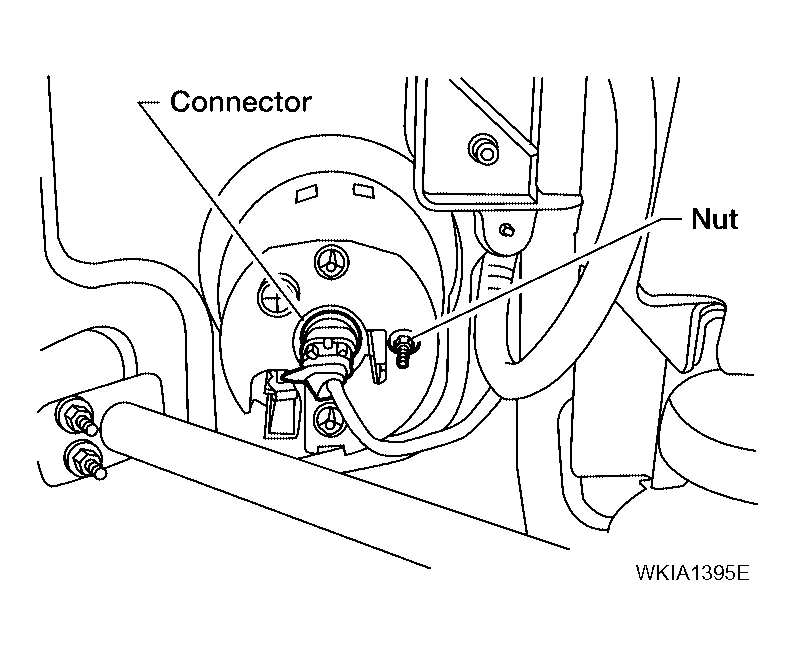

Fig 1: Identifying Fog Lamp Nut & Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
