Oil Pump: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil pump housing from oil pump cover.

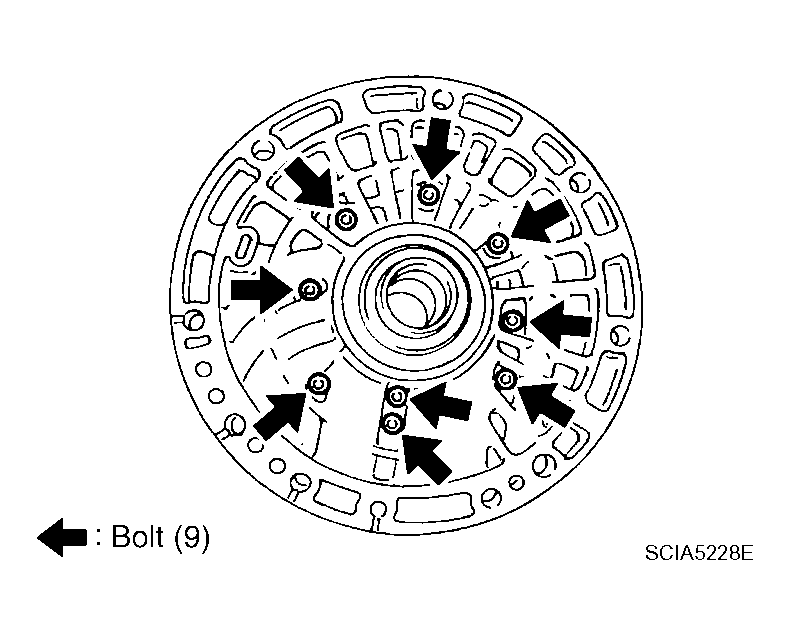

    Fig 1: Removing Oil Pump Housing From Oil Pump Cover
    G04174238Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove oil pump housing oil seal using suitable tool.
    CAUTION: Be careful not to scratch oil pump housing.
    Fig 2: Removing Oil Pump Housing Oil Seal
    G04174239Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove O-ring from oil pump housing.
    Fig 3: Removing O-Ring From Oil Pump Housing
    G04174240Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove O-ring from oil pump cover.

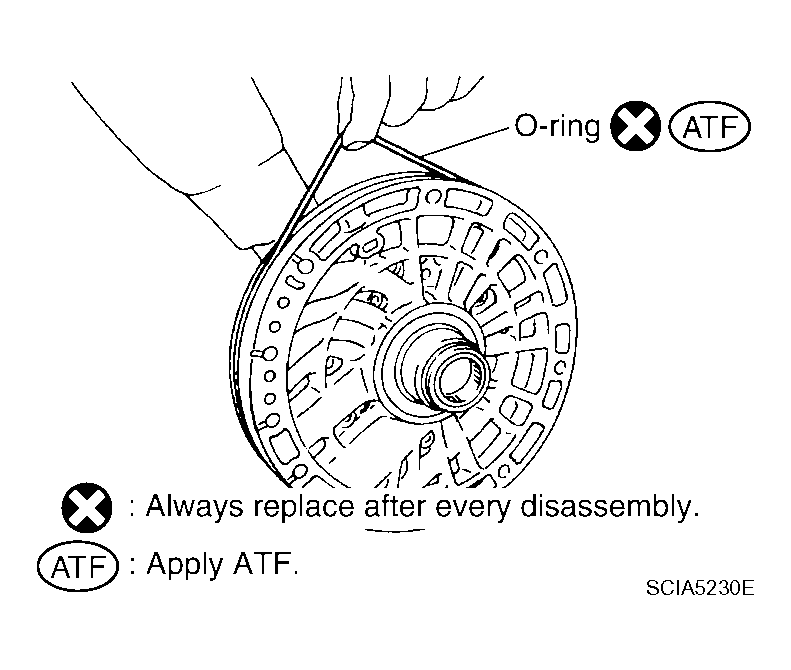

    Fig 4: Identifying O-Ring From Oil Pump Cover
    G04174241Courtesy of NISSAN MOTOR CO., U.S.A.
