Diagnostic Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER SUPPLY
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Connect transfer control unit harness connector.
    3. Check voltage between transfer control unit harness connector terminal and ground.
      POWER SUPPLY (IGNITION SWITCH OFF)

      Connector Terminal Voltage (Approx.)
      M152 16 - Ground 0V
      22 - Ground
      M153 30 - Ground Battery voltage
      Fig 1: Checking Voltage Between Transfer Control Unit Harness Connector Terminal And Ground
      G04174492Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Turn ignition switch "ON". (Do not start engine.)
    5. Check voltage between transfer control unit harness connector terminals and ground.
    POWER SUPPLY (IGNITION SWITCH ON)

    Connector Terminal Voltage (Approx.)
    M152 16 - Ground Battery voltage
    22 - Ground
    M153 30 - Ground 0V
    Fig 2: Checking Voltage Between Transfer Control Unit Harness Connector Terminals And Ground
    G04174493Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 2.

    NG: Check the following. If any items are damaged, repair or replace damaged parts.

    • 10A fuse (No. 59, located in the fuse and relay box). Refer to "POWER SUPPLY ROUTING CIRCUIT ".
    • Harness for short or open between battery and transfer shut off relay harness connector E155 terminal 1.
    • Harness for short or open between transfer shut off relay harness connector E155 terminal 2 and transfer control unit harness connector terminal 30.
    • Harness for short or open between battery and transfer shut off relay harness connector E155 terminal 3.
    • Harness for short or open between transfer shut off relay harness connector E155 terminal 5 and transfer control unit harness connector 22.
    • Transfer shut off relay. Refer to , "COMPONENT INSPECTION ".
  2. CHECK GROUND CIRCUIT
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Disconnect transfer control unit harness connector.
    3. Check continuity between transfer control unit harness connector M152 terminals 3, 6 and M153 terminal 45 and ground.

      Continuity should exist.

      Also check harness for short to power.

    Fig 3: Checking Continuity Between Transfer Control Unit Connector M152 Terminals 3, 6 And M153 Terminal 45 And Ground
    G04174494Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Repair open circuit or short to power in harness or connectors.

  3. CHECK ACTUATOR MOTOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Remove transfer shift high relay and transfer shift low relay. Refer to , "LOCATION OF ELECTRICAL PARTS ".
    3. Check voltage between transfer shift high relay harness connector E46 terminal 5, transfer shift low relay harness connector E47 terminal 5 and ground.
      ACTUATOR MOTOR POWER SUPPLY CIRCUIT (IGNITION SWITCH OFF)

      Connector Terminal Voltage (Approx.)
      E46 5 - Ground Battery voltage
      E47 5 - Ground
      Fig 4: Checking Voltage Between Transfer Shift High Relay Harness Connector E46 Terminal 5 And Ground (Ignition Switch Off)
      G04174495Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Turn ignition switch "ON". (Do not start engine.)
    5. Check voltage between transfer shift high relay harness connector E46 terminal 5, transfer shift low relay harness connector E47 terminal 5 and ground.
    ACTUATOR MOTOR POWER SUPPLY CIRCUIT (IGNITION SWITCH ON)

    Connector Terminal Voltage (Approx.)
    E46 5 - Ground Battery voltage
    E47 5 - Ground
    Fig 5: Checking Voltage Between Transfer Shift High Relay Harness Connector E46 Terminal 5 And Ground (Ignition Switch On)
    G04174496Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Check the following. If any items are damaged, repair or replace damaged parts.

    • 20A fuse [No. 58, located in the fuse and relay box]. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
    • Harness for short or open between battery, transfer shift high harness connector E46 terminal 5 and transfer shift low harness connector E47 terminal 5.
  4. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND TRANSFER SHIFT RELAY
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Disconnect transfer control unit harness connector and transfer control device (actuator motor) harness connector.
    3. Remove transfer shift high relay and transfer shift low relay. Refer to , "LOCATION OF ELECTRICAL PARTS ".
    4. Check continuity between the following terminals.
    • Transfer control unit harness connector M153 terminal 33 and transfer shift high relay harness connector E46 terminal 3.
    • Transfer control unit harness connector M153 terminal 42 and transfer shift low relay harness connector E47 terminal 3.

      Continuity should exist.

      Also check harness for short to ground and short to power.

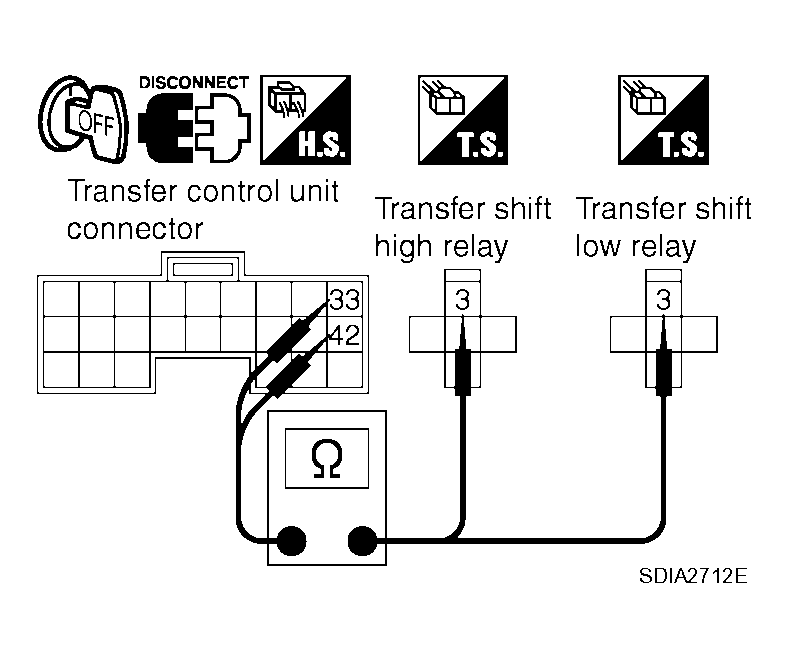

    Fig 6: Checking Continuity Between Transfer Control Unit Connector Terminal And Transfer Shift High Relay Connector Terminal
    G04174497Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 5.

    NG: Repair or replace damaged parts.

  5. CHECK TRANSFER SHIFT RELAY GROUND CIRCUIT
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Remove transfer shift high relay and transfer shift low relay.
    3. Check continuity between transfer shift high relay harness connector E46 terminals 1 and 4 and transfer shift low relay harness connector E47 terminal 1 and 4 and ground.

      Continuity should exist.

      Also check harness for short to power.

    OK or NG

    OK: GO TO 6.

    NG: Repair open circuit or short to power in harness or connectors.

    Fig 7: Checking Continuity Between Transfer Shift High Relay Harness Connector E46 Terminals 1, 4 And Ground
    G04174498Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK TRANSFER CONTROL UNIT

    Check transfer control unit input/output signal. Refer to , "TRANSFER CONTROL UNIT INPUT/OUTPUT SIGNAL REFERENCE VALUES ".

    OK or NG

    OK-1: With CONSULT-II: GO TO 7.

    OK-2: Without CONSULT-II: GO TO  8.

    NG: Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.

  7. PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)

    With CONSULT-II

    1. Turn ignition switch "ON". (Do not start engine.)
    2. Select "SELF-DIAG RESULTS" mode for "ALL MODE AWD/4WD" with CONSULT-II.
    3. Touch "ERASE".
    4. Turn ignition switch "OFF" and wait at least 10 seconds.
    5. Perform the self-diagnosis again.

    Is the "SHIFT ACT CIR [P1819]" displayed?

    YES: Replace transfer control unit. Refer to , "REMOVAL AND INSTALLATION ".

    NO: Inspection End.

  8. PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-II)

    Without CONSULT-II

    1. Perform the self-diagnosis and then erase self-diagnostic results. Refer to , "SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II) " and , "ERASE SELF-DIAGNOSIS ".
    2. Perform the self-diagnosis again.

    Do the self-diagnostic results indicate transfer control device?

    YES: Replace transfer control unit. Refer to , "REMOVAL AND INSTALLATION ".

    NO: Inspection End.
