Memory Storing And KEYFOB Interlock Storing

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Stores the 2 driving positions and shifts to the stored driving position with the memory switch.
Keyfob interlock function is set simultaneously with setting driving position memory. It can set driving position to memory position.

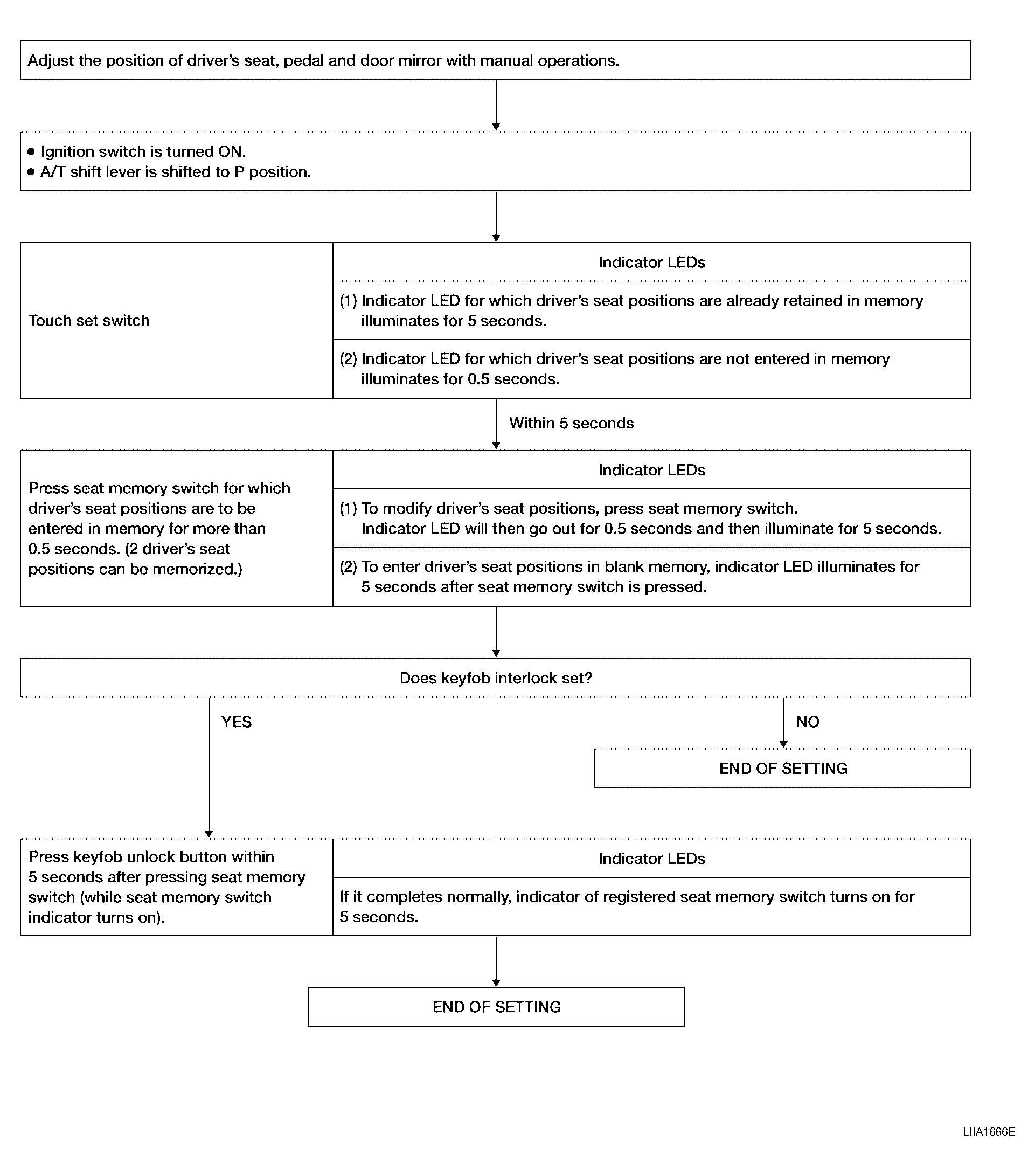

Fig 1: Memory Storing And Keyfob Interlock Storing Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If another keyfob interlock function setting is performed by same key, the newly registered setting is valid.
If a memory position is modified and re-saved, the keyfob interlock function is maintained.
If the keyfob has not been previously programmed to the vehicle, keyfob interlock function cannot set.
