Intelligent Key Battery Inspection

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check by connecting a resistance (approximately 300Ω) so that the current value becomes about 10 mA.

Standard: Approx. 2.5 - 3.0V

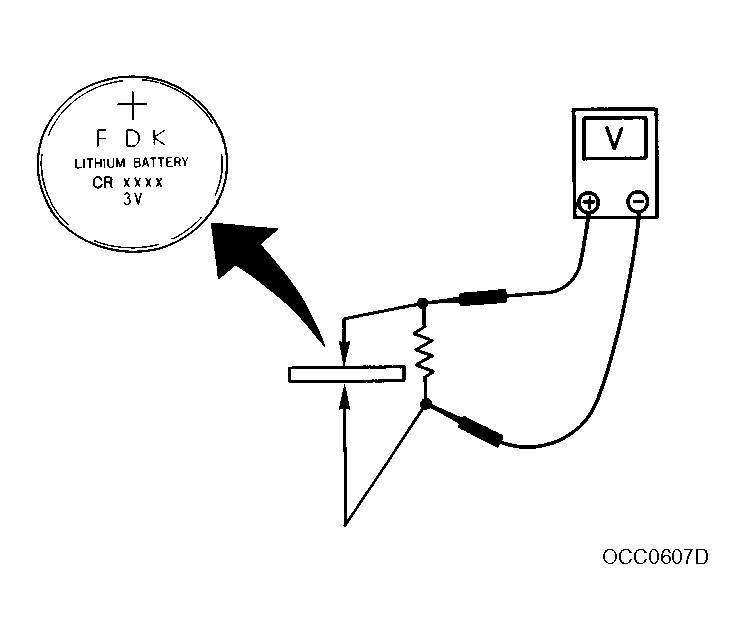

Fig 1: Identifying Intelligent Key Battery
G04182043Courtesy of NISSAN MOTOR CO., U.S.A.
