System Chart

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

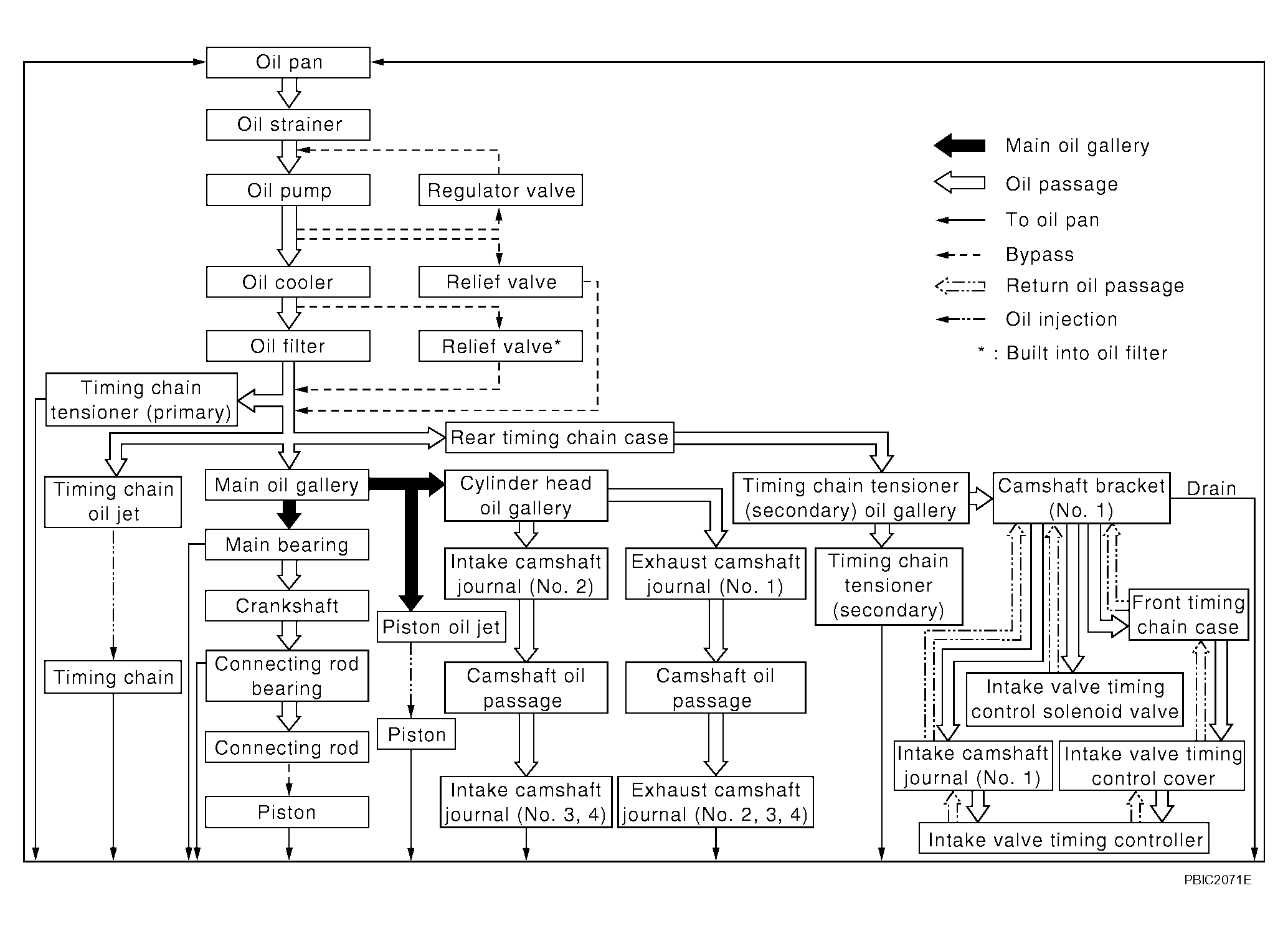

Fig 1: Lubrication System Chart (M/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

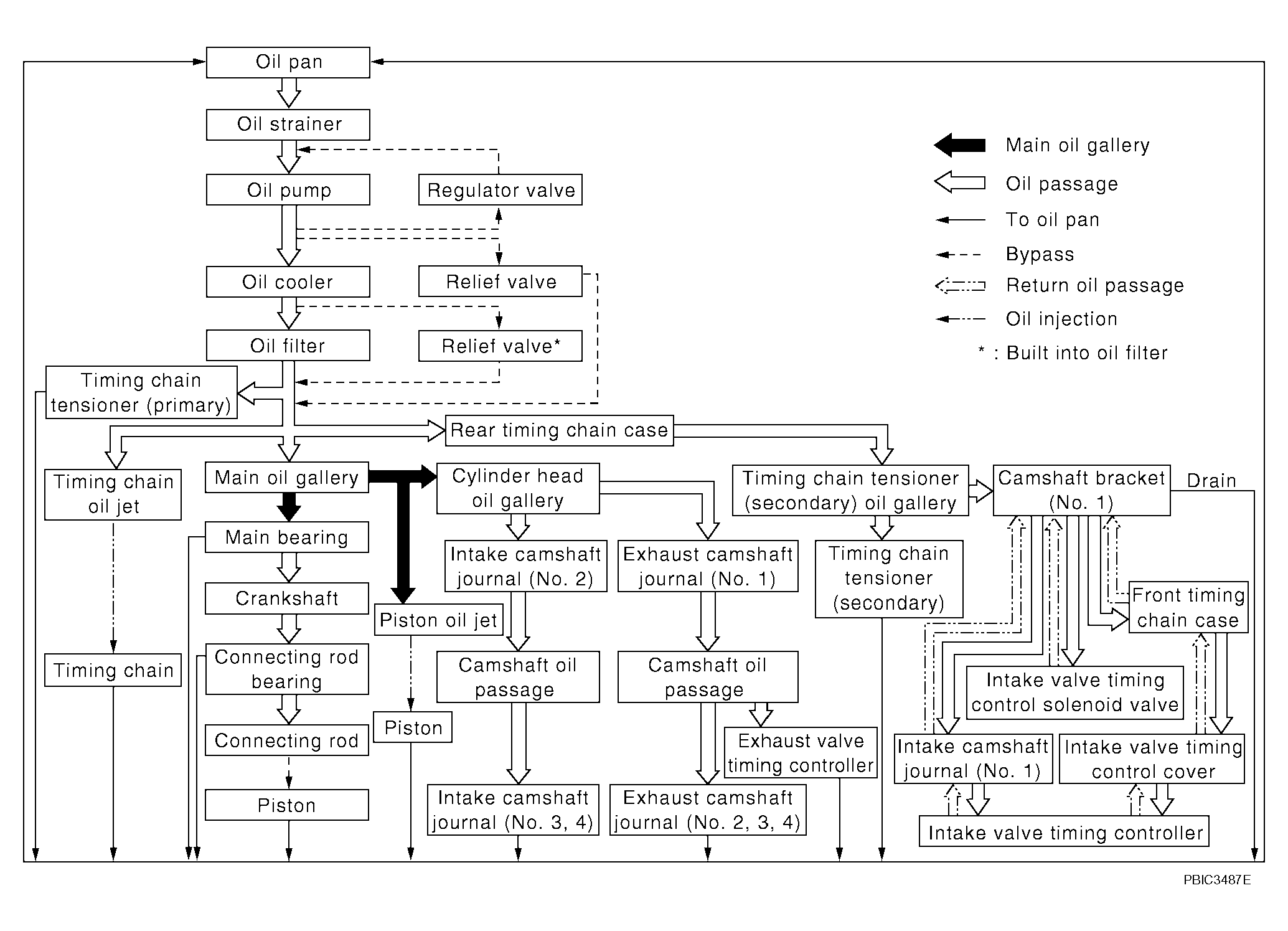

Fig 2: Lubrication System Chart (A/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
