Section 1875 (General Information)
›
Consult-II Checking System
›
Function and System Application
Function and System Application
WARNING:
This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

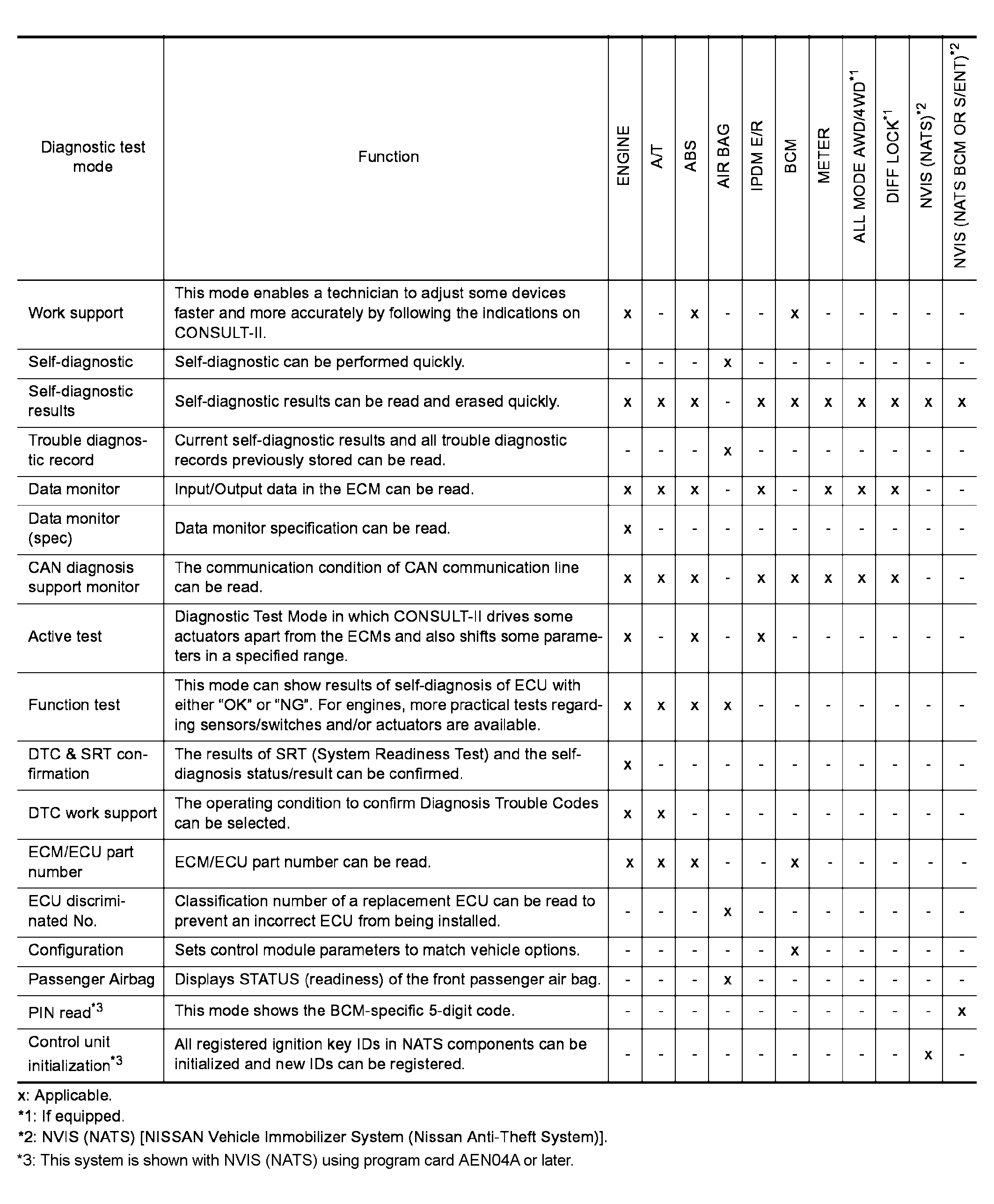

Fig 1: Function And System Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
