Work Flow
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

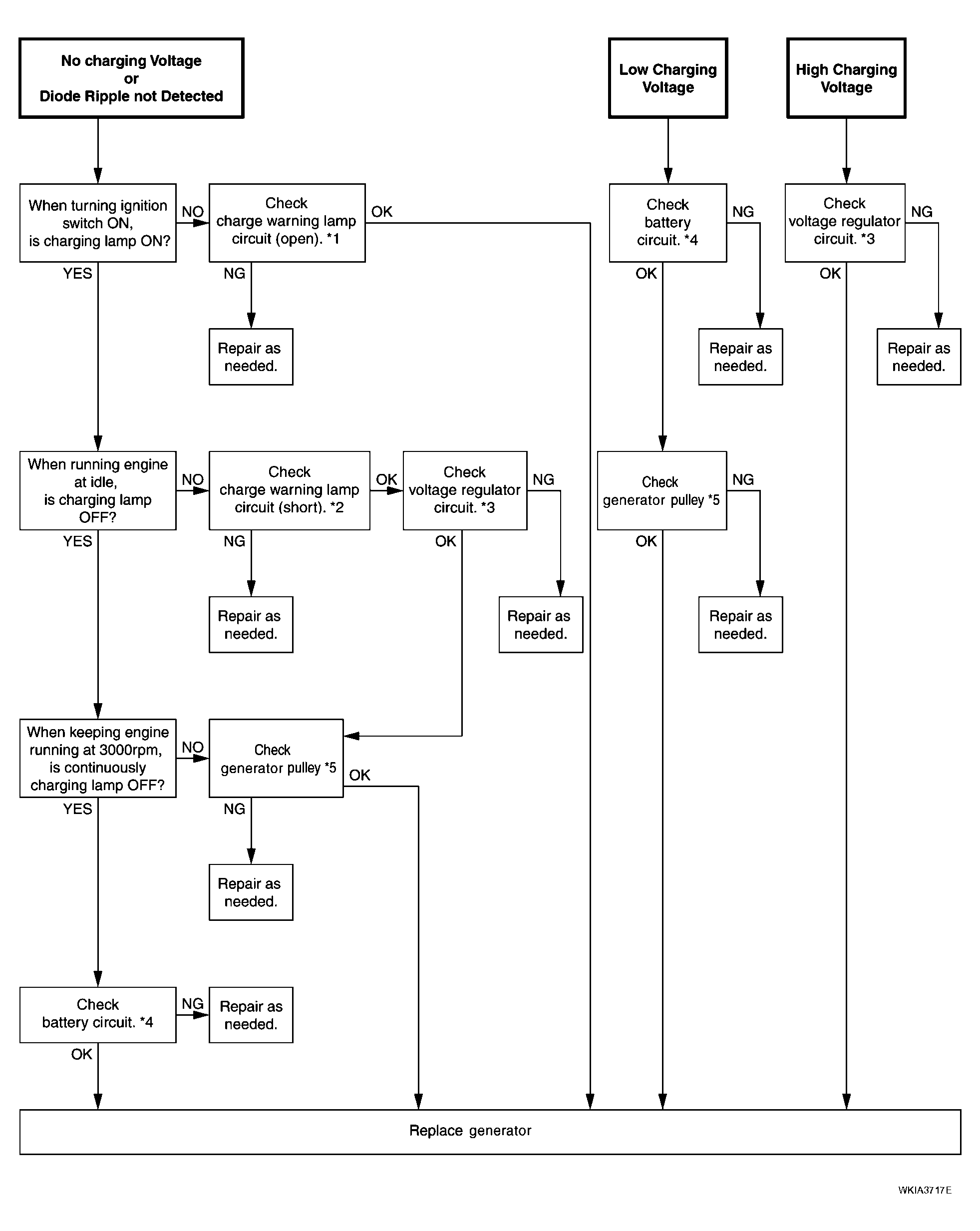

CHARGING SYSTEM - WORK FLOW CHART REFERENCES
| *1. DIAGNOSTIC PROCEDURE 1 |
| *2. DIAGNOSTIC PROCEDURE 2 |
| *3. DIAGNOSTIC PROCEDURE 3 |
| *4. DIAGNOSTIC PROCEDURE 4 |
| *5. GENERATOR PULLEY INSPECTION |
