Vane Pump: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH
  2. DRAIN POWER STEERING FLUID
  3. REMOVE FRONT FENDER APRON SEAL RH (See  REMOVAL  )
  4. REMOVE FAN AND GENERATOR V BELT (See  REMOVAL  )
  5. DISCONNECT NO. 1 OIL RESERVOIR TO PUMP HOSE
    1. Remove the clip and disconnect the No. 1 oil reservoir to pump hose.
      NOTE: Take care not to spill fluid on the V belt.

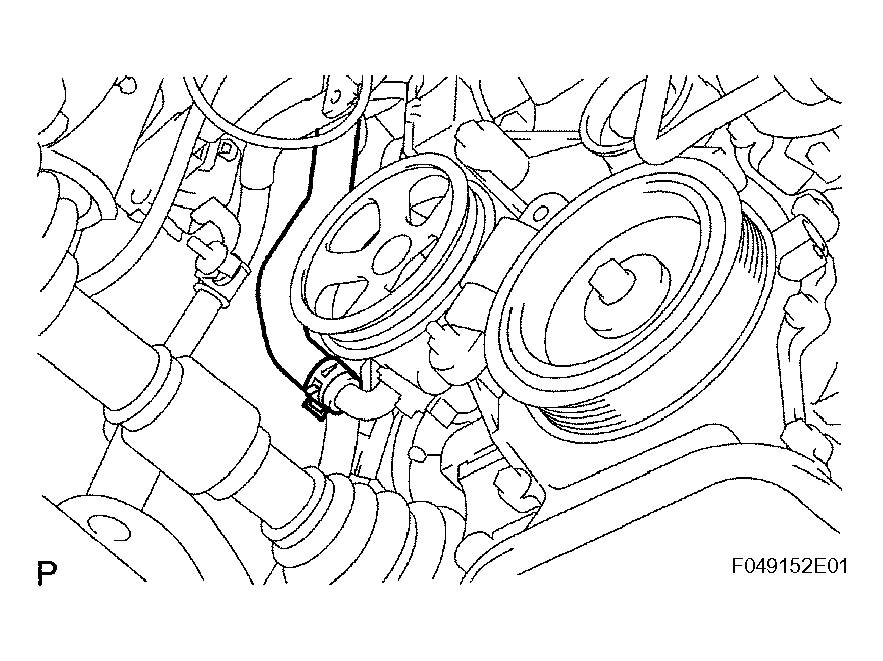

      Fig 1: Disconnecting No. 1 Oil Reservoir To Pump Hose
      G04223375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT PRESSURE FEED TUBE ASSEMBLY
    1. Remove the bolt and disconnect the pressure feed tube from the pump bracket rear.
    2. Using a 27 mm wrench to hold the pressure port union, remove the union bolt and gasket.

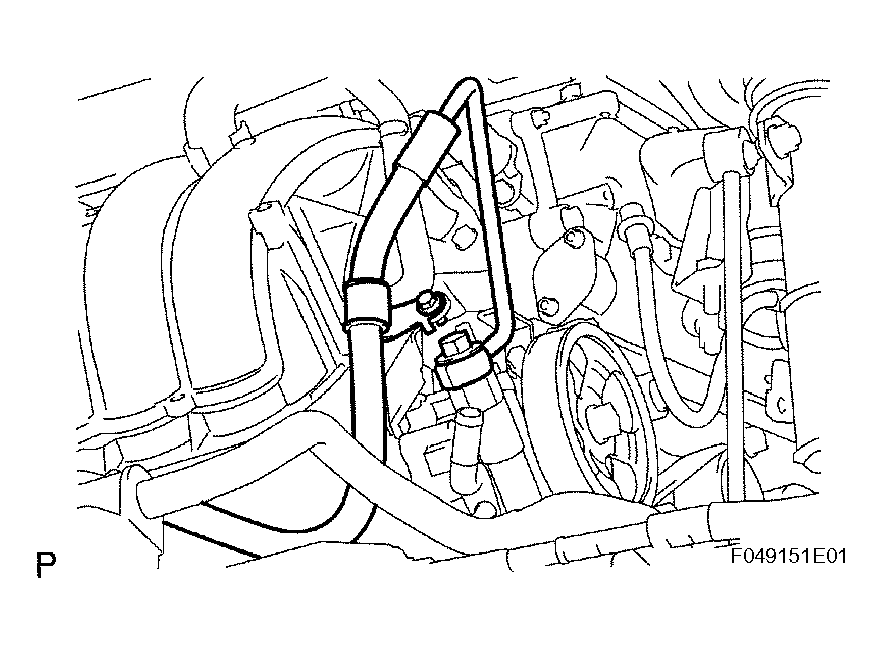

    Fig 2: Disconnecting Pressure Feed Tube Assembly
    G04223376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE VANE PUMP ASSEMBLY
    1. Disconnect the connector from the oil pressure switch.
    2. Using SST and a 14 mm deep socket, loosen the 2 bolts.

      SST 09249-63010

    3. Remove the vane pump.

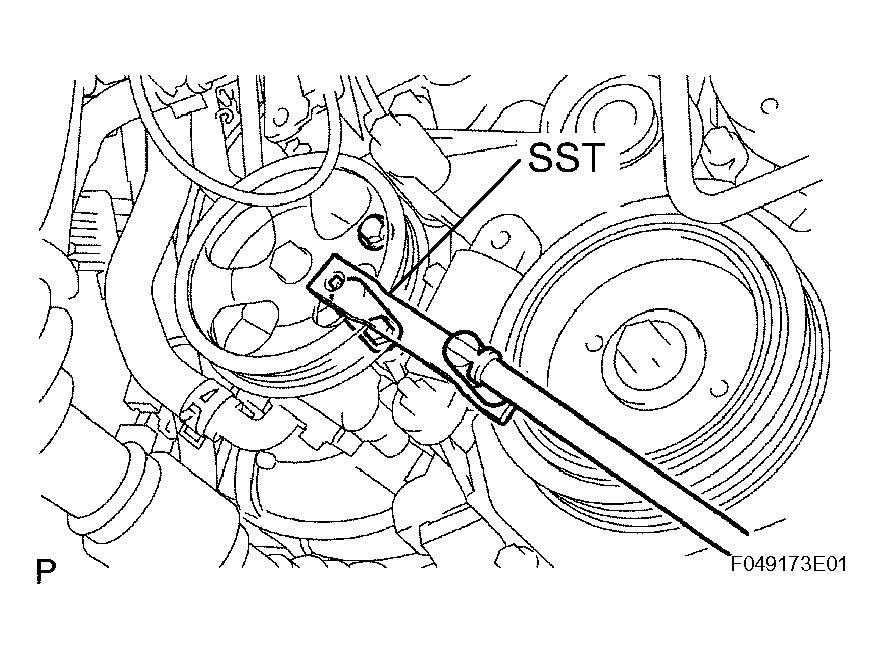

    Fig 3: Removing Vane Pump Assembly
    G04223377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
