Removal and Installation for Compressor: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

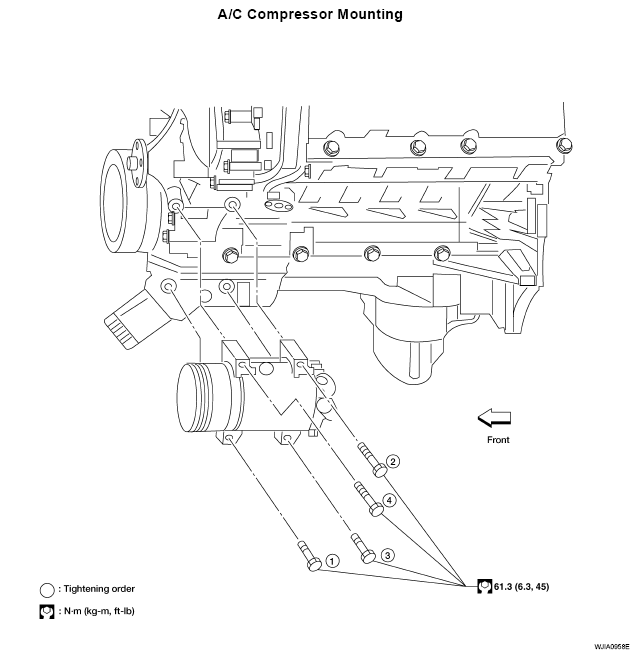

Fig 1: A/C Compressor Mounting Bolts And Torque Specification
