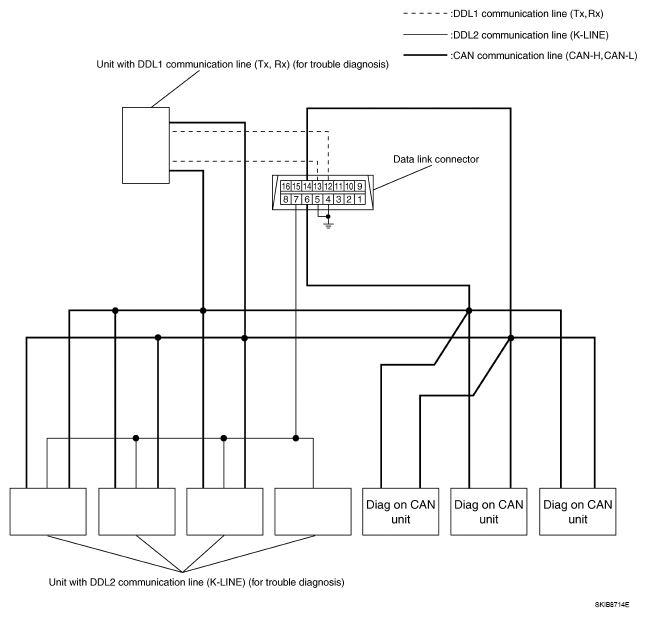

System Diagram
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION REFERENCE
| Name | Harness | Description |
|---|---|---|
| DDL1 | Tx Rx |
It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) |
| DDL2 | K-LINE | It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) |
| Diag on CAN | CAN-H CAN-L |
It is used for trouble diagnosis and control. |
