Section 2179 (Security Control System): Wiring Diagram: NVIS: Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

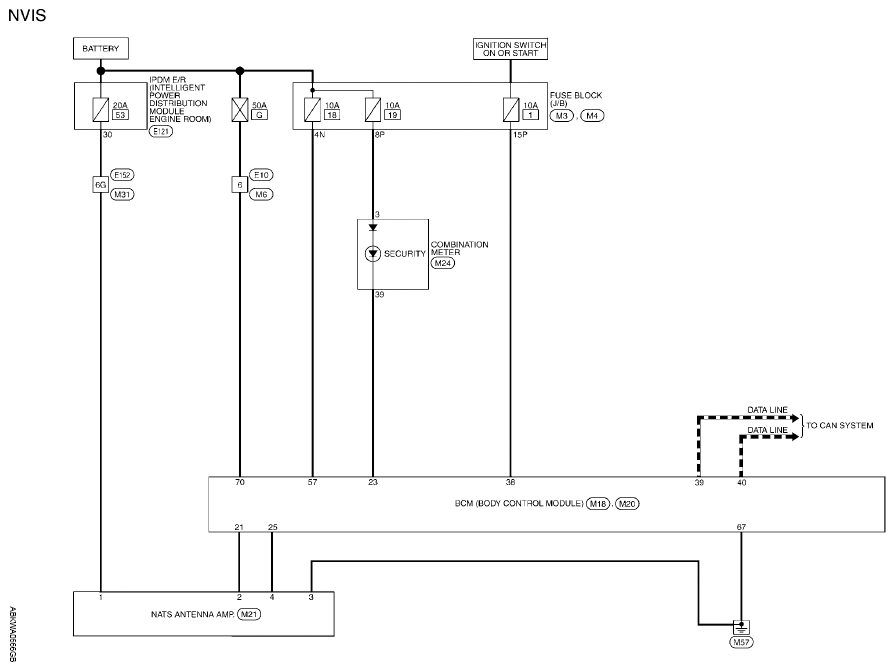

Fig 1: NVIS Wiring Diagram

Fig 2: Identifying NVIS Connectors (1 Of 3)

Fig 3: Identifying NVIS Connectors (2 Of 3)

Fig 4: Identifying NVIS Connectors (3 Of 3)
