WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

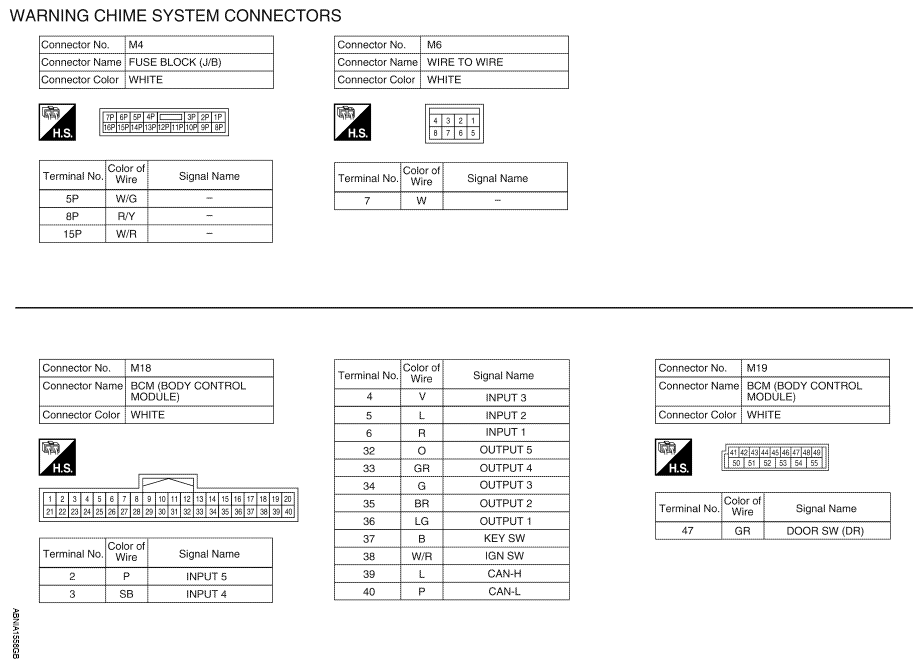

Fig 1: Identifying Warning Chime System Connector (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

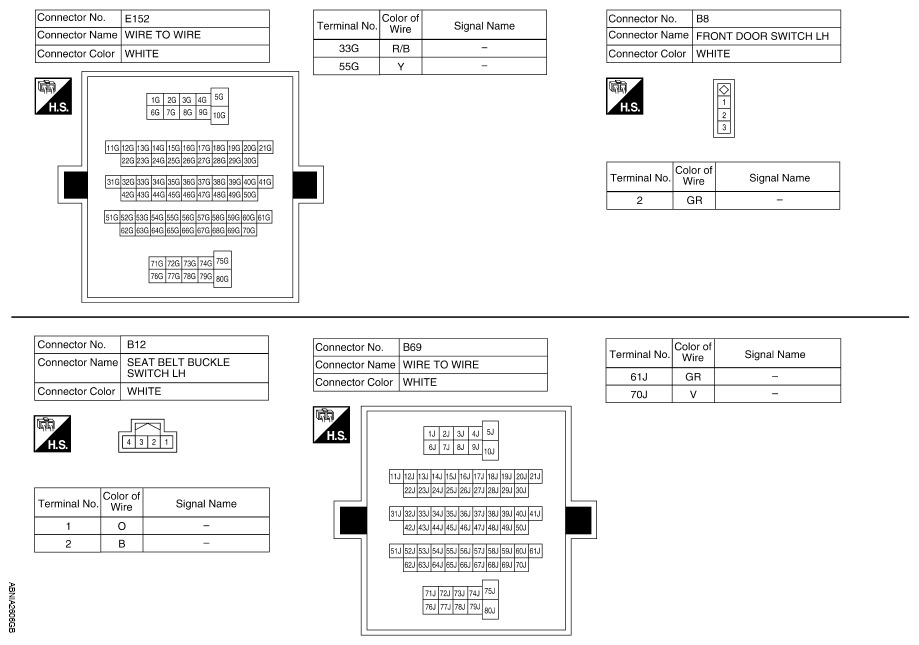

Fig 2: Identifying Warning Chime System Connector (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

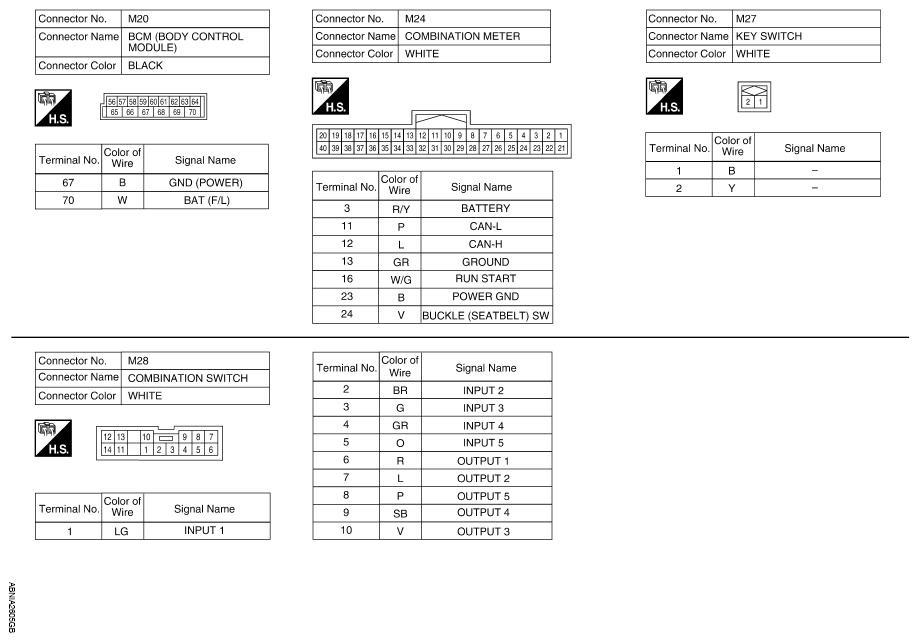

Fig 3: Identifying Warning Chime System Connector (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

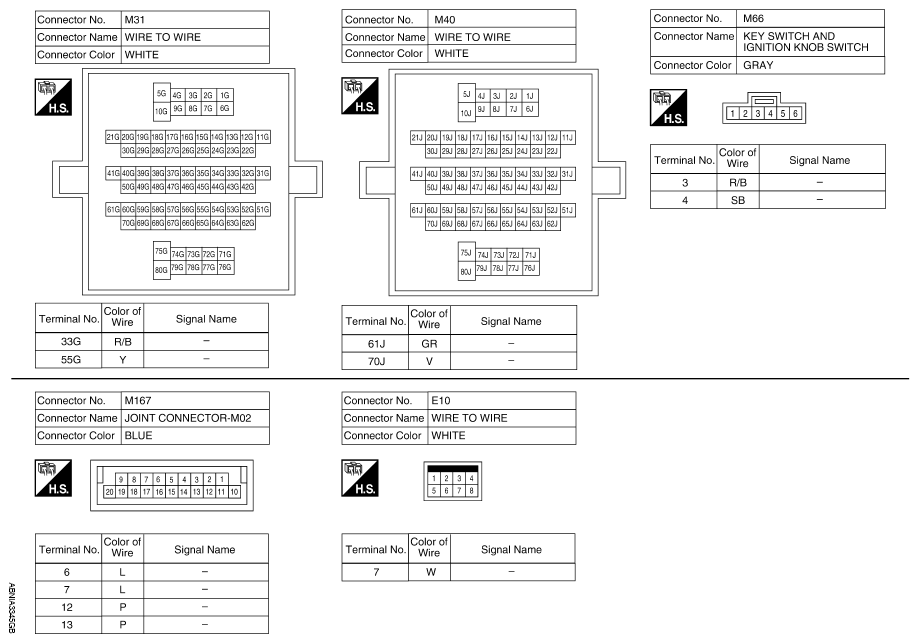

Fig 4: Identifying Warning Chime System Connector (4 Of 4)
