ECM Inspection Chart

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

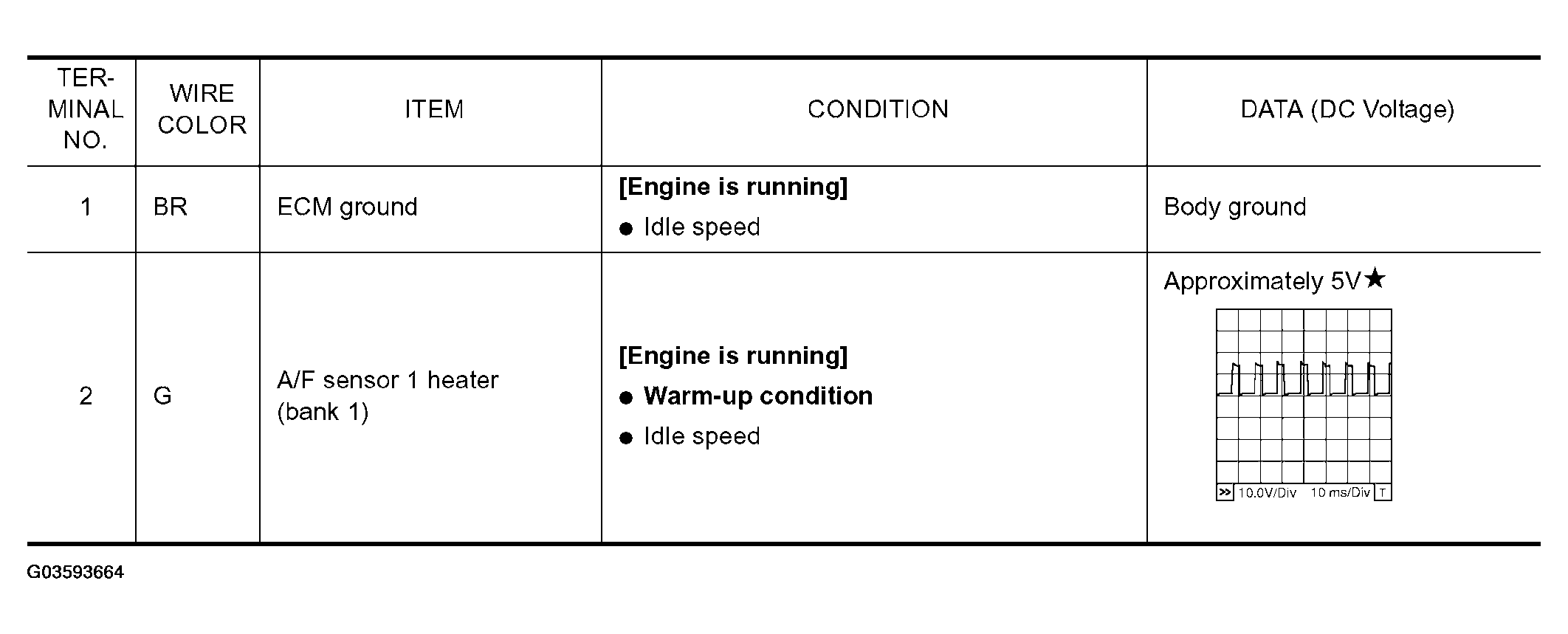

Fig 1: ECM Inspection Reference Values Chart (1 Of 10)

G03593664

Courtesy of NISSAN MOTOR CO., U.S.A.

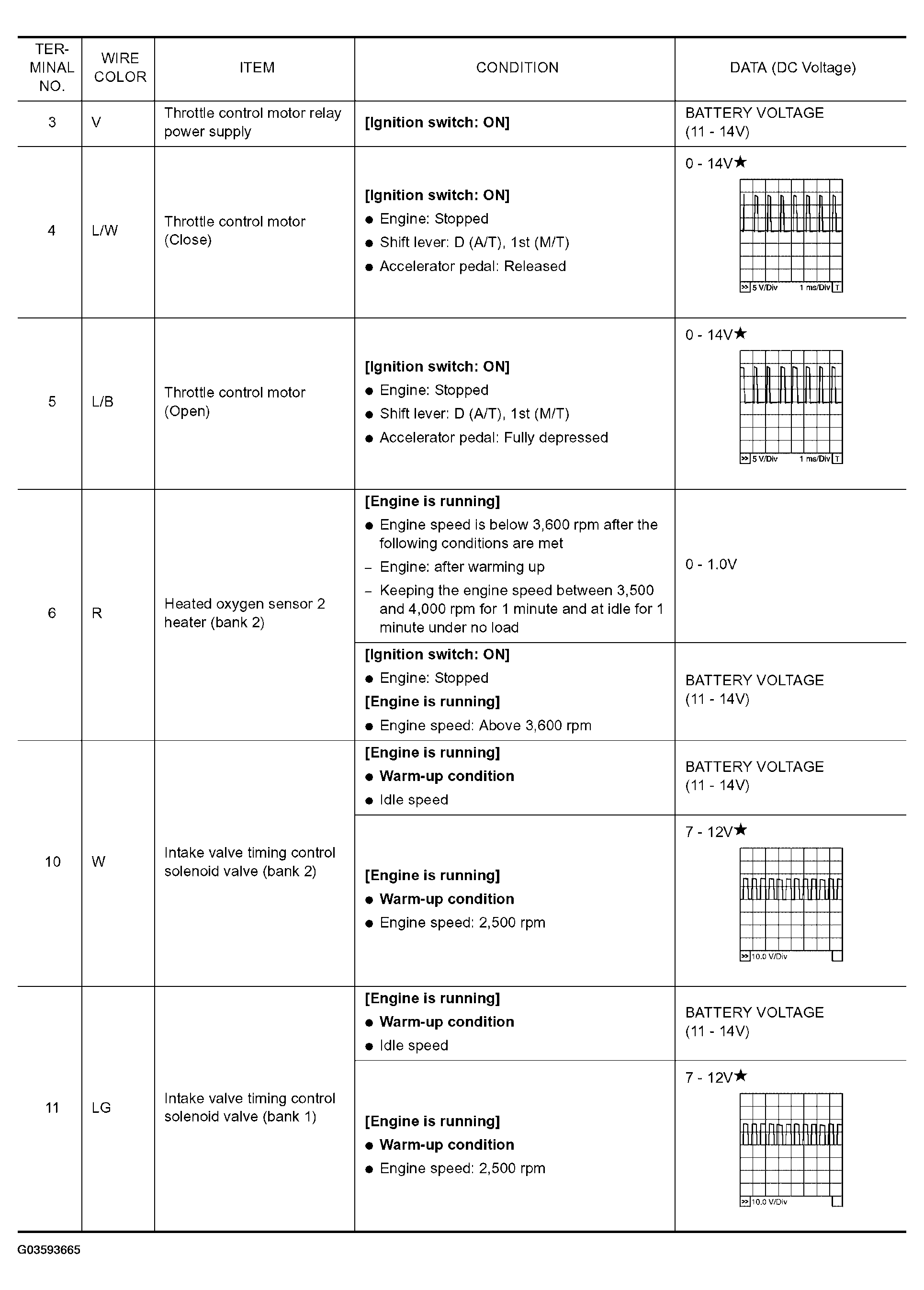

Fig 2: ECM Inspection Reference Values Chart (2 Of 10)

G03593665

Courtesy of NISSAN MOTOR CO., U.S.A.

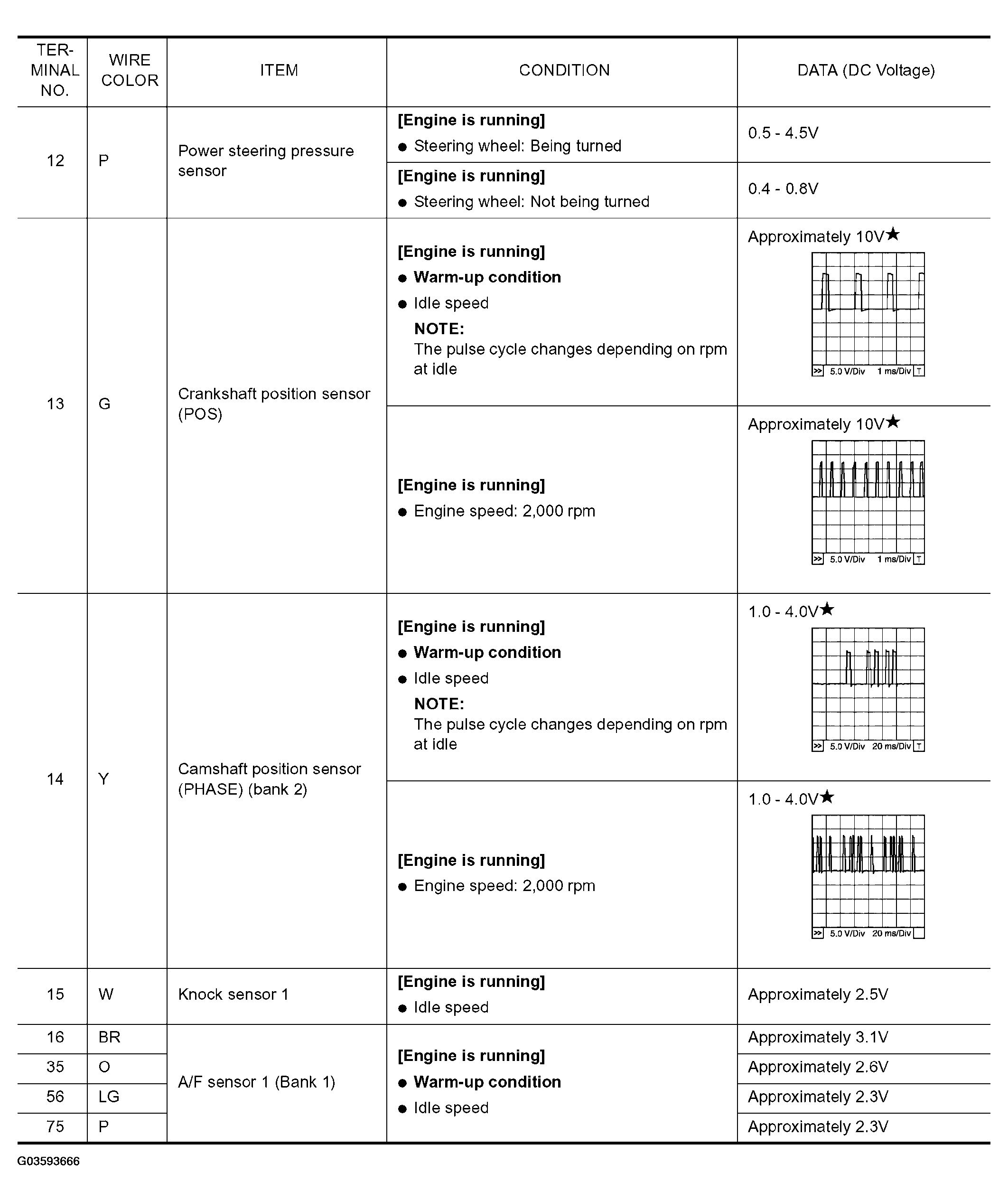

Fig 3: ECM Inspection Reference Values Chart (3 Of 10)

G03593666

Courtesy of NISSAN MOTOR CO., U.S.A.

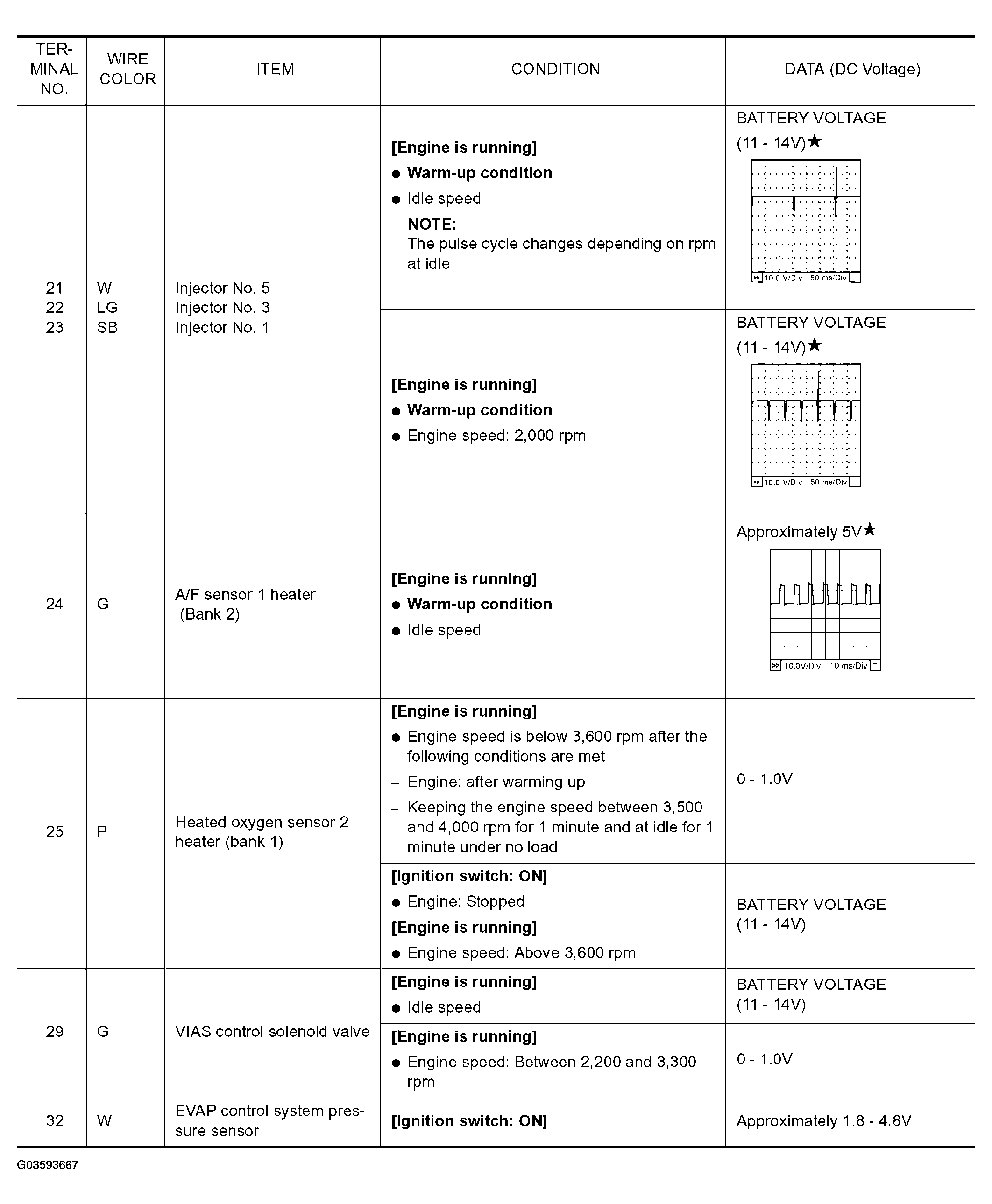

Fig 4: ECM Inspection Reference Values Chart (4 Of 10)

G03593667

Courtesy of NISSAN MOTOR CO., U.S.A.

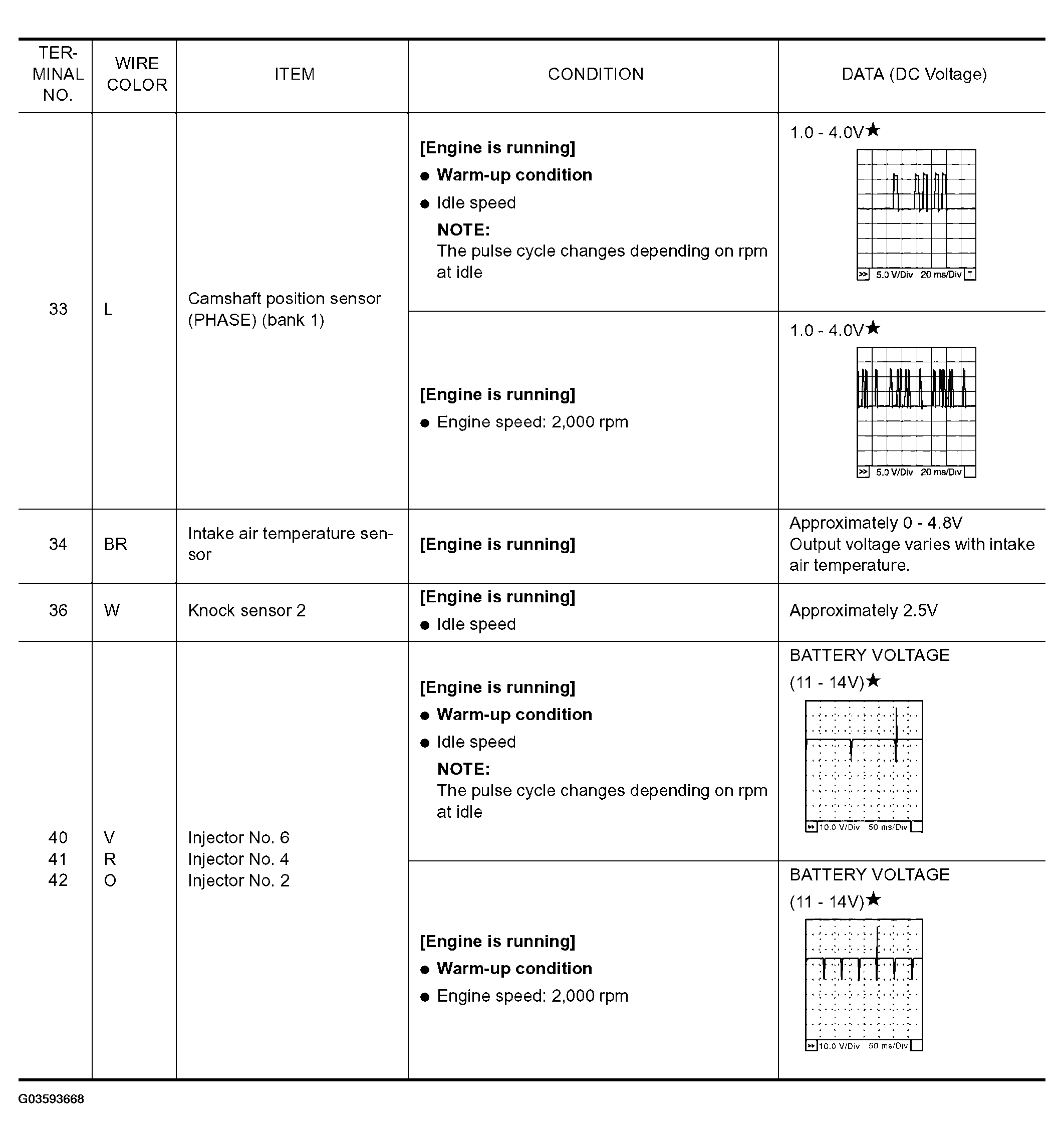

Fig 5: ECM Inspection Reference Values Chart (5 Of 10)

G03593668

Courtesy of NISSAN MOTOR CO., U.S.A.

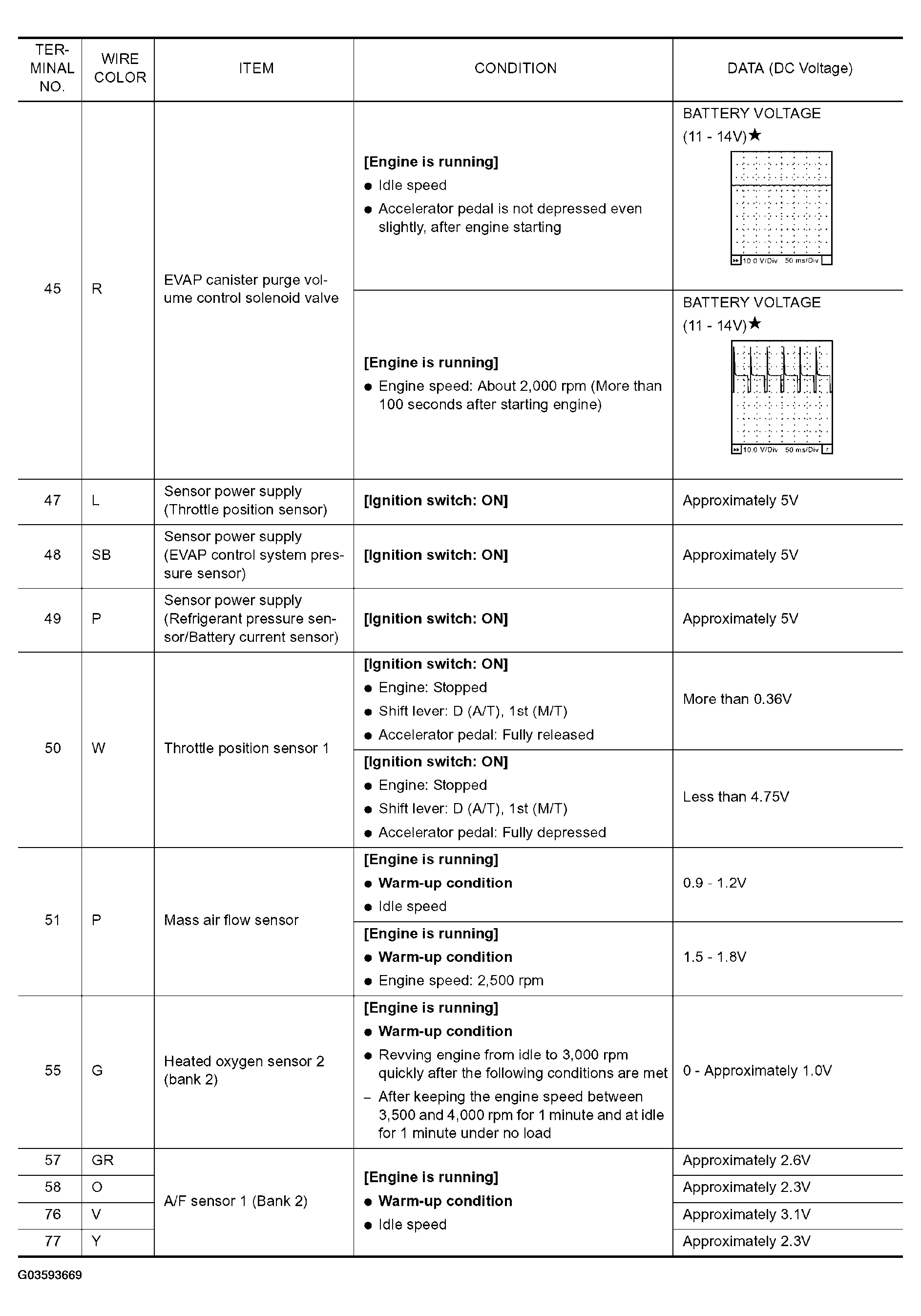

Fig 6: ECM Inspection Reference Values Chart (6 Of 10)

G03593669

Courtesy of NISSAN MOTOR CO., U.S.A.

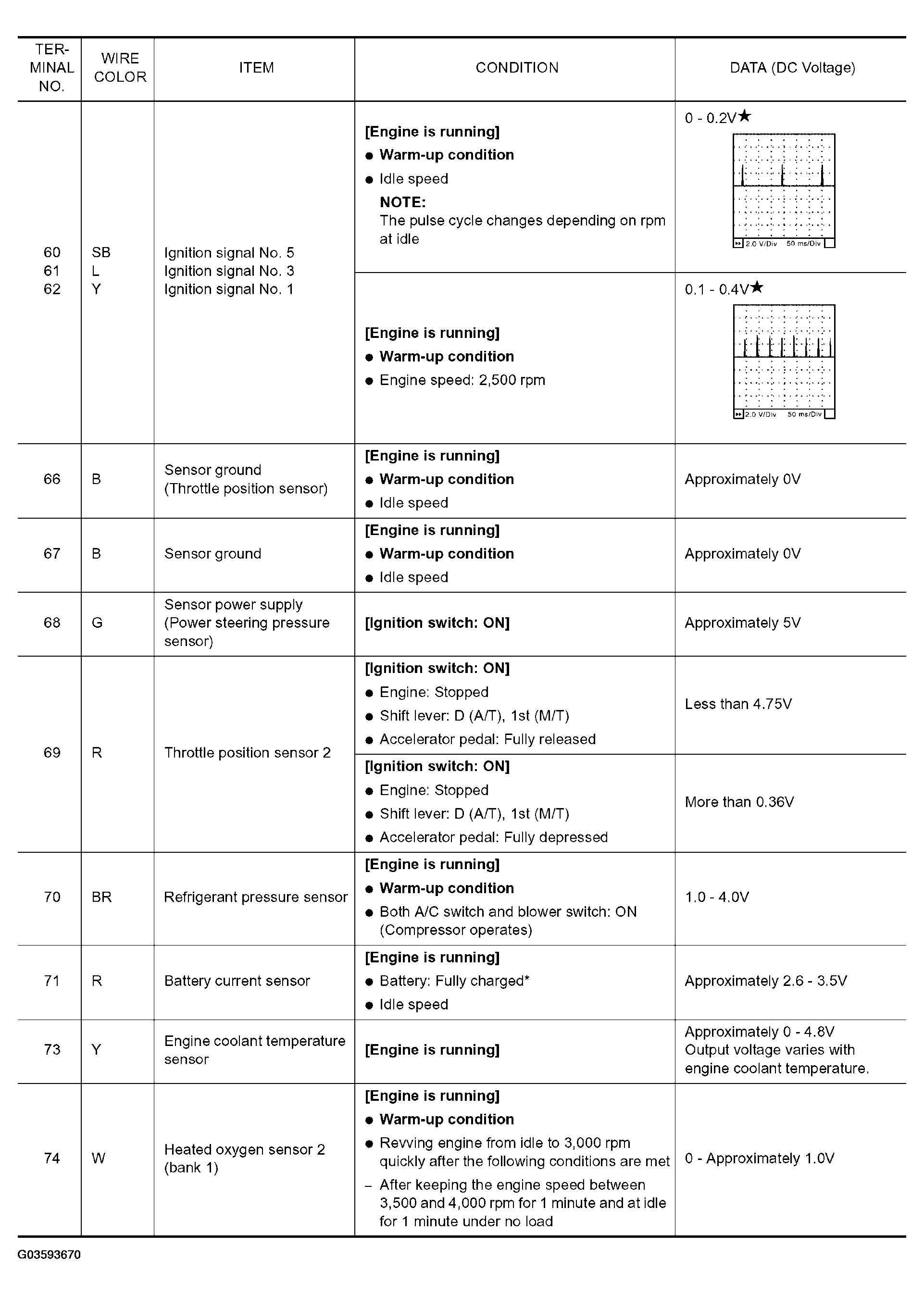

Fig 7: ECM Inspection Reference Values Chart (7 Of 10)

G03593670

Courtesy of NISSAN MOTOR CO., U.S.A.

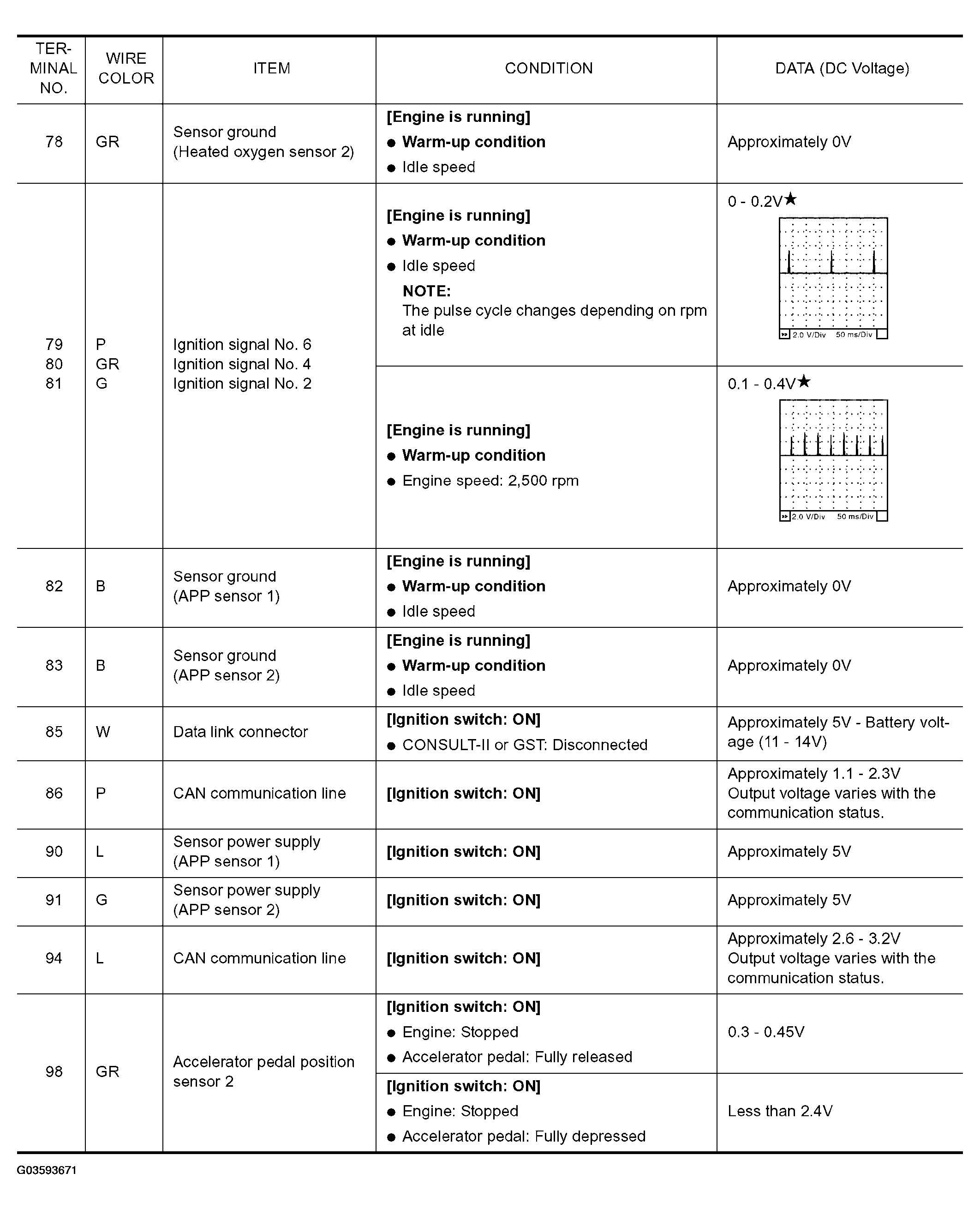

Fig 8: ECM Inspection Reference Values Chart (8 Of 10)

G03593671

Courtesy of NISSAN MOTOR CO., U.S.A.

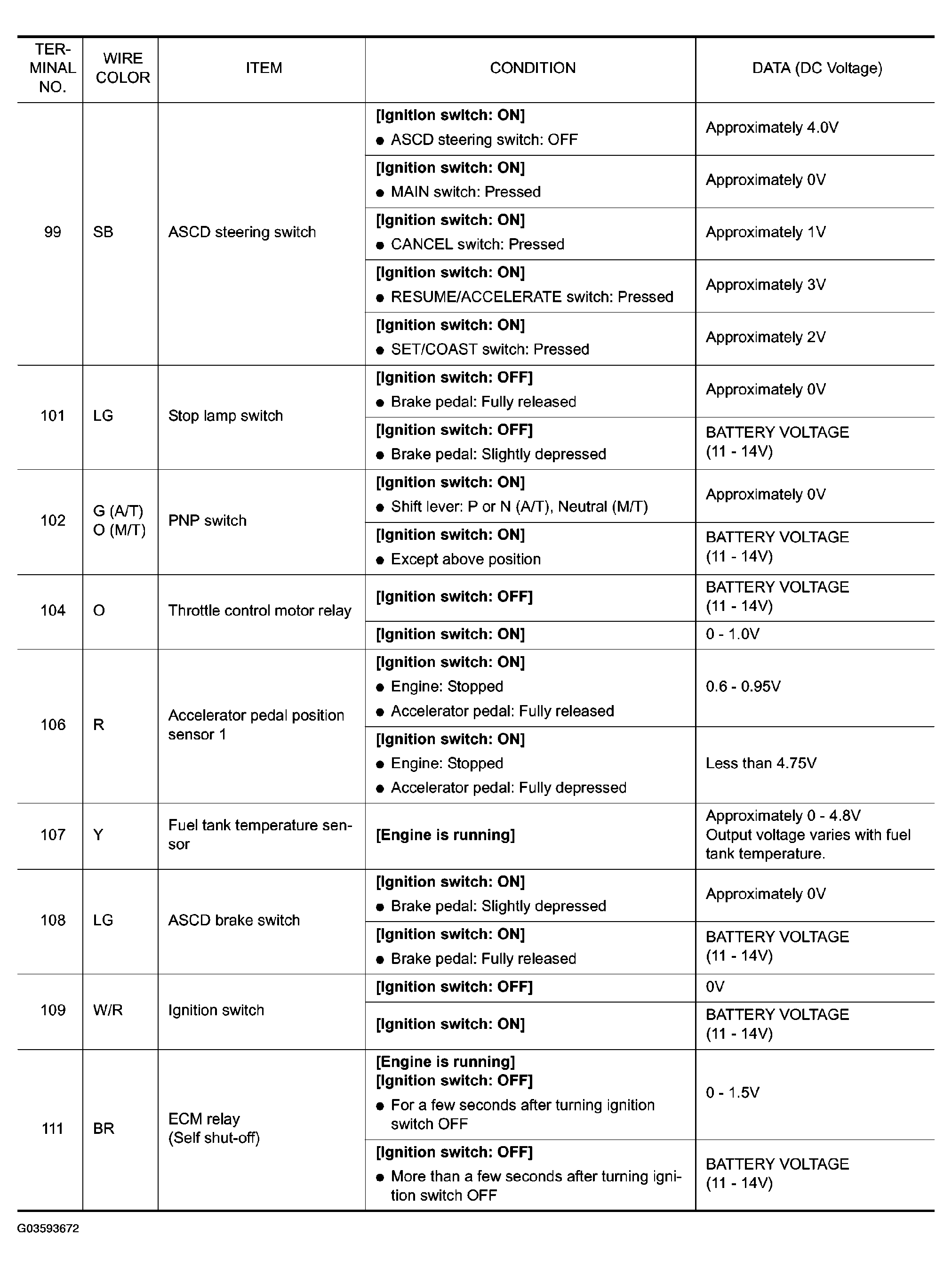

Fig 9: ECM Inspection Reference Values Chart (9 Of 10)

G03593672

Courtesy of NISSAN MOTOR CO., U.S.A.

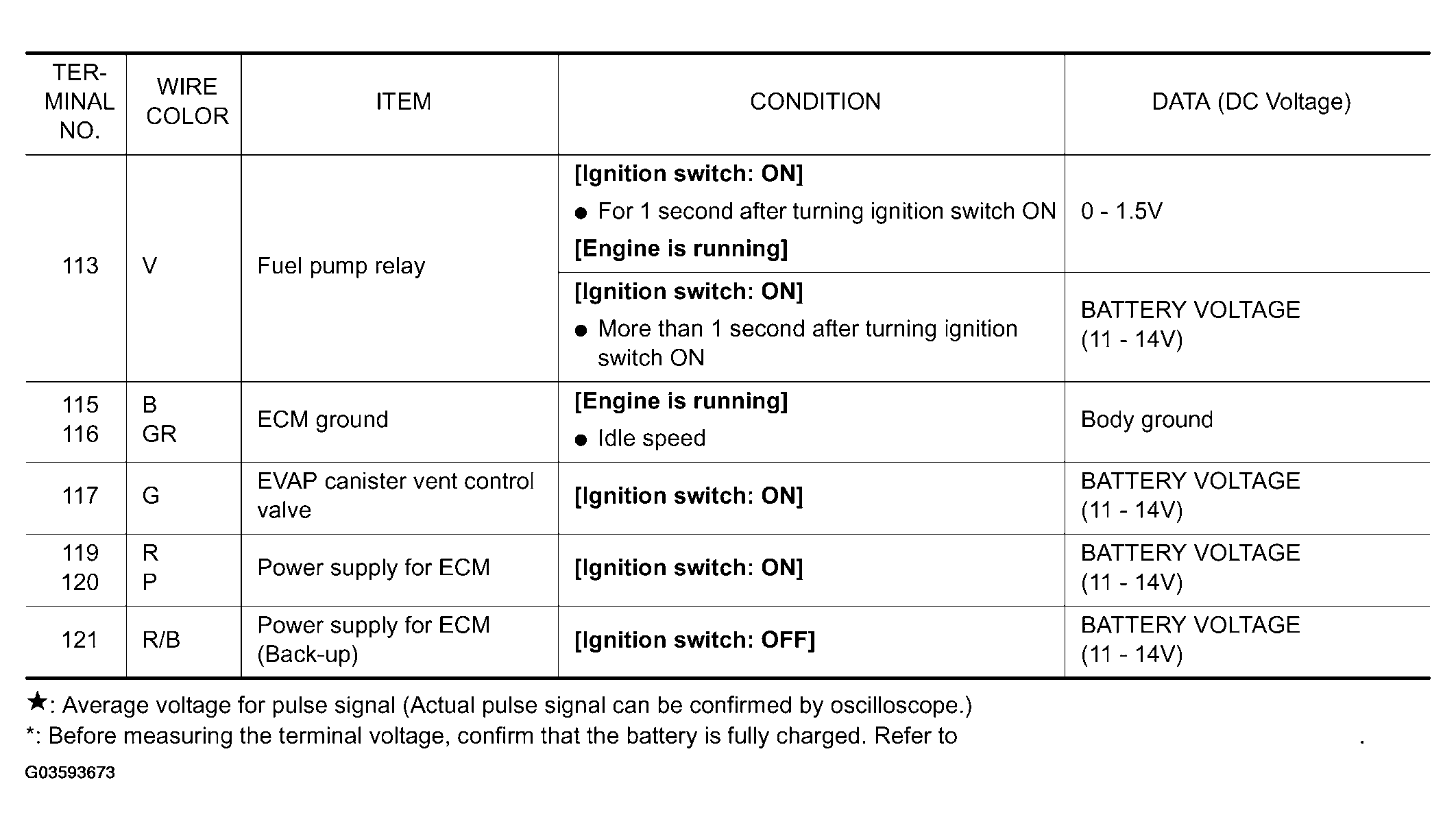

Fig 10: ECM Inspection Reference Values Chart (10 Of 10)

G03593673

Courtesy of NISSAN MOTOR CO., U.S.A.
