ECM Inspection Table

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

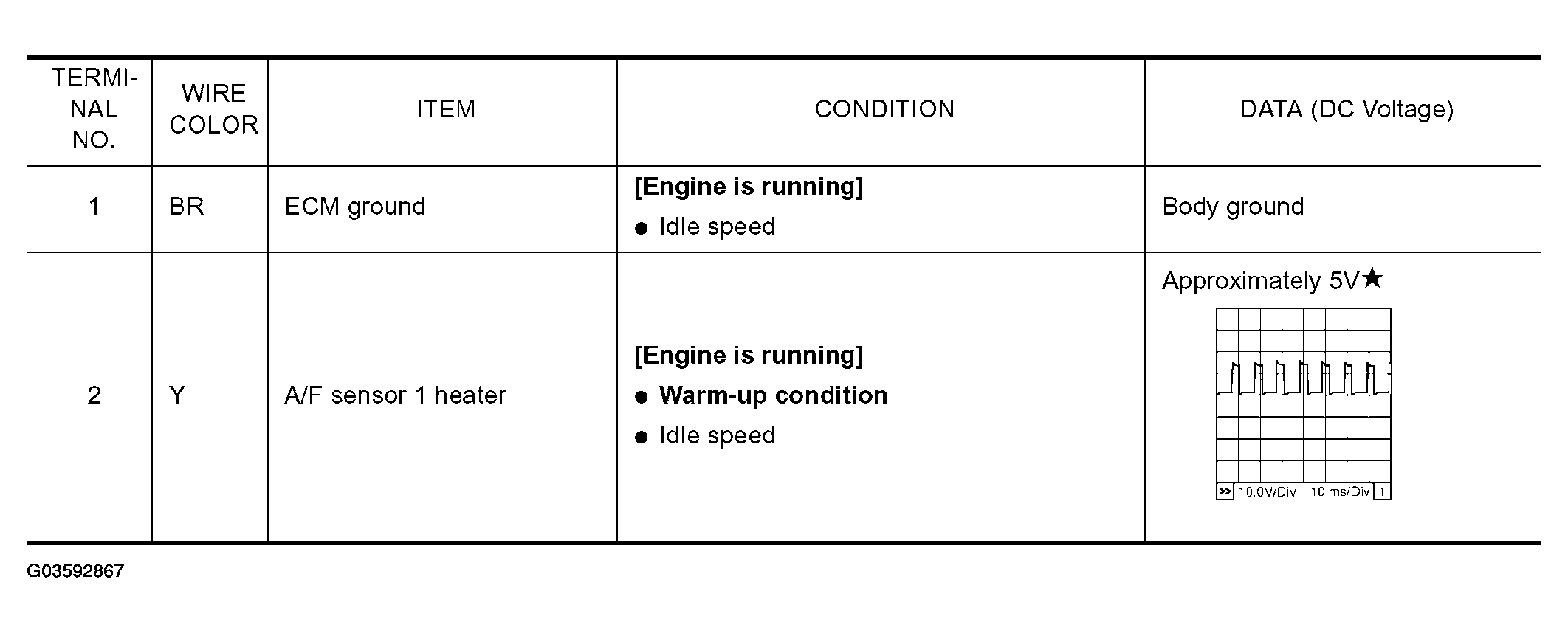

Fig 1: ECM Terminal And Ground Specification Data And Reference Value Chart (1 Of 7)

G03592867

Courtesy of NISSAN MOTOR CO., U.S.A.

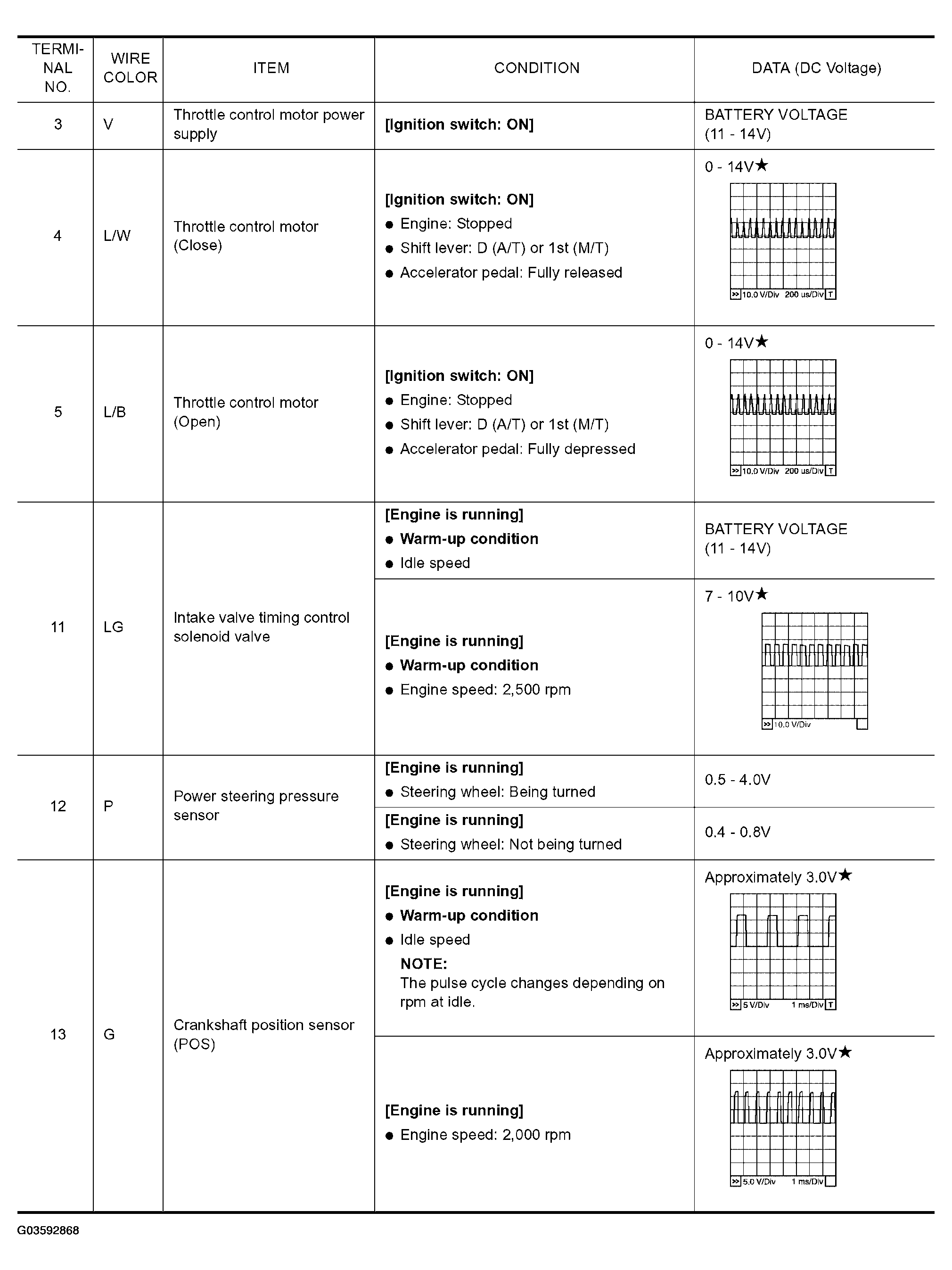

Fig 2: ECM Terminal And Ground Specification Data And Reference Value Chart (2 Of 7)

G03592868

Courtesy of NISSAN MOTOR CO., U.S.A.

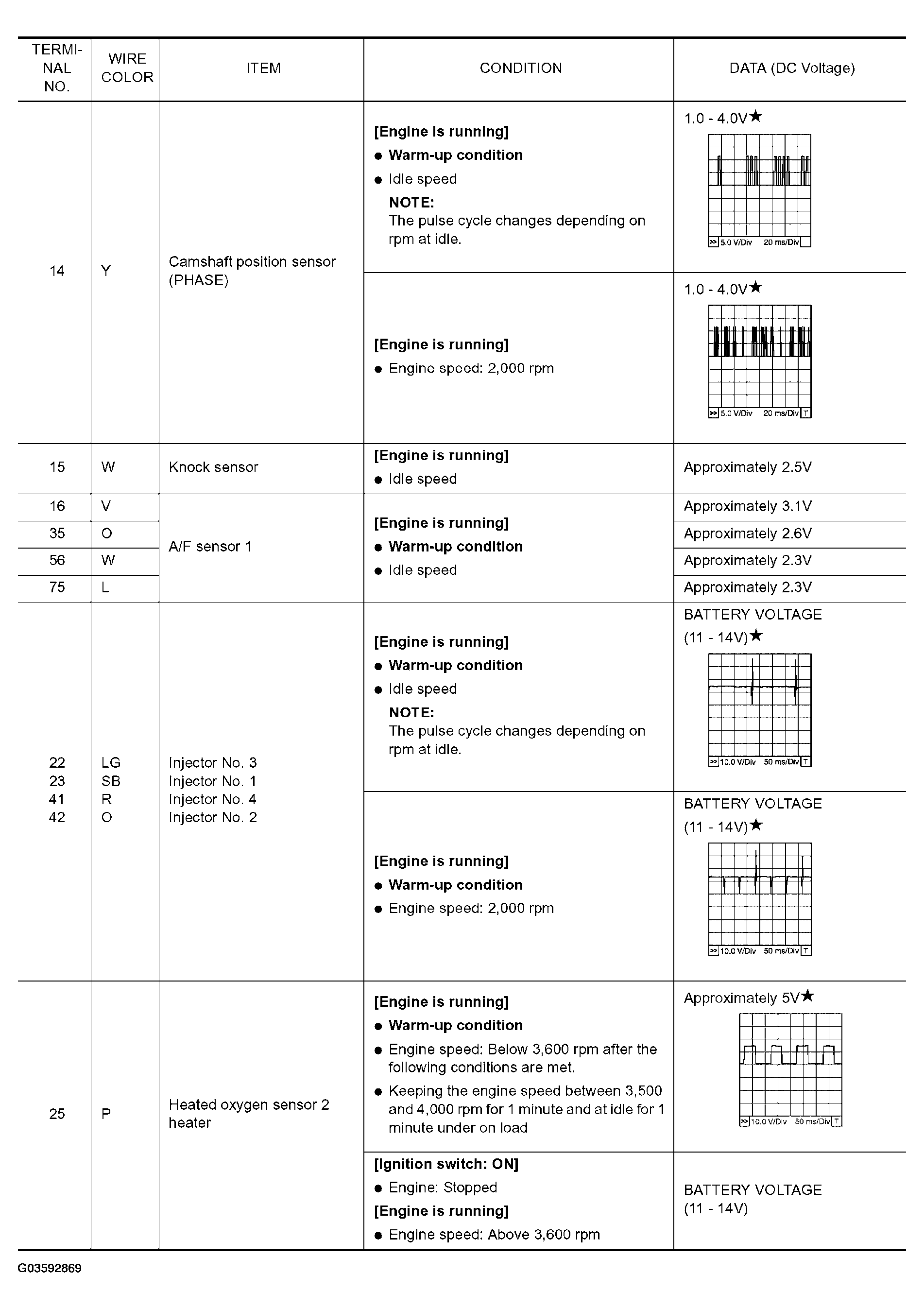

Fig 3: ECM Terminal And Ground Specification Data And Reference Value Chart (3 Of 7)

G03592869

Courtesy of NISSAN MOTOR CO., U.S.A.

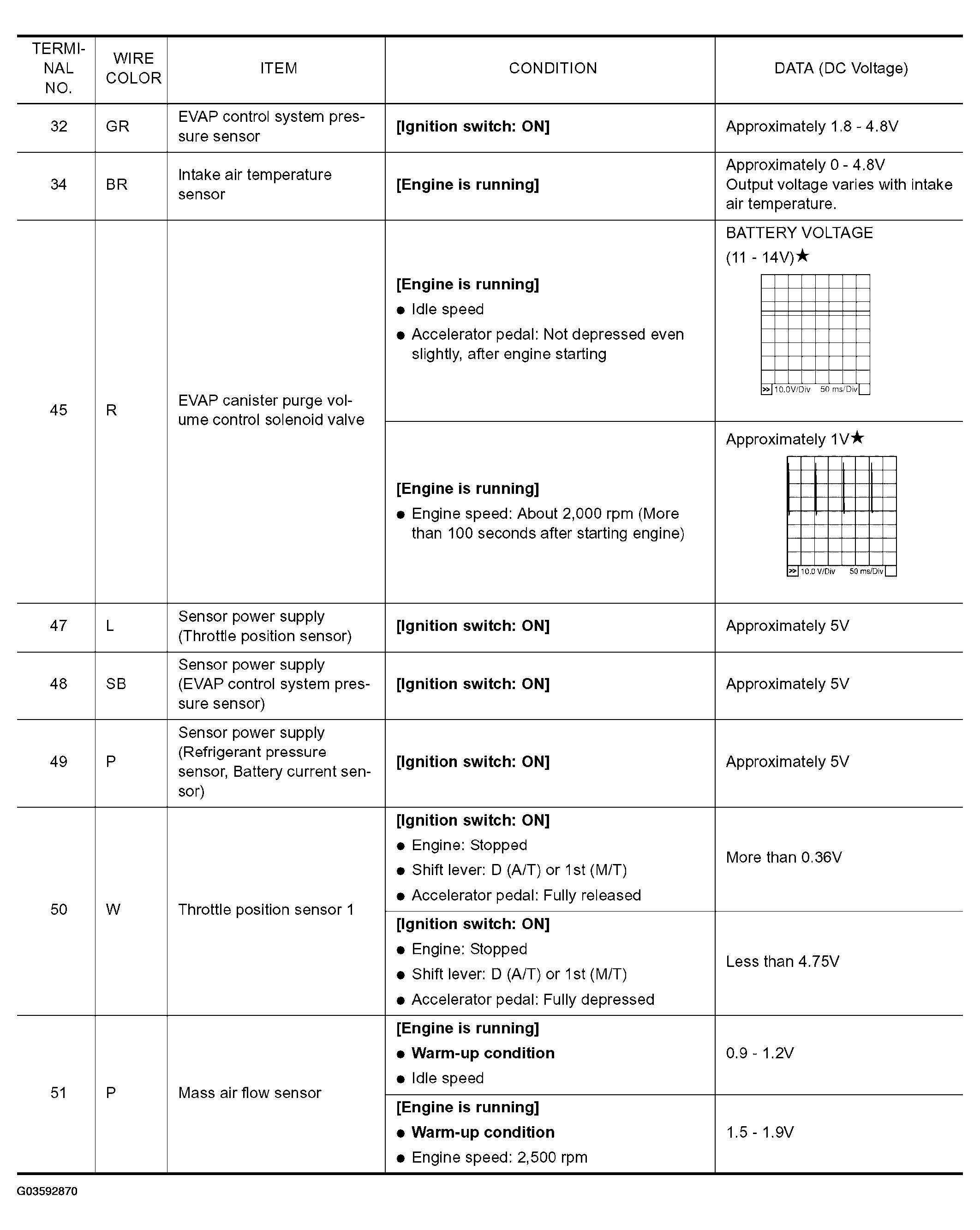

Fig 4: ECM Terminal And Ground Specification Data And Reference Value Chart (4 Of 7)

G03592870

Courtesy of NISSAN MOTOR CO., U.S.A.

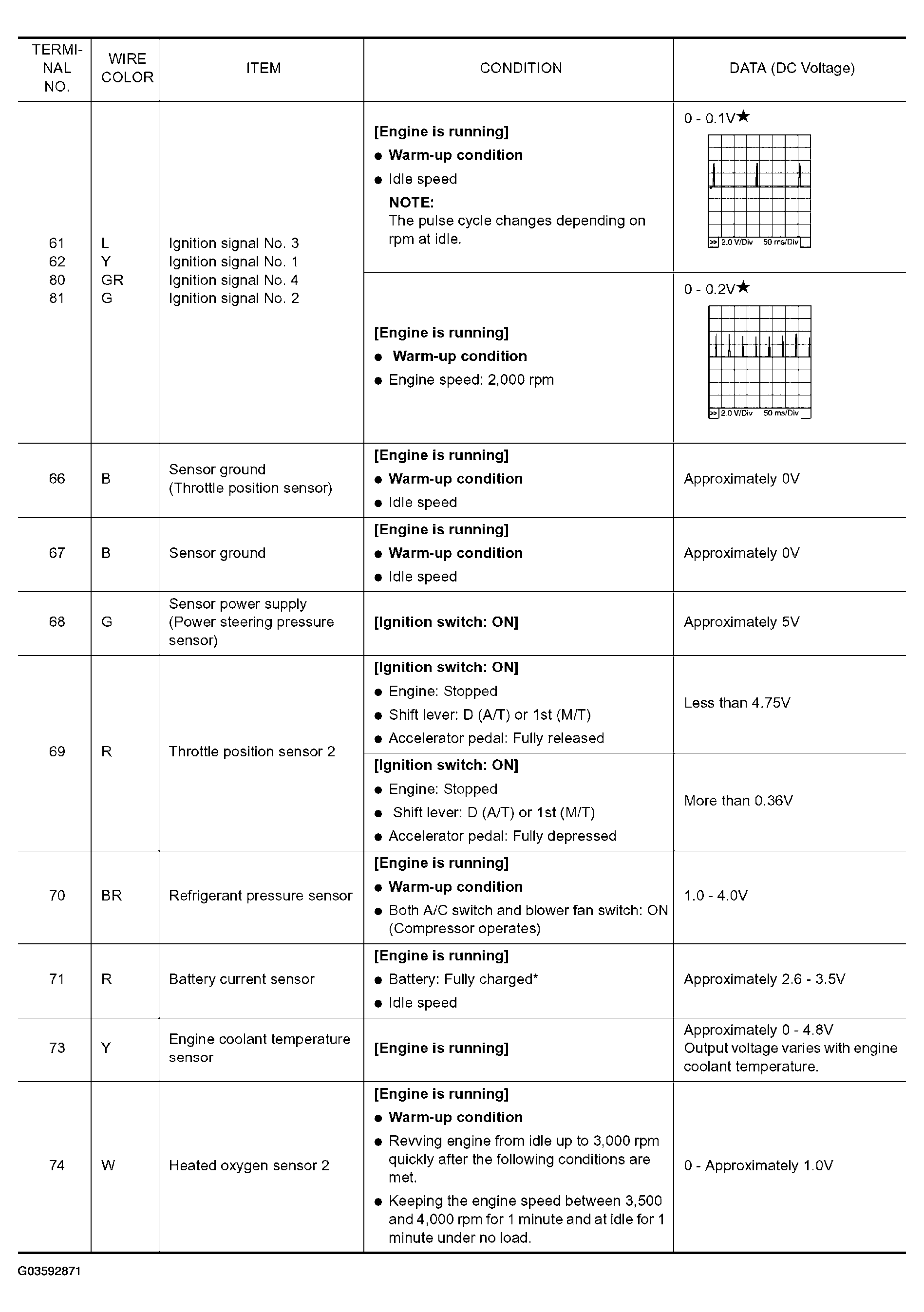

Fig 5: ECM Terminal And Ground Specification Data And Reference Value Chart (5 Of 7)

G03592871

Courtesy of NISSAN MOTOR CO., U.S.A.

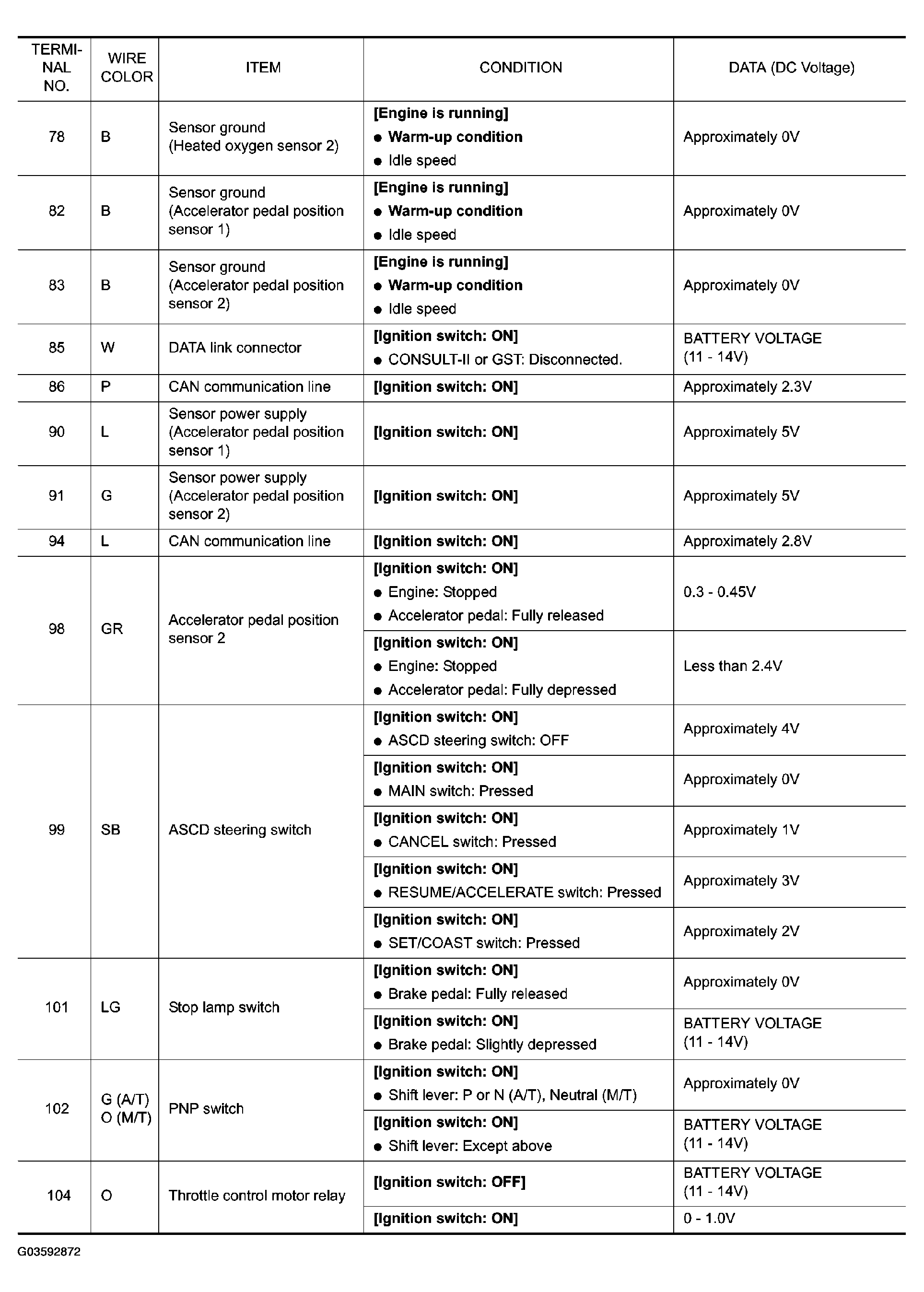

Fig 6: ECM Terminal And Ground Specification Data And Reference Value Chart (6 Of 7)

G03592872

Courtesy of NISSAN MOTOR CO., U.S.A.

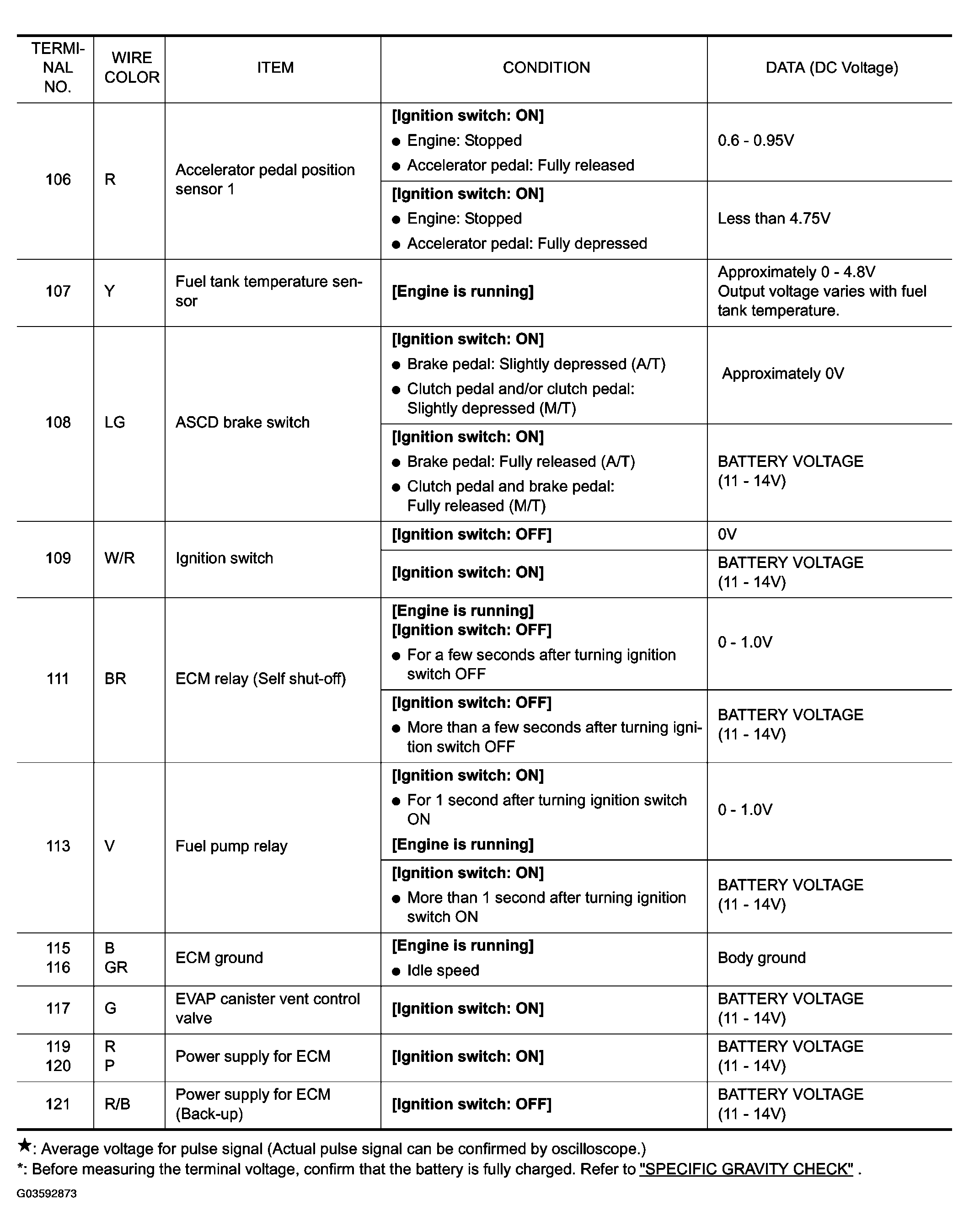

Fig 7: ECM Terminal And Ground Specification Data And Reference Value Chart (7 Of 7)

G03592873

Courtesy of NISSAN MOTOR CO., U.S.A.
