Active Test Mode

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Test Item

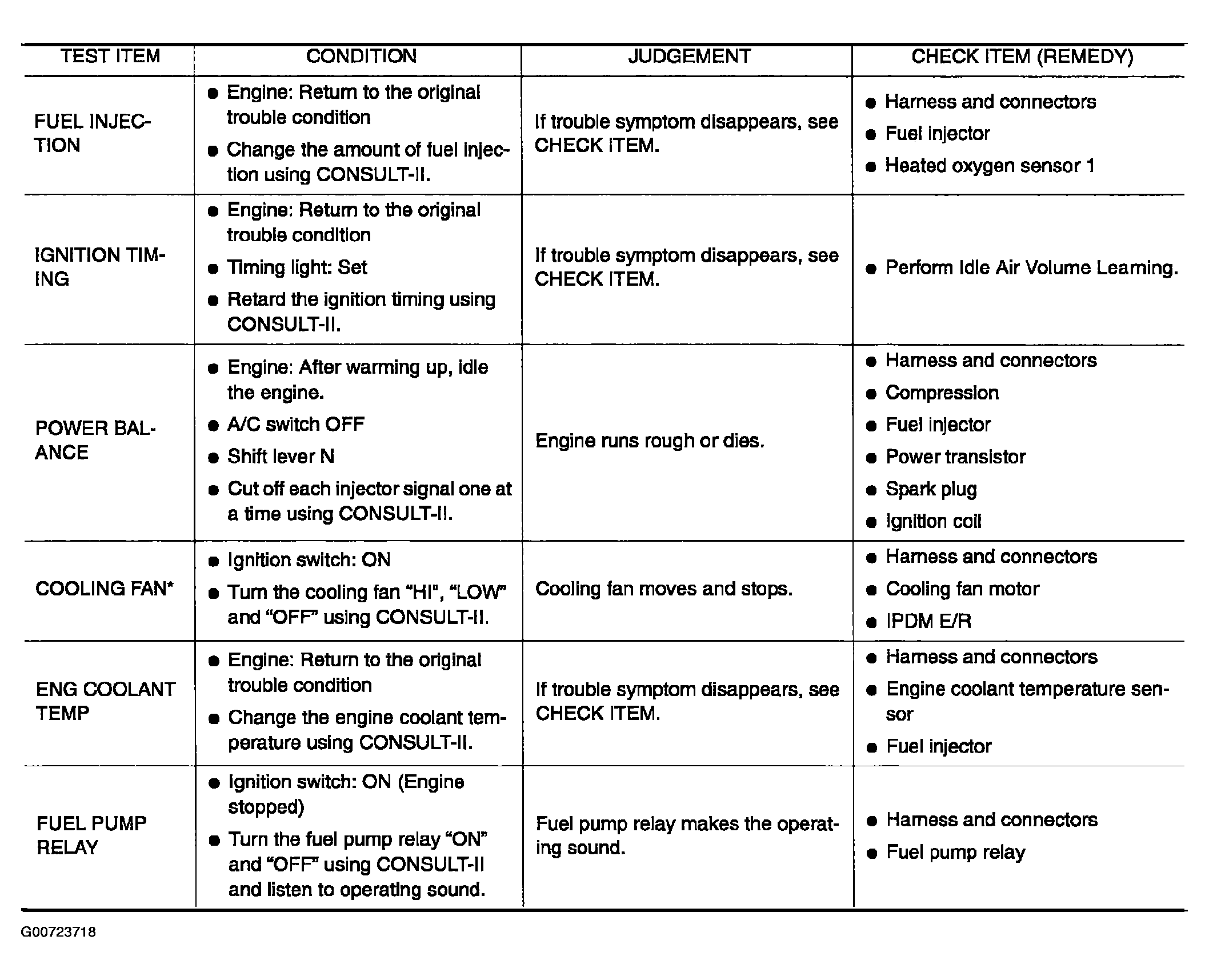

Fig 1: Consult-II Active Test Mode (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

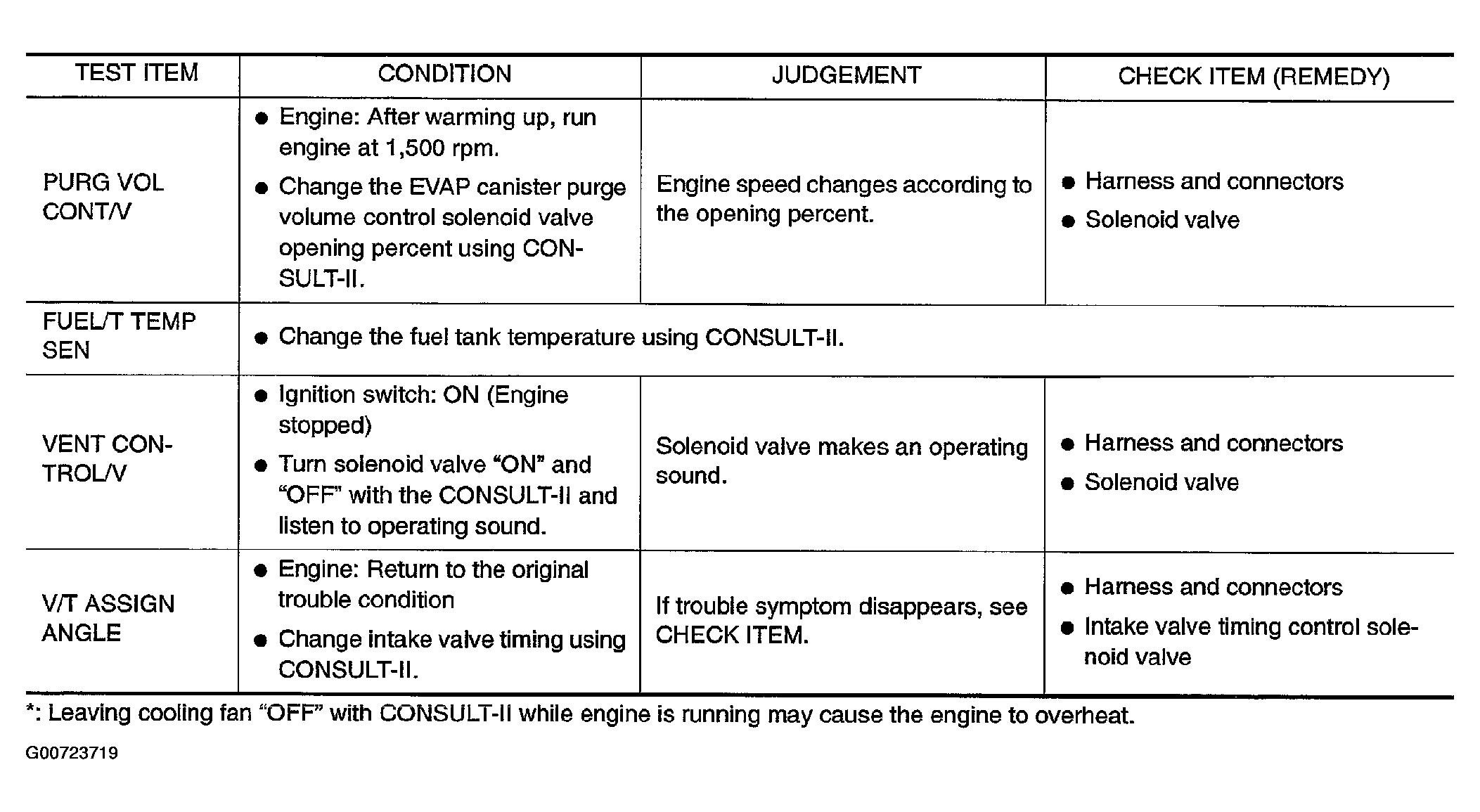

Fig 2: Consult-II Active Test Mode (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
