ECM Inspection Chart

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

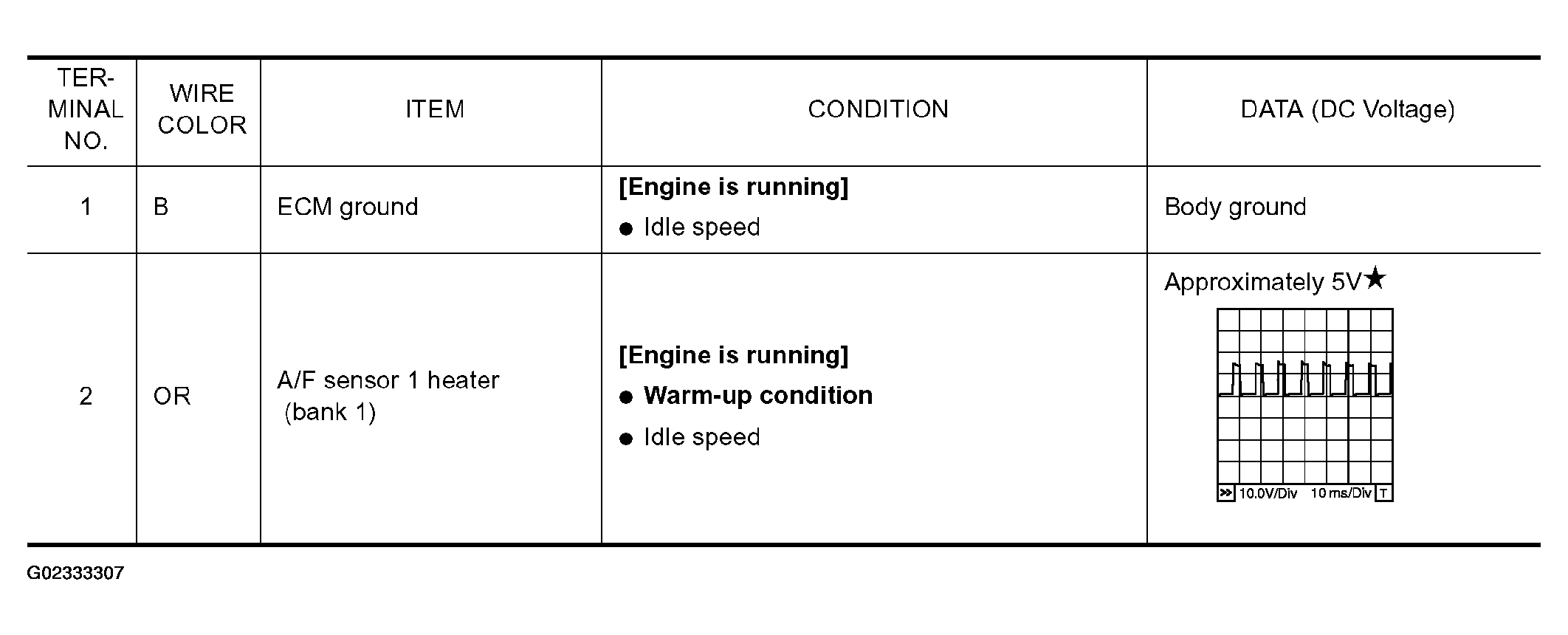

Fig 1: ECM Inspection Chart - (1 Of 9)
G02333307Courtesy of NISSAN MOTOR CO., U.S.A.

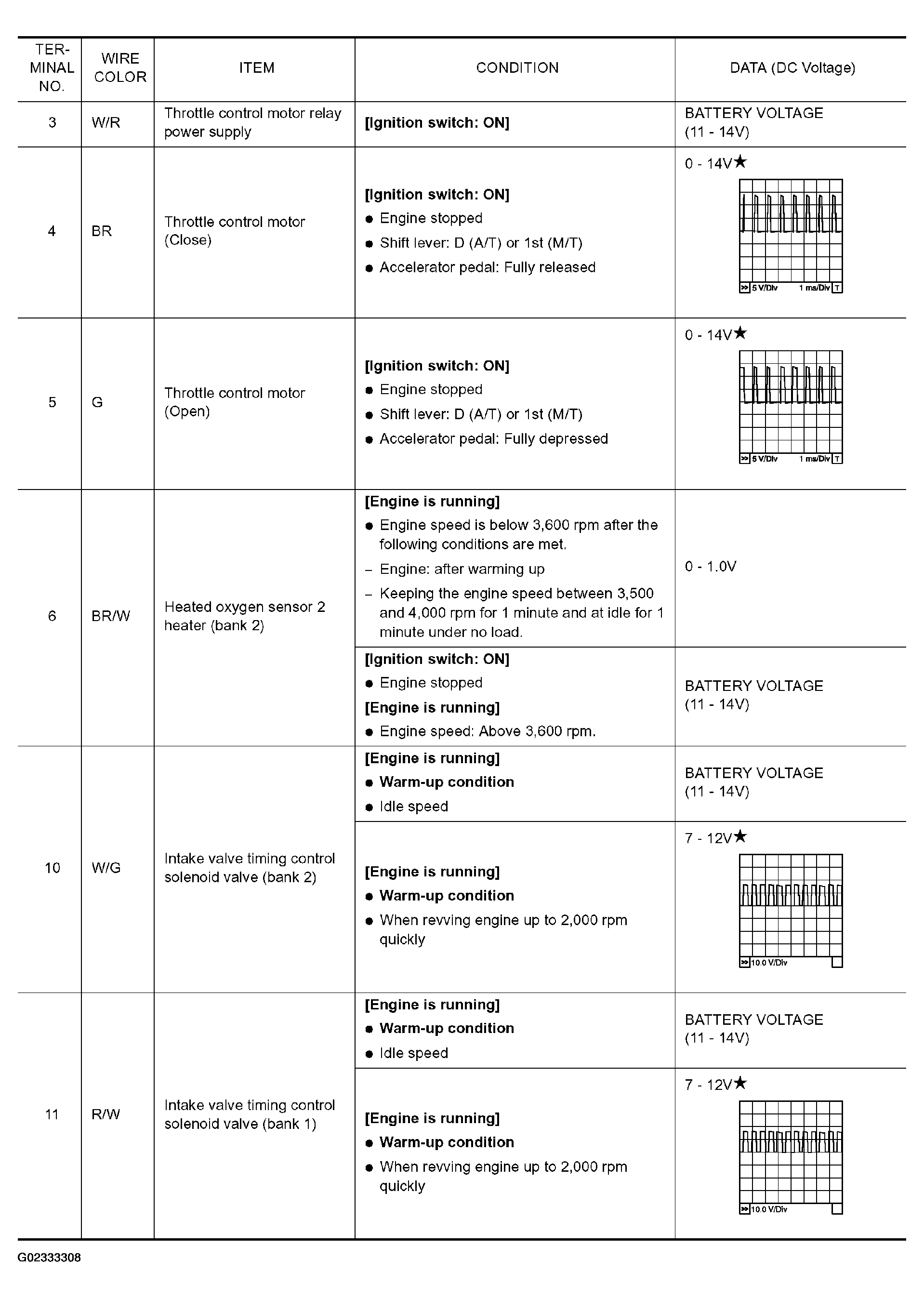

Fig 2: ECM Inspection Chart - (2 Of 9)
G02333308Courtesy of NISSAN MOTOR CO., U.S.A.

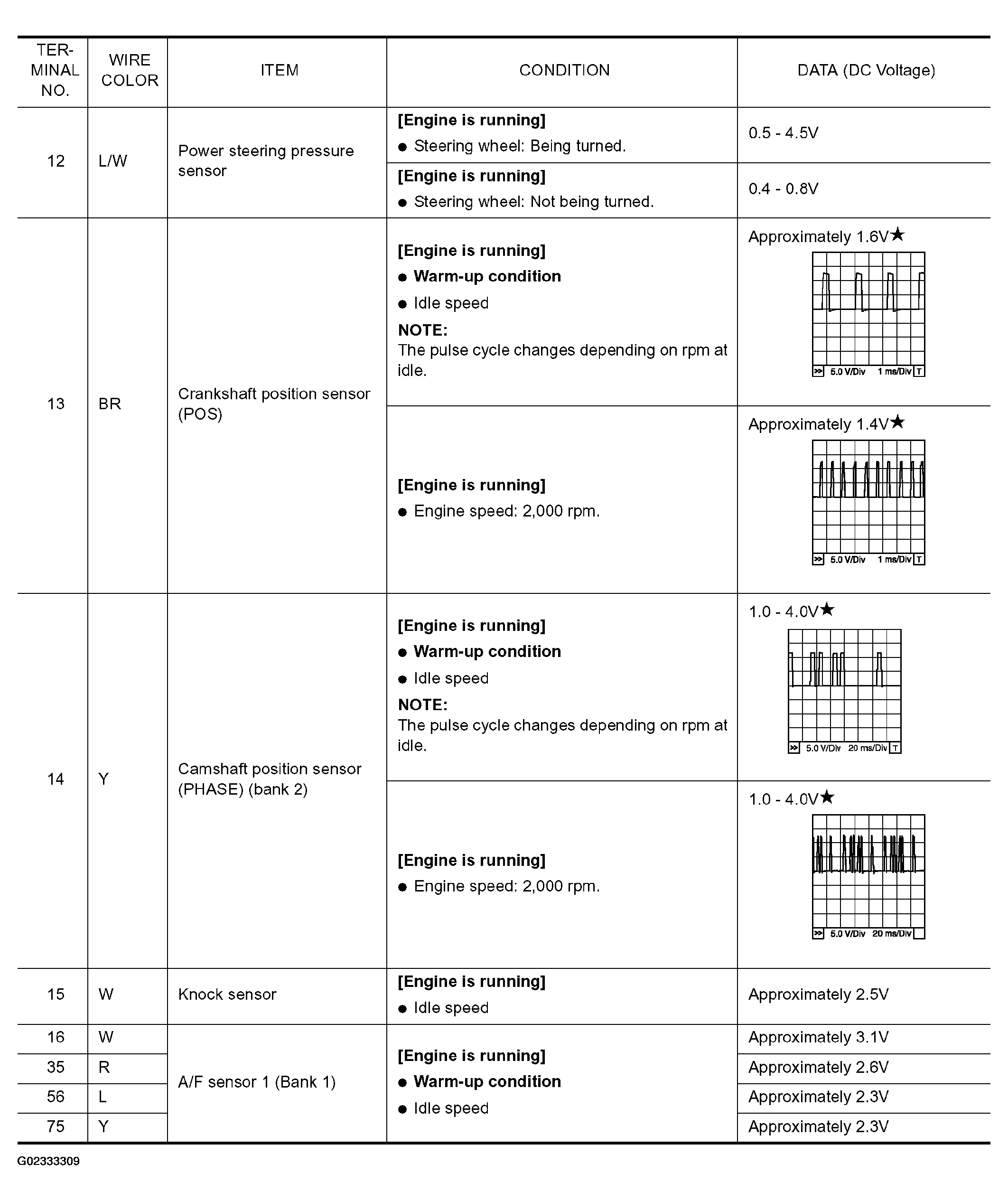

Fig 3: ECM Inspection Chart - (3 Of 9)
G02333309Courtesy of NISSAN MOTOR CO., U.S.A.

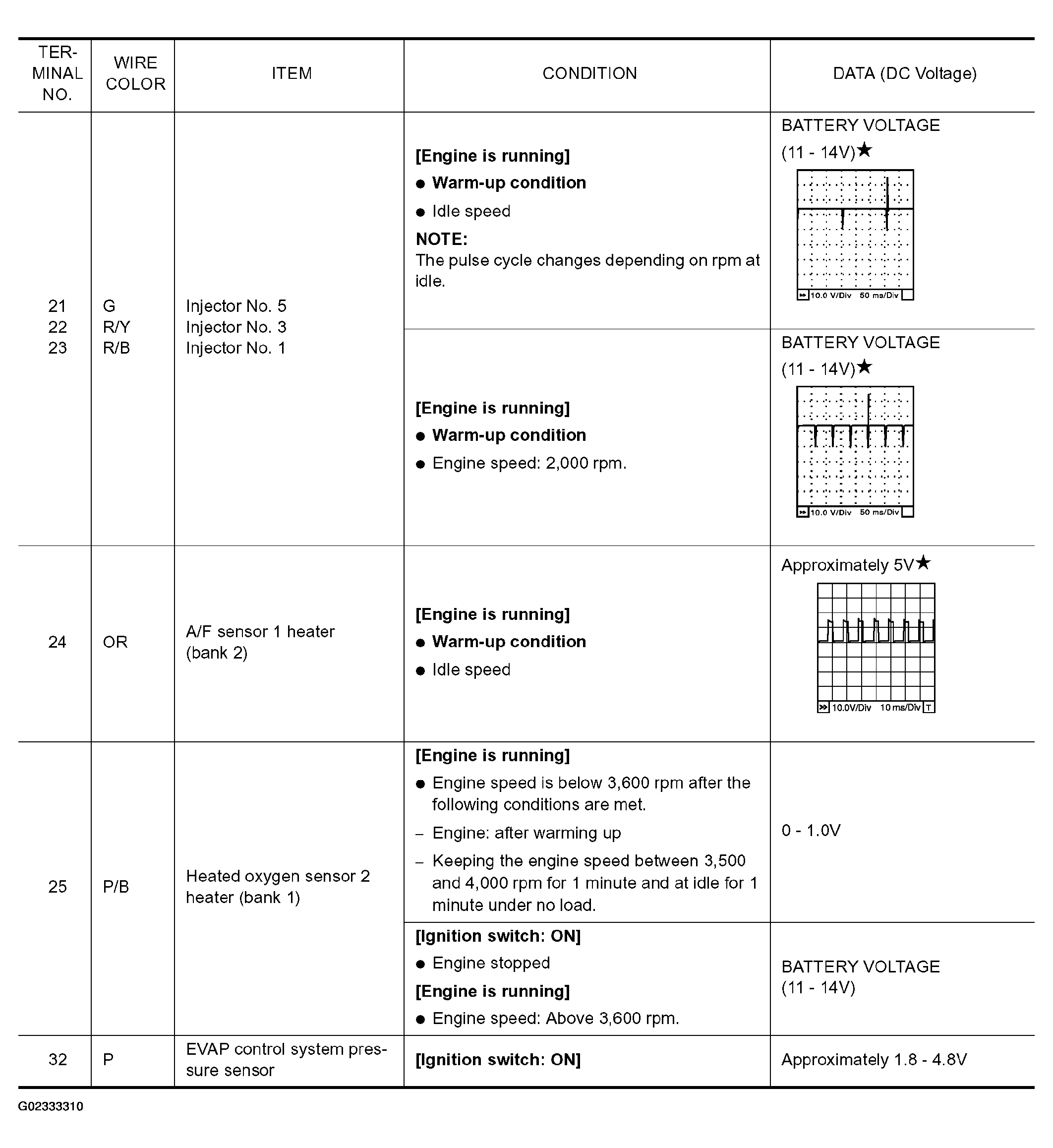

Fig 4: ECM Inspection Chart - (4 Of 9)
G02333310Courtesy of NISSAN MOTOR CO., U.S.A.

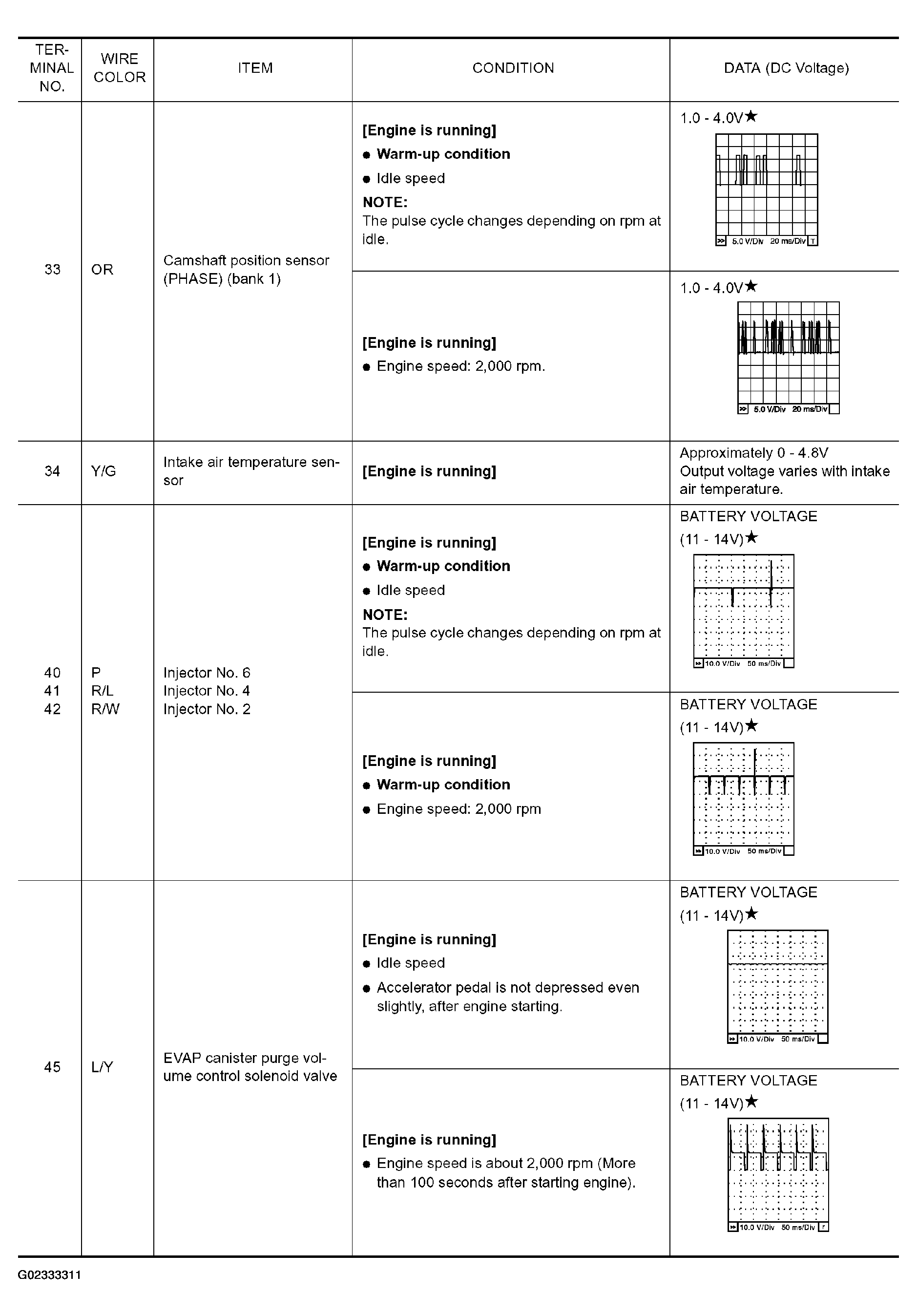

Fig 5: ECM Inspection Chart - (5 Of 9)
G02333311Courtesy of NISSAN MOTOR CO., U.S.A.

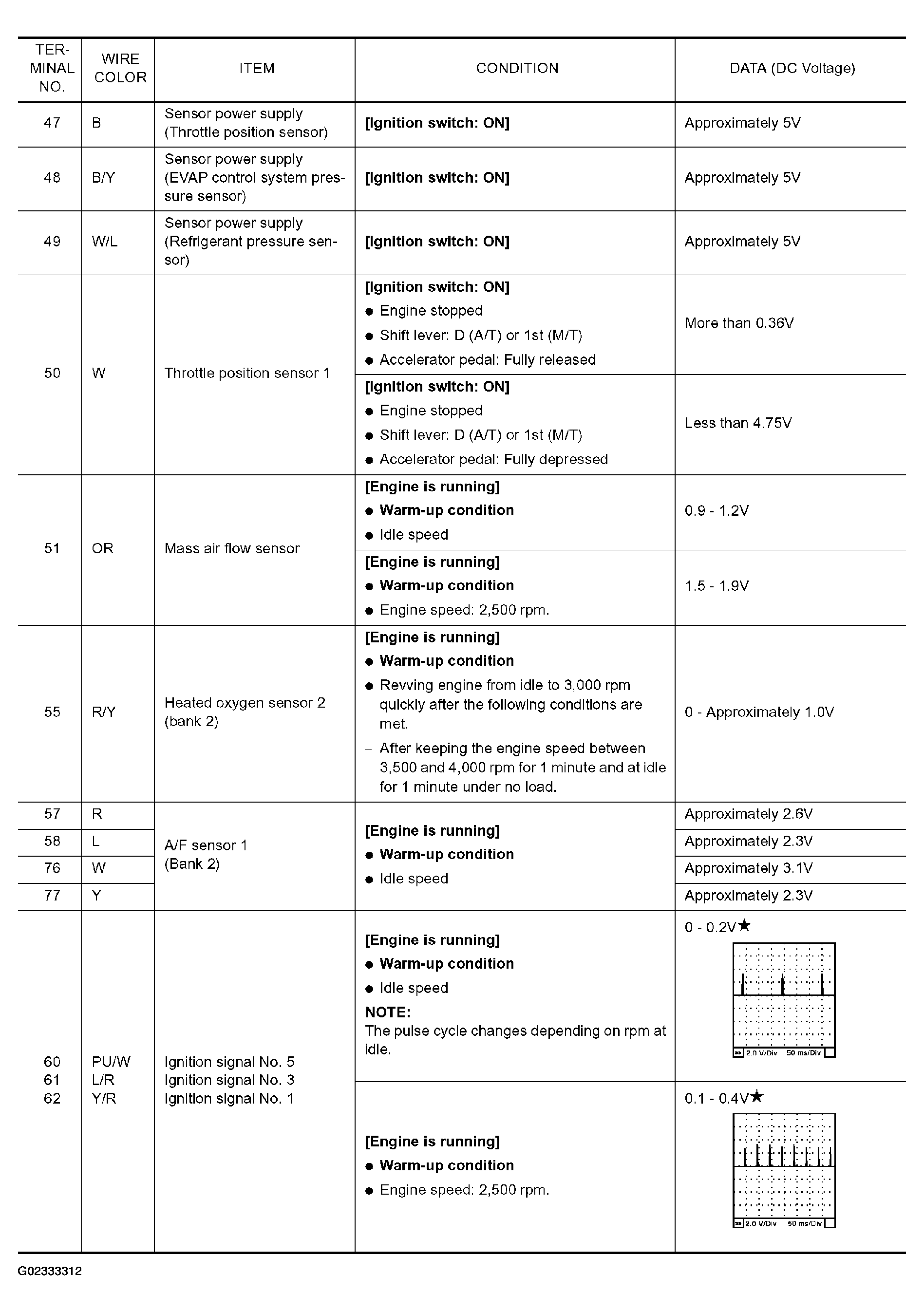

Fig 6: ECM Inspection Chart - (6 Of 9)
G02333312Courtesy of NISSAN MOTOR CO., U.S.A.

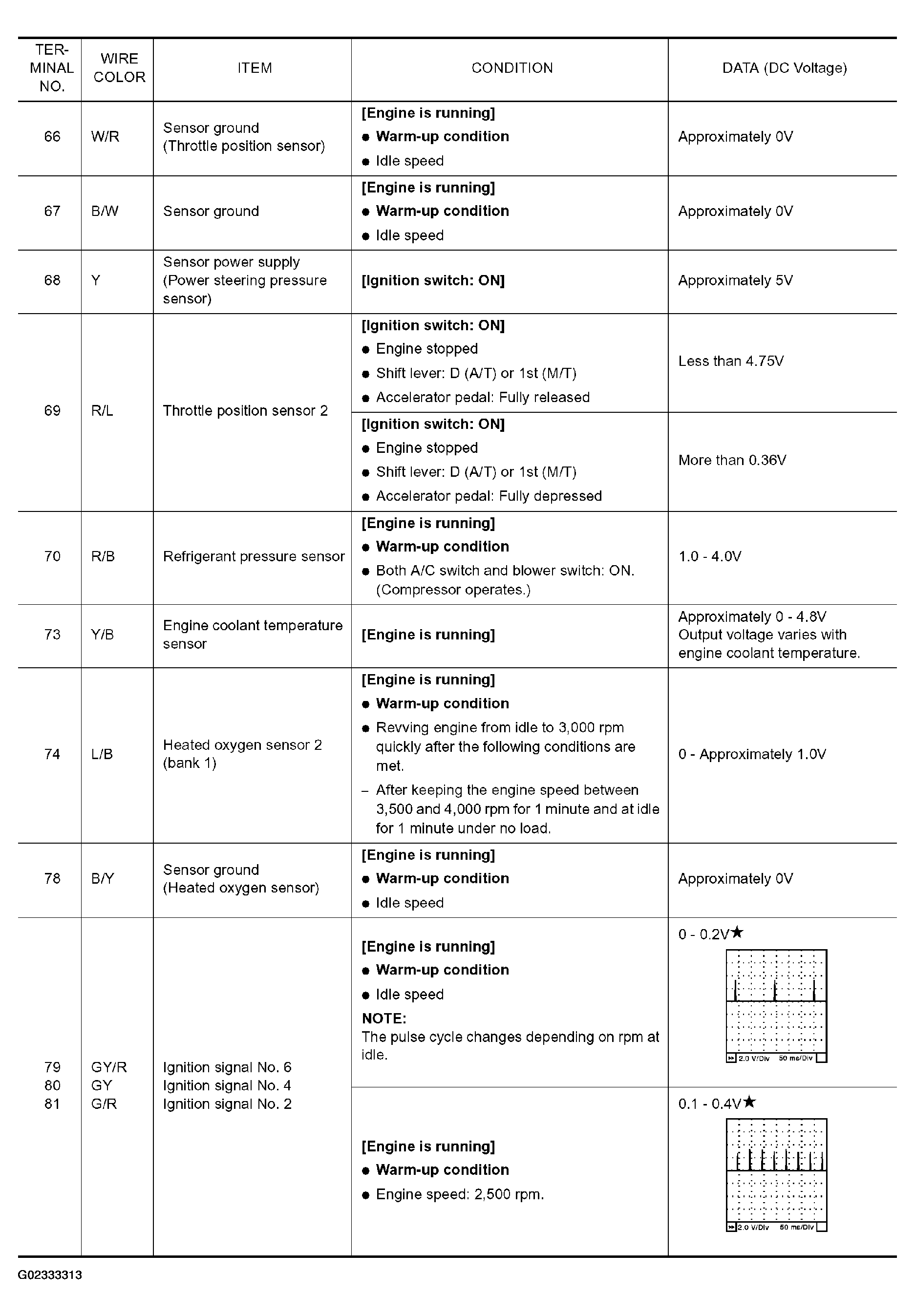

Fig 7: ECM Inspection Chart - (7 Of 9)
G02333313Courtesy of NISSAN MOTOR CO., U.S.A.

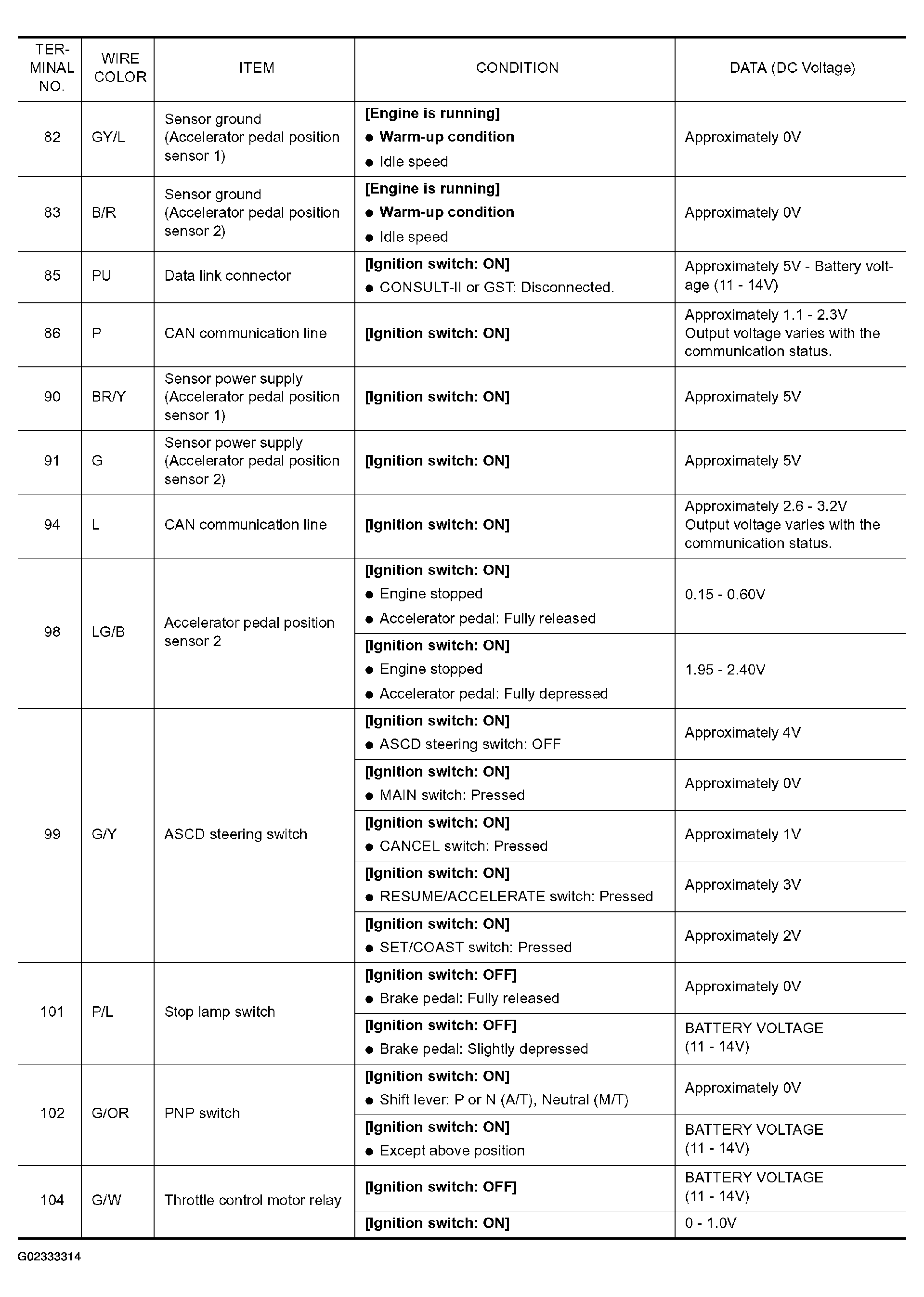

Fig 8: ECM Inspection Chart - (8 Of 9)
G02333314Courtesy of NISSAN MOTOR CO., U.S.A.

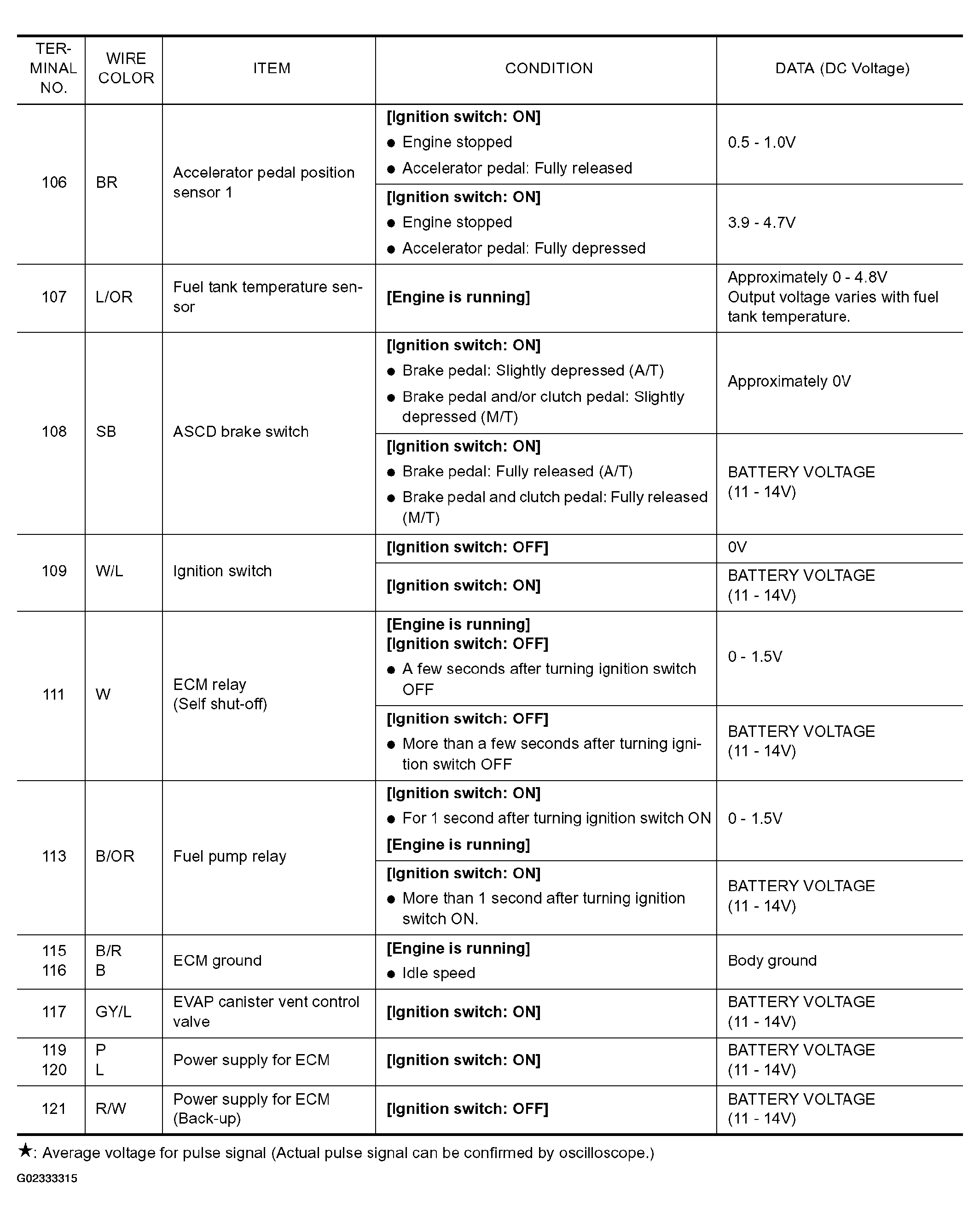

Fig 9: ECM Inspection Chart - (9 Of 9)
G02333315Courtesy of NISSAN MOTOR CO., U.S.A.
