Terminal and Reference Value for Power Window Main Switch/With Front and Rear Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

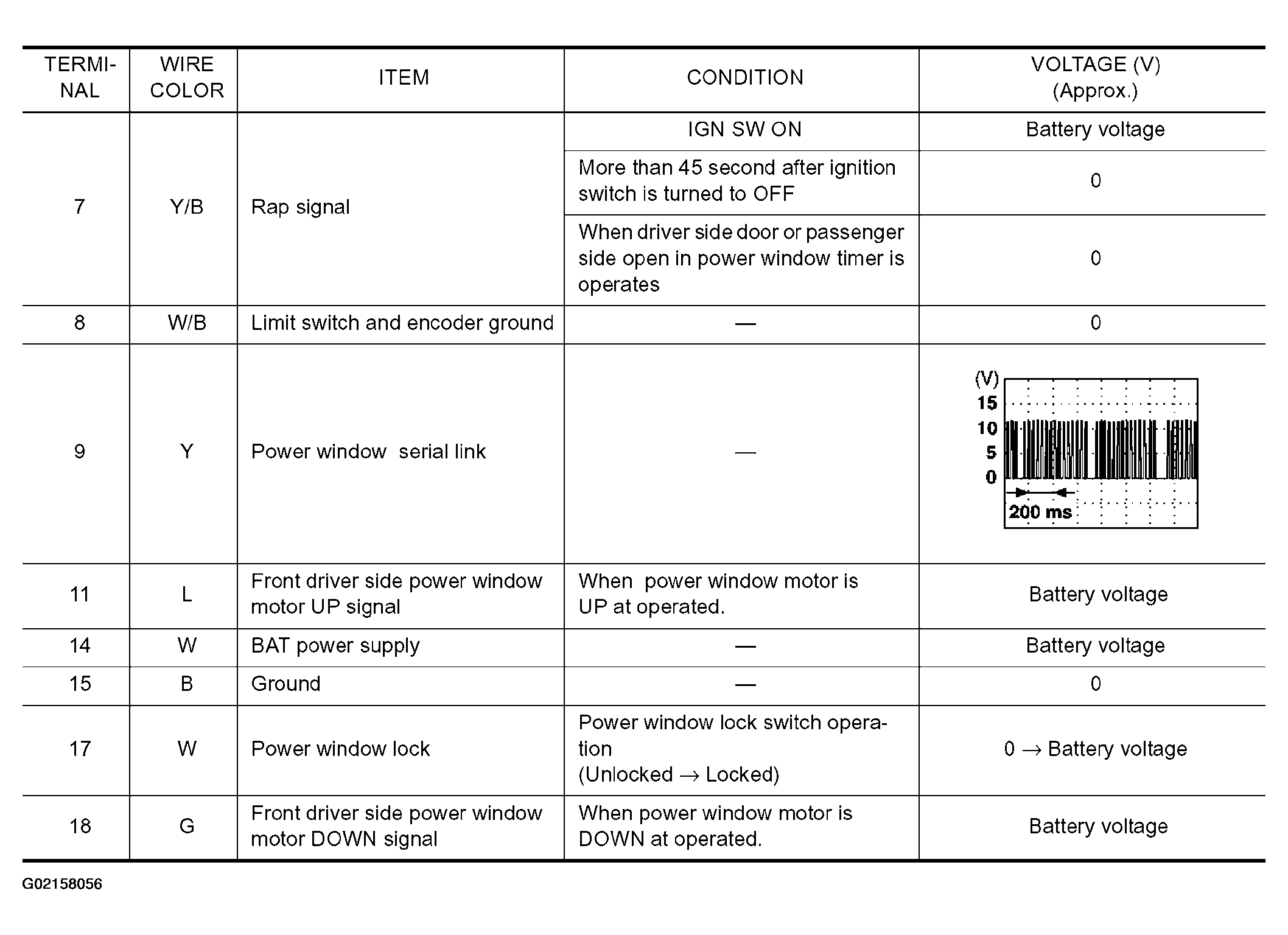

Fig 1: Power Window Main Switch Terminal And Reference Value Chart (With Front And Rear Power Window Anti-Pinch System - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

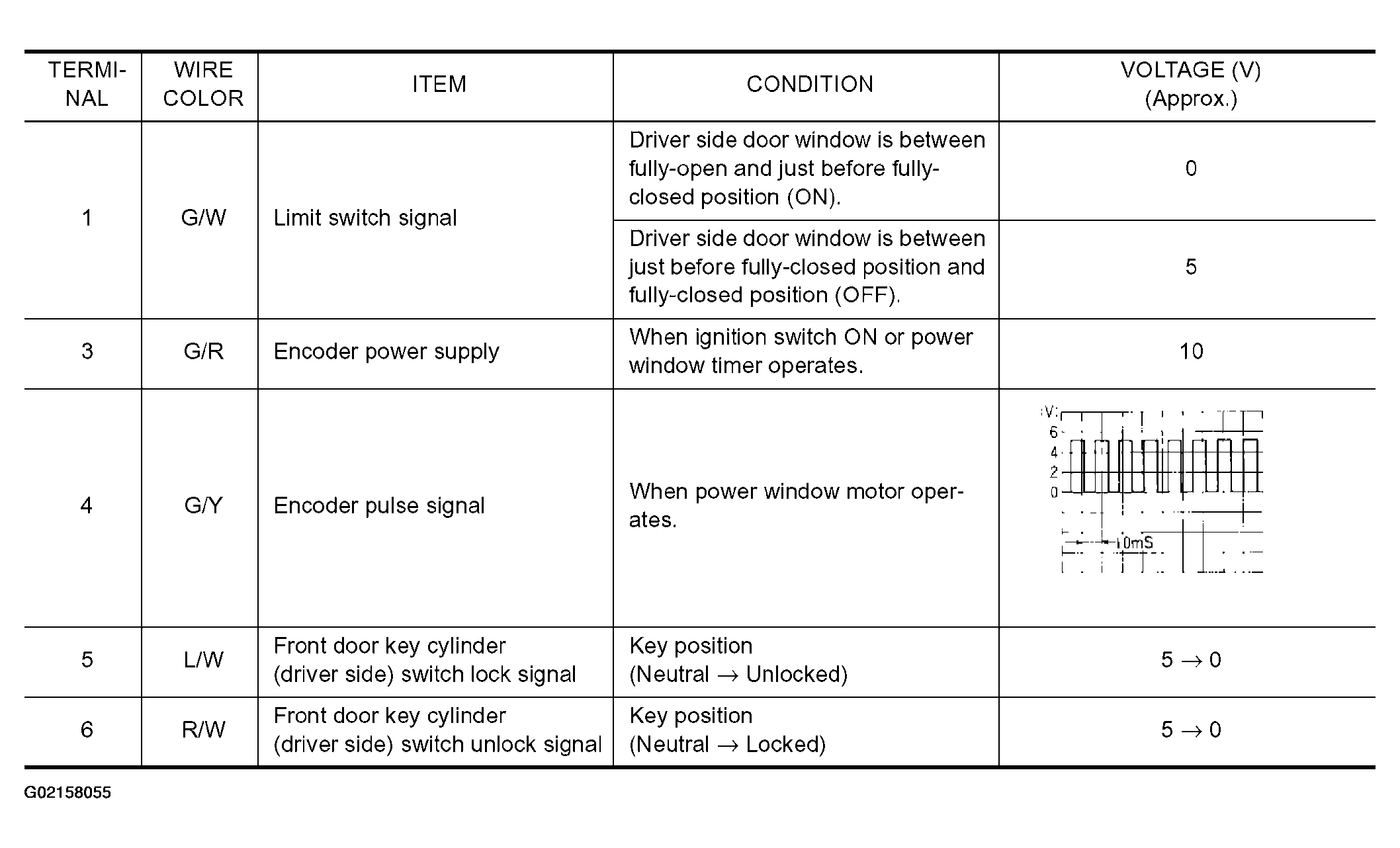

Fig 2: Power Window Main Switch Terminal And Reference Value Chart (With Front And Rear Power Window Anti-Pinch System - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
