Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

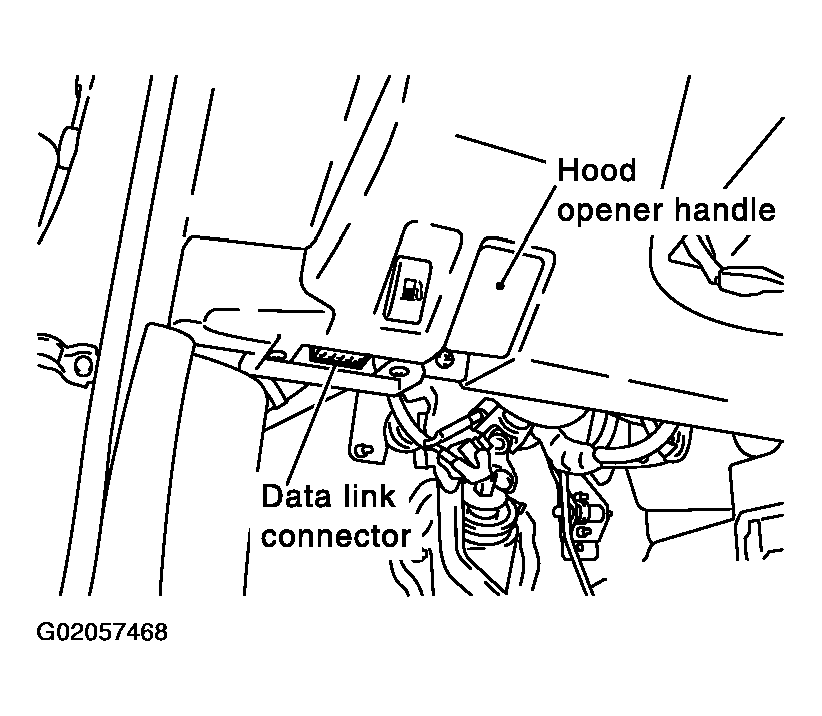

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Start (Nissan Based VHCL) Display On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to , "CONSULT-II Data Link Connector (DLC) Circuit "

Fig 3: BCM Select System Display On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "REAR DEFOGGER".

Fig 4: Rear Defogger Select Test Item Display On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST".

Fig 5: Select diagnosis mode "DATA MONITOR" And Active Test Display ON CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
