Reference Area
WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

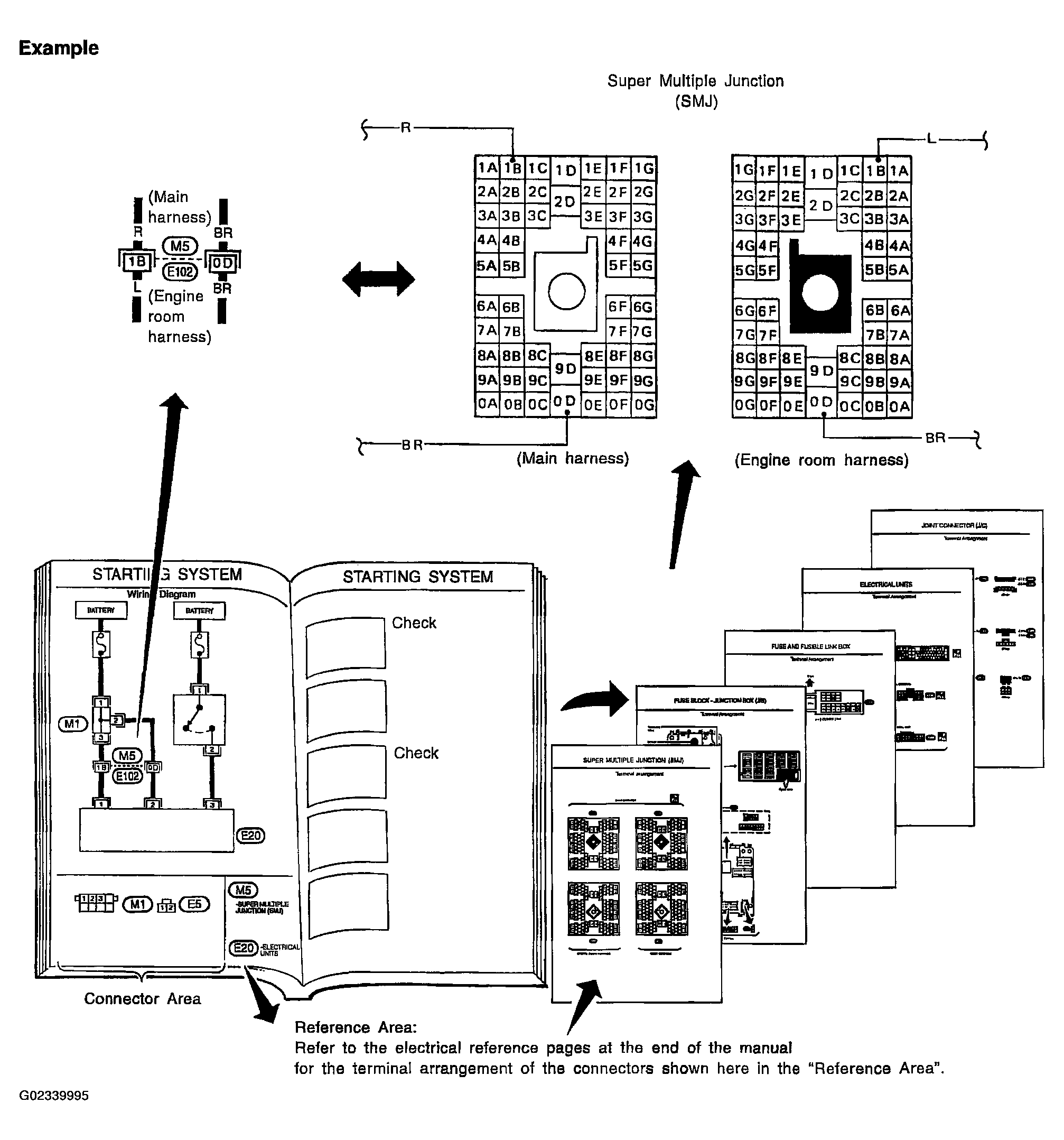

The Reference Area of the Circuit Diagram contains references to additional electrical reference pages at the end of the article. If connector numbers and titles are shown in the Reference Area of the Circuit Diagram, these connector symbols are not shown in the Connector Area.
