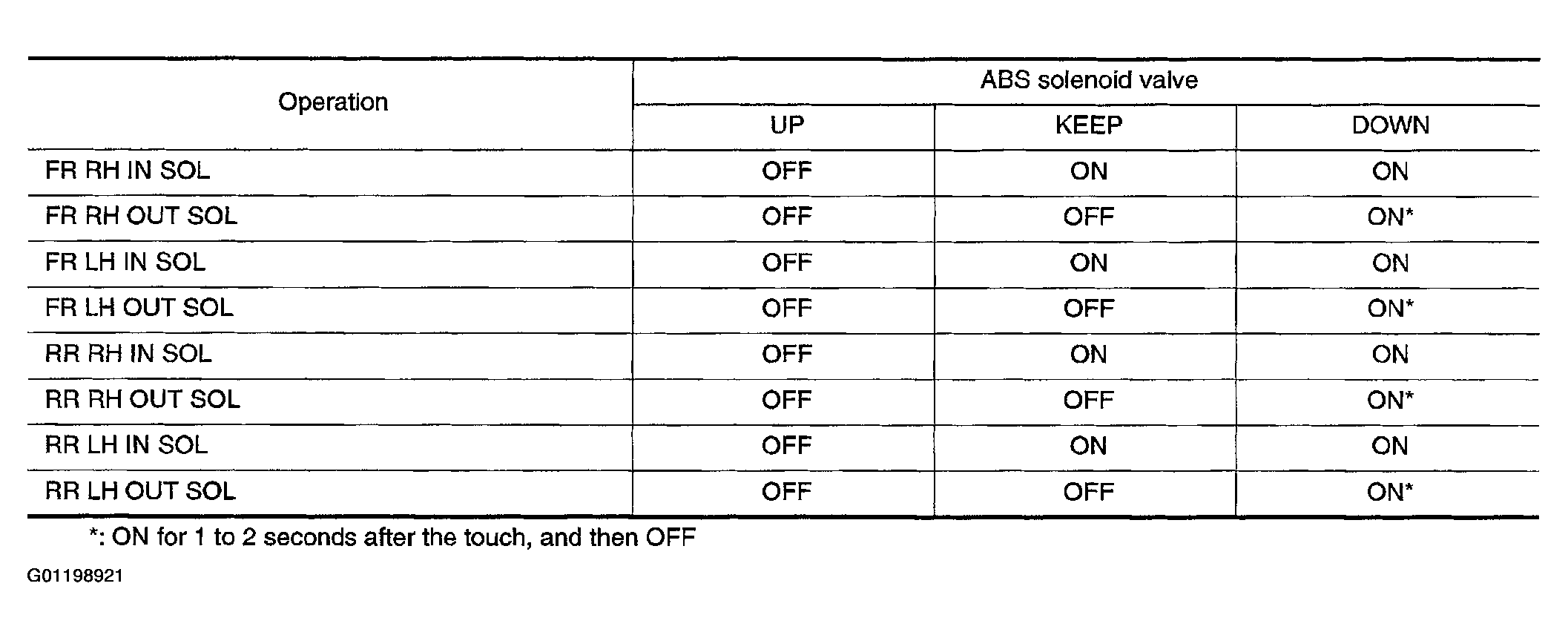

Solenoid Valve Operation Chart
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When active test is performed while depressing pedal, pedal depression amount will change, but this is normal.
- Approximately 10 seconds after operation is begun, TEST STOP will be displayed.
- To perform retest after TEST STOP is displayed, touch BACK and conduct the test from Step 6.
