On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK COOLING FAN OPERATION AT LOW TEMPERATURE (Below 83°C (181°F))
    1. Turn the ignition switch ON.

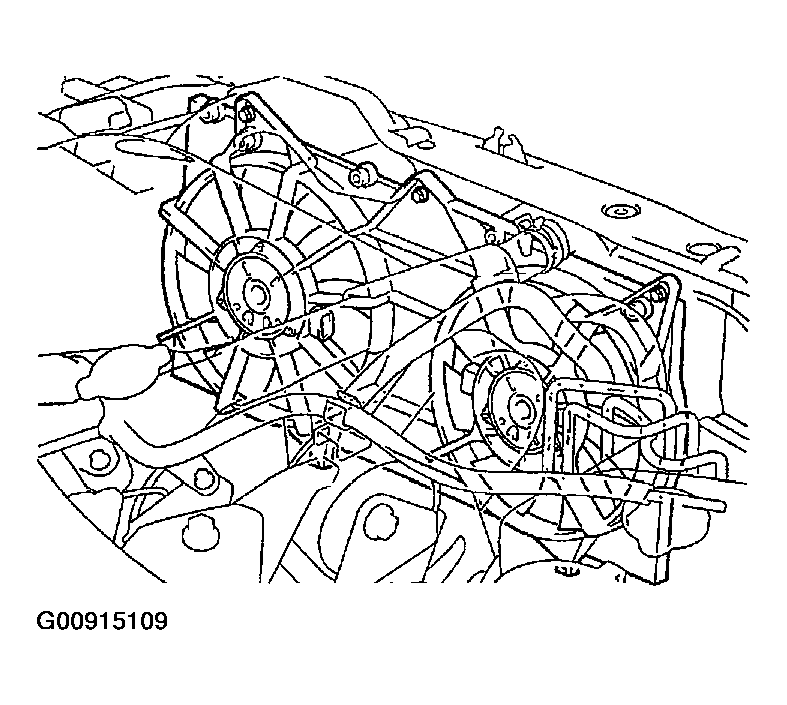

      Fig 1: Identifying Fan
      G00915109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that the fan and fan No. 2 stops.

      If not, check the cooling fan relays and temperature detect switches.

    3. Disconnect the temperature detect switch connector.

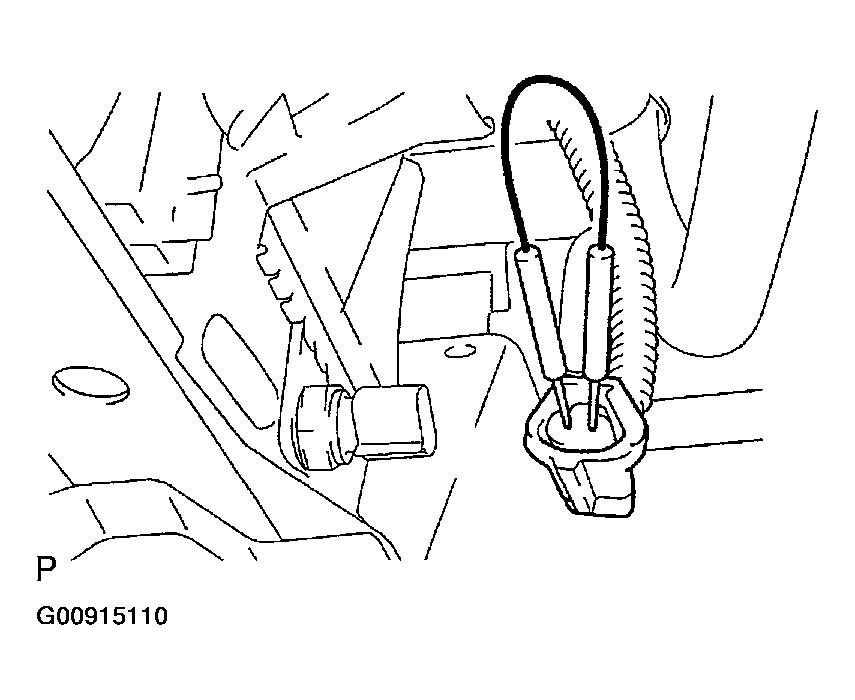

      Fig 2: Identifying Temperature Detect Switch Wire Connector
      G00915110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the terminals of the temperature detect switch wire connector.
    5. Check that the fan rotates at high speed.

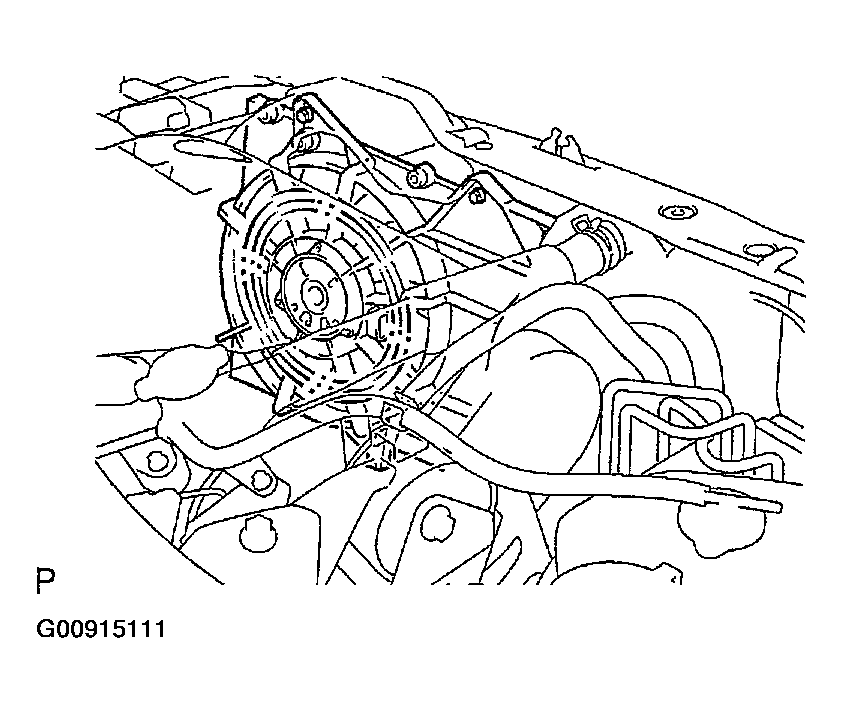

      Fig 3: Checking Fan Rotates At High Speed
      G00915111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If not, check the cooling fan relay and fan.

    6. Reconnect the temperature detect switch connector.
    7. Disconnect the temperature detect switch No. 2 connector.
    8. Ground the terminal on the temperature detect switch No. 2 wire harness side connector.

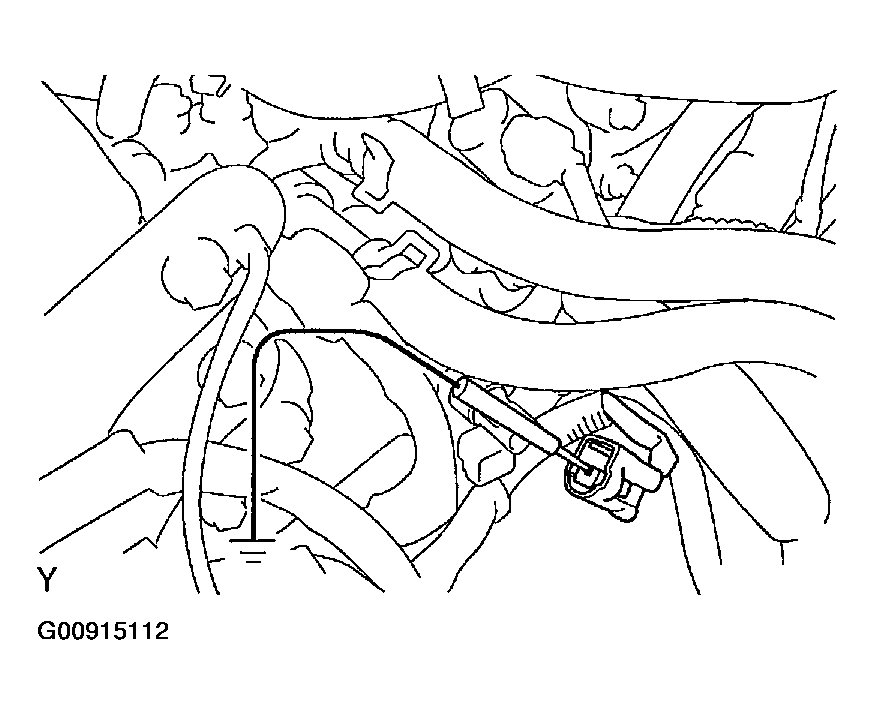

      9. Fig 4: Grounding Terminal
      G00915112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Check that the fan and fan No. 2 rotates at low speed.

      If not, check the cooling fan relay No. 2, cooling fan relay No. 3 and No. 2 fan.

    10. Reconnect the temperature detect switch No. 2 connector.

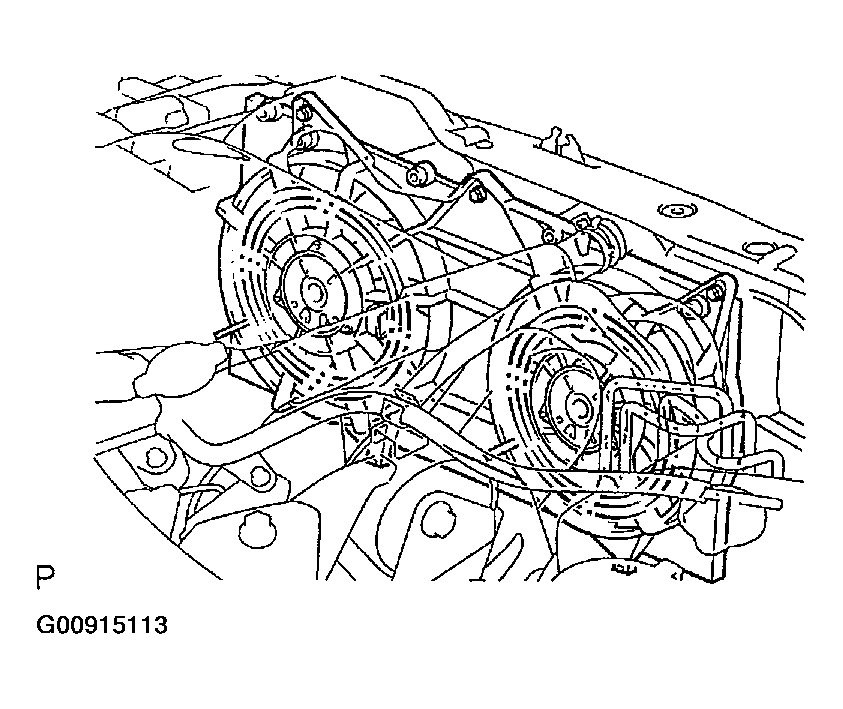

      Fig 5: Checking Fan
      G00915113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FAN
    1. Disconnect the fan connector.
    2. Connect battery and ammeter to the fan connector.
    3. Check that the fan rotates smoothly, then check the reading on the ammeter.

      Standard amperage: 10.2 to 16.2 A at 20°C (68°F)

    4. Reconnect the fan connector.

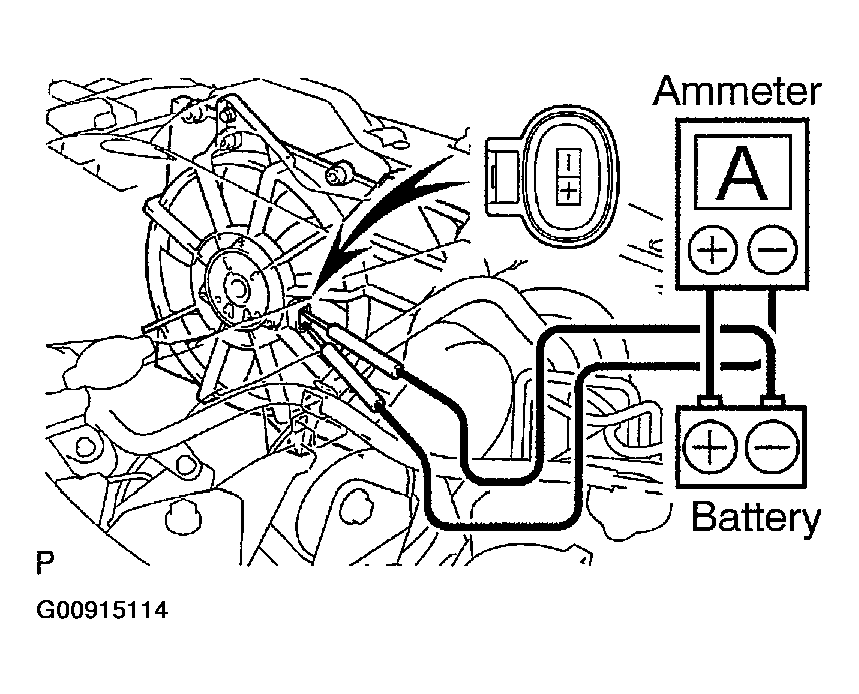

      Fig 6: Connecting Battery And Ammeter To Fan Connector
      G00915114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT NO. 2 FAN
    1. Disconnect the No. 2 fan connector.
    2. Connect the battery and ammeter to the No. 2 fan connector.
    3. Check that the No. 2 fan rotates smoothly, then check the reading on the ammeter.

      Standard amperage: 10.2 to 16.2 A at 20°C (68°F)

    4. Reconnect the No. 2 fan connector.

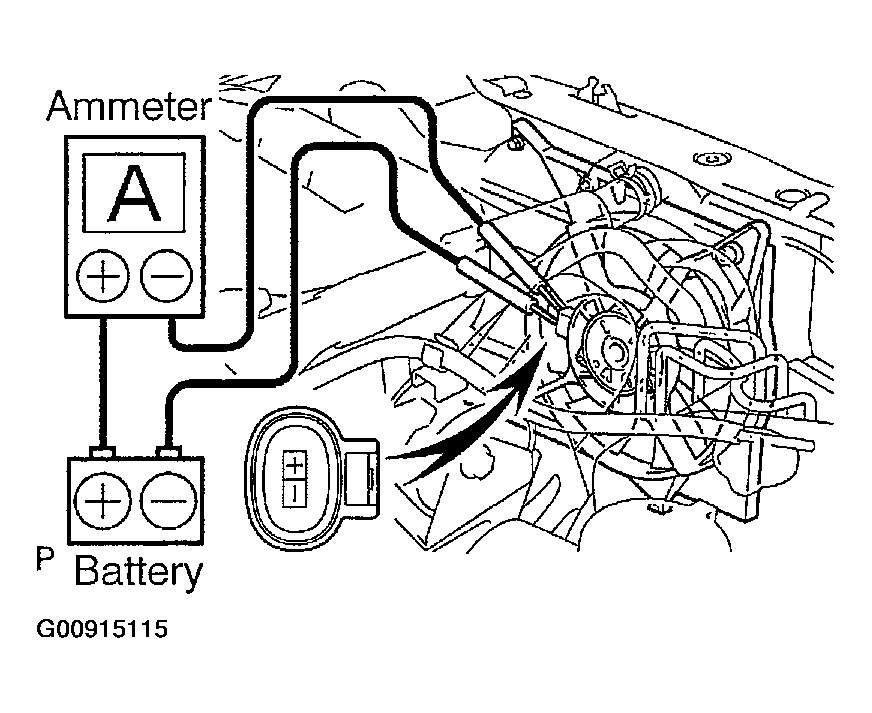

      Fig 7: Connecting Battery And Ammeter To No. 2 Fan Connector
      G00915115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
