Retainer Plate (For Control Valve Upper Body)

WARNING: This page is about a different variant/trim than selected.

Refer to "CONTROL VALVE UPPER BODY ".

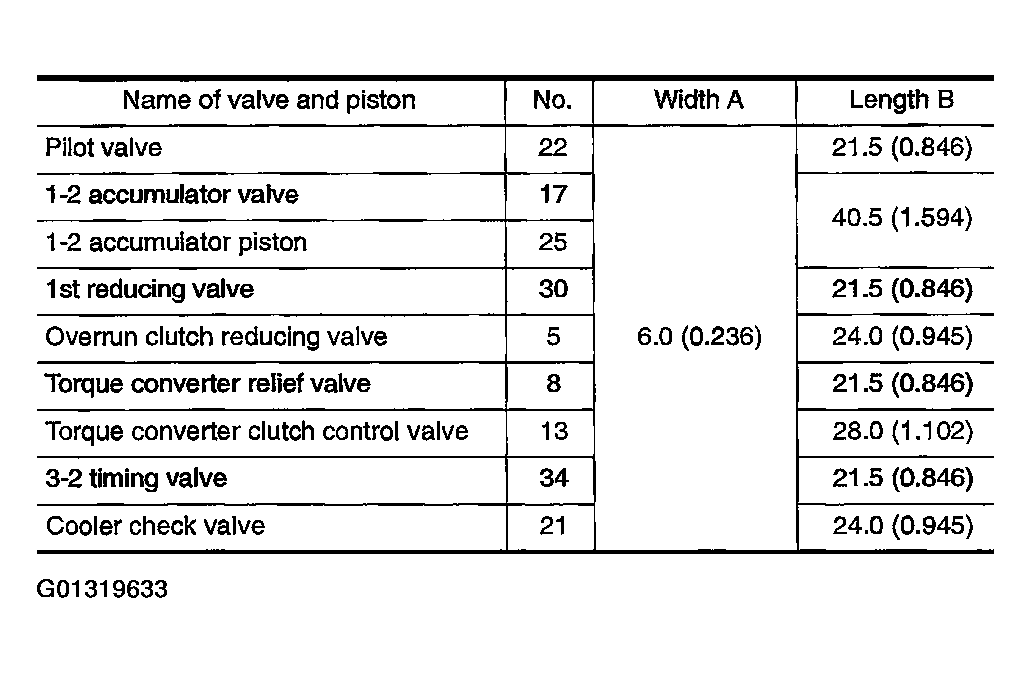

Fig 1: Valve And Piston Length, Width Specification
G01319633Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Valve Width
G01319634Courtesy of NISSAN MOTOR CO., U.S.A.
